VENT-FREE PROPANE/LP GAS HEATER
BLUE-FLAME
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Heater
1. Turn control knob clockwise
to the PILOT position.
2. Press in control knob and turn clock-
wise
to the OFF position.
3. Turn off all electric power to the ap-
pliance if service is to be performed.
Shutting Off Burner Only (pilot
stays lit)
Turn control knob clockwise to
the PILOT position.
MANUAL LIGHTING
PROCEDURE
1. Remove front panel (see Figure 6,
page 8).
2. Follow steps 1 through 5 under Light-
ing Instructions.
3. With control knob pressed in, strike
match. Hold match to pilot until pi-
lot lights.
4. Keep control knob pressed in for 30
seconds after lighting pilot. After 30
seconds, release control knob. Now fol-
low step 8 under Lighting Instructions.
5. Replace front panel.
LIGHTING
INSTRUCTIONS
OPERATING
HEATER
Continued
CAUTION: Do not try to ad-
just heating levels by using the
equipment shutoff valve.
1. STOP! Read the safety information
on page 11, column 3.
2. Make sure equipment shutoff valve
is fully open.
3. Turn control knob clockwise
to the OFF position.
4. Wait five (5) minutes to clear out any
gas. Then smell for gas including near
the floor. If you smell gas, STOP! Fol-
low “B” in the safety information on
page 11, column 3. If you don’t smell
gas, go to the next step.
5. Press in control knob and turn coun-
terclockwise
to the PILOT
position. Keep control knob pressed
in for five (5) seconds (see Figure 16).
Note: You may be running this
heater for the first time after hook-
ing up to gas supply. If so, the con-
trol knob may need to be pressed in
for 30 seconds. This will allow air to
bleed from the gas system.
• If control knob does not pop up
when released, contact a qualified
service person or gas supplier for
repairs.
6. With control knob pressed in, push
down and release ignitor button. This
will light pilot. The pilot is attached
to the front of burner. The burner
and pilot are located behind the heat
shield. If needed, keep pressing igni-
tor button until pilot lights.
Note: If pilot does not stay lit, refer
to Troubleshooting, pages 14 through
16. Also contact a qualified service
person or gas supplier for repairs.
Until repairs are made, light pilot
with match. To light pilot with match,
see Manual Lighting Procedure.
7. Keep control knob pressed in for 30
seconds after lighting pilot. After 30
seconds, release control knob.
Note: If pilot goes out, repeat steps
3 through 7.
8. Turn control knob counterclockwise
to the LOW position. The
main burner should light. Set control
knob to any heat level between HIGH
and LOW. To turn control knob from
LOW to a higher setting, press in the
control knob and turn counterclock-
wise
.
Note: Both HIGH and LOW are
locked positions. You must press in
control knob before turning it from
these positions.

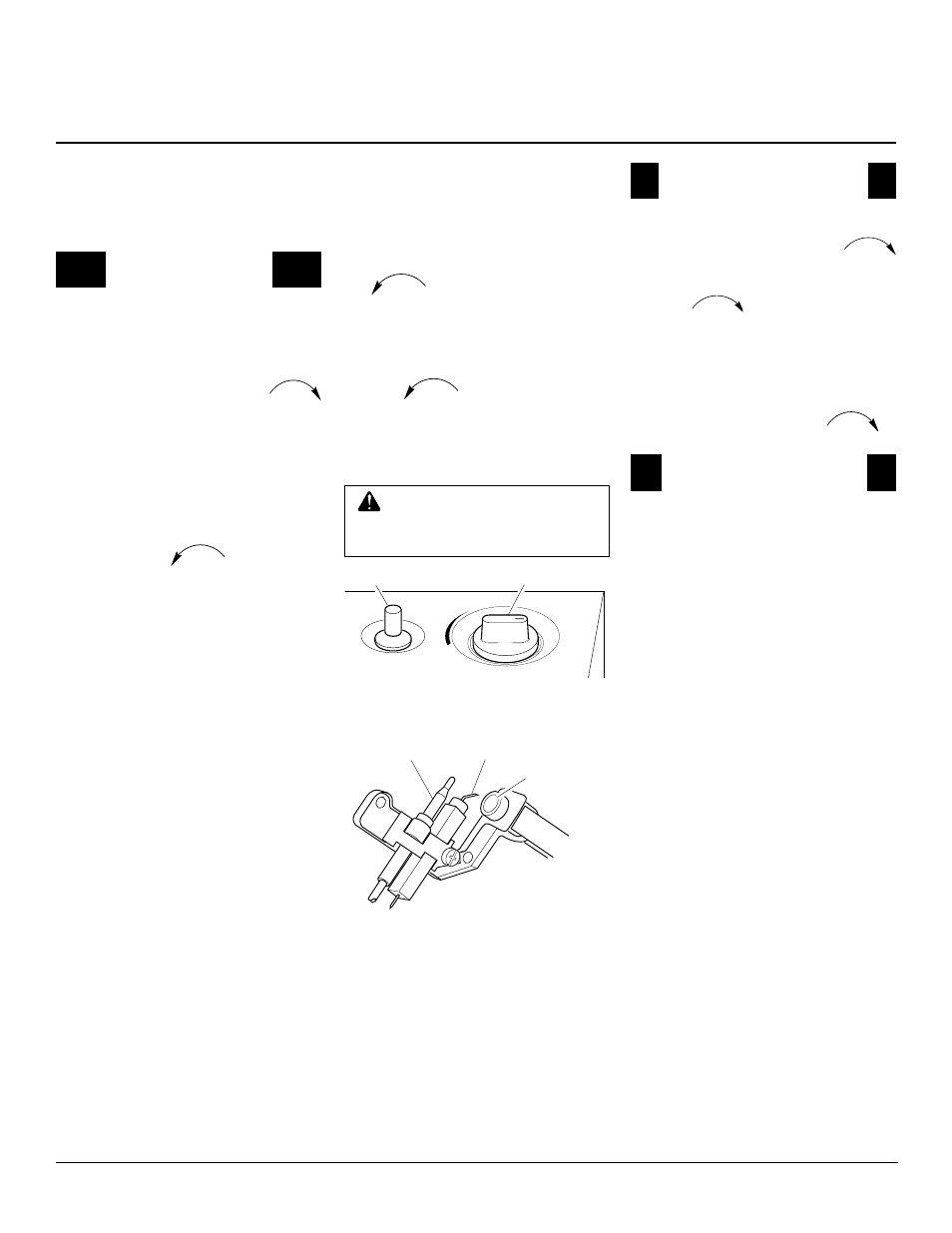

Figure 16 - Control Knob In The OFF
Position
OFF
HIGH
PILOT LOW
IGNITOR
Ignitor Button Control Knob
Figure 17 - Pilot
Thermocouple
Pilot Burner
Ignitor Electrode
