Foxconn N570SM2AA-8EKRS2H - Manual (Page 17)

Chapter 2 Installation Instructions
10

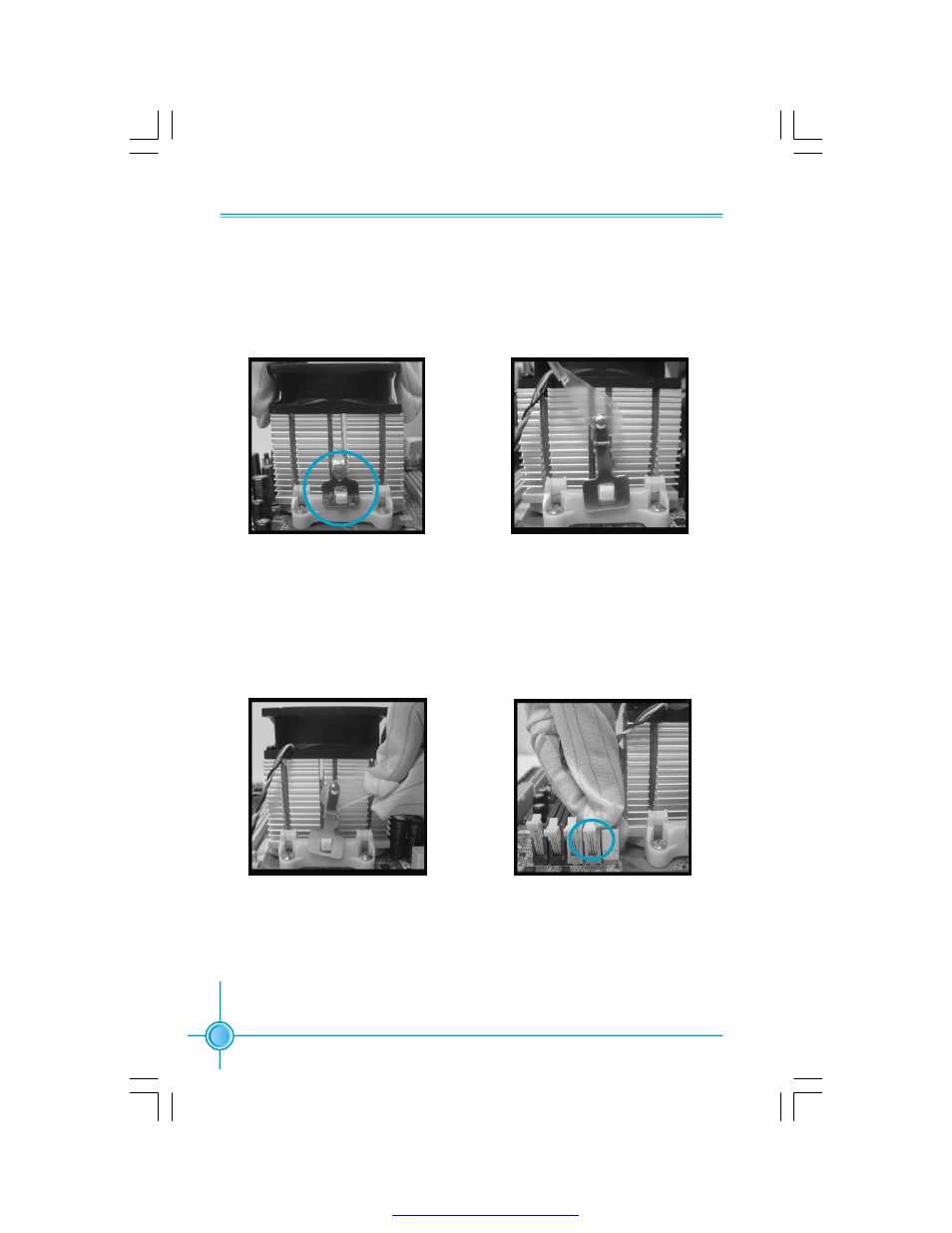

4. Align the other end of the reten-
tion bracket to fasten the cooling
set on the top of the retention
mechanism. 3. Place the cooling set onto the re-
tention mechanism. Attach one end
of the retention bracket to retention
mechanism.
5.Push down the retention bracket
lock on the retention mechanism
to secure the heatsink and fan to
module base.
6. Connect the fan’s power cable to
the appropriate 4-pin terminal on the
motherboard.
