Chapter 4. Hardware Installation

A.

Connecting DVR to Your TV Set

(1)

Video Input/Output Connection (For TV monitor screen display)

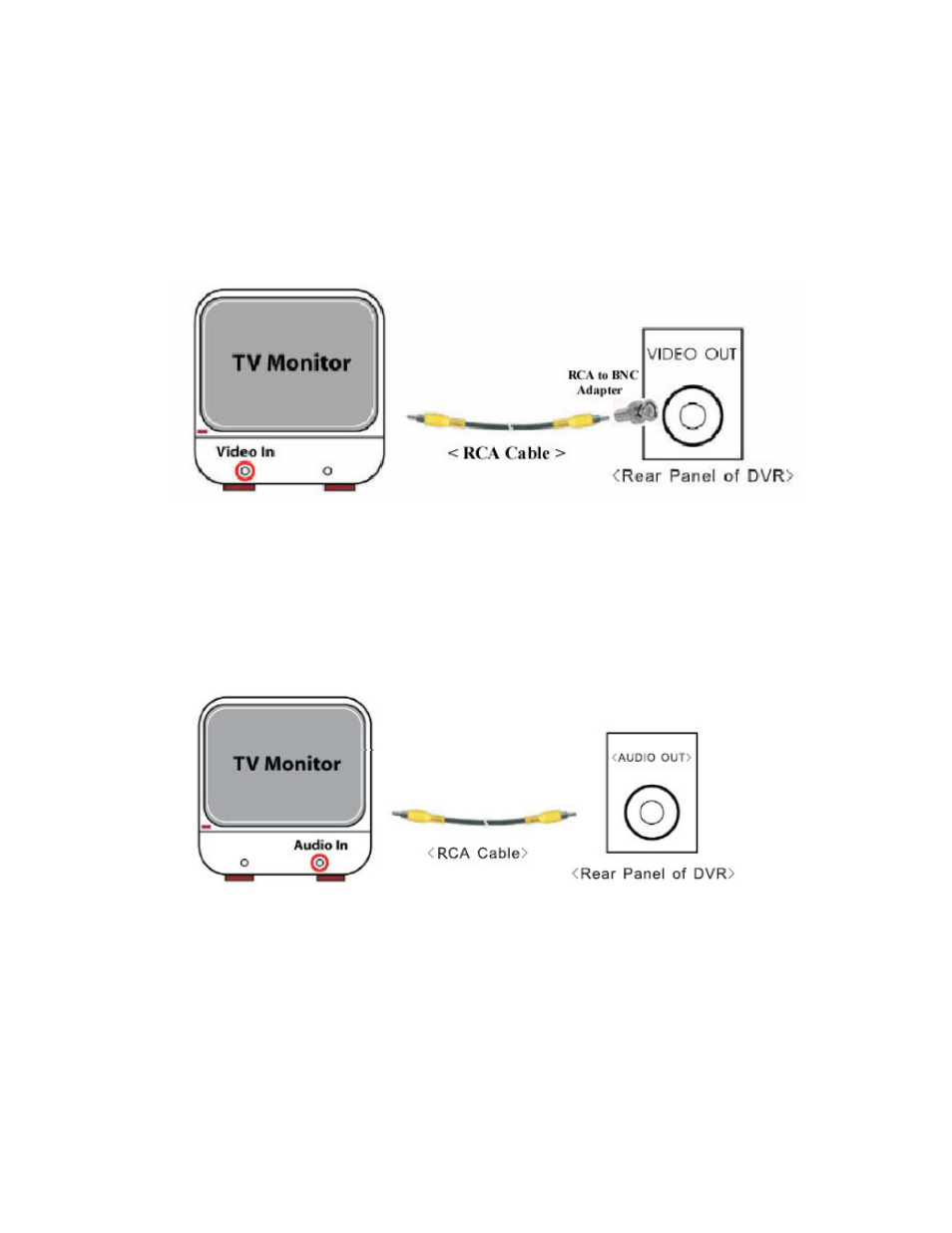

Any TV set that has a “RCA Video Input” terminal is suitable for displaying the

picture. The figure below shows the video signal line connection.

<“Video in” on TV>

Using a RCA cable, connect “VIDEO IN” on your TV to “VIDEO OUT ” on the

rear panel of the DVR.

Notice: You need to purchase a RCA cable separately for connecting to the

Video In port on the TV. A RCA female to BNC male adapter is provided for

connecting the cable to the Video Out port of the DVR.

(2)

Audio Input/output connection(For TV speaker)

<“Audio in”of TV>

Using an RCA cable, connect “AUDIO IN” of your TV to “AUDIO OUT” port

on the rear panel of the DVR.

Notice: You need to purchase a RCA cable separately for connecting to the

Audio In port on the TV.

-6-
