Hardware Description

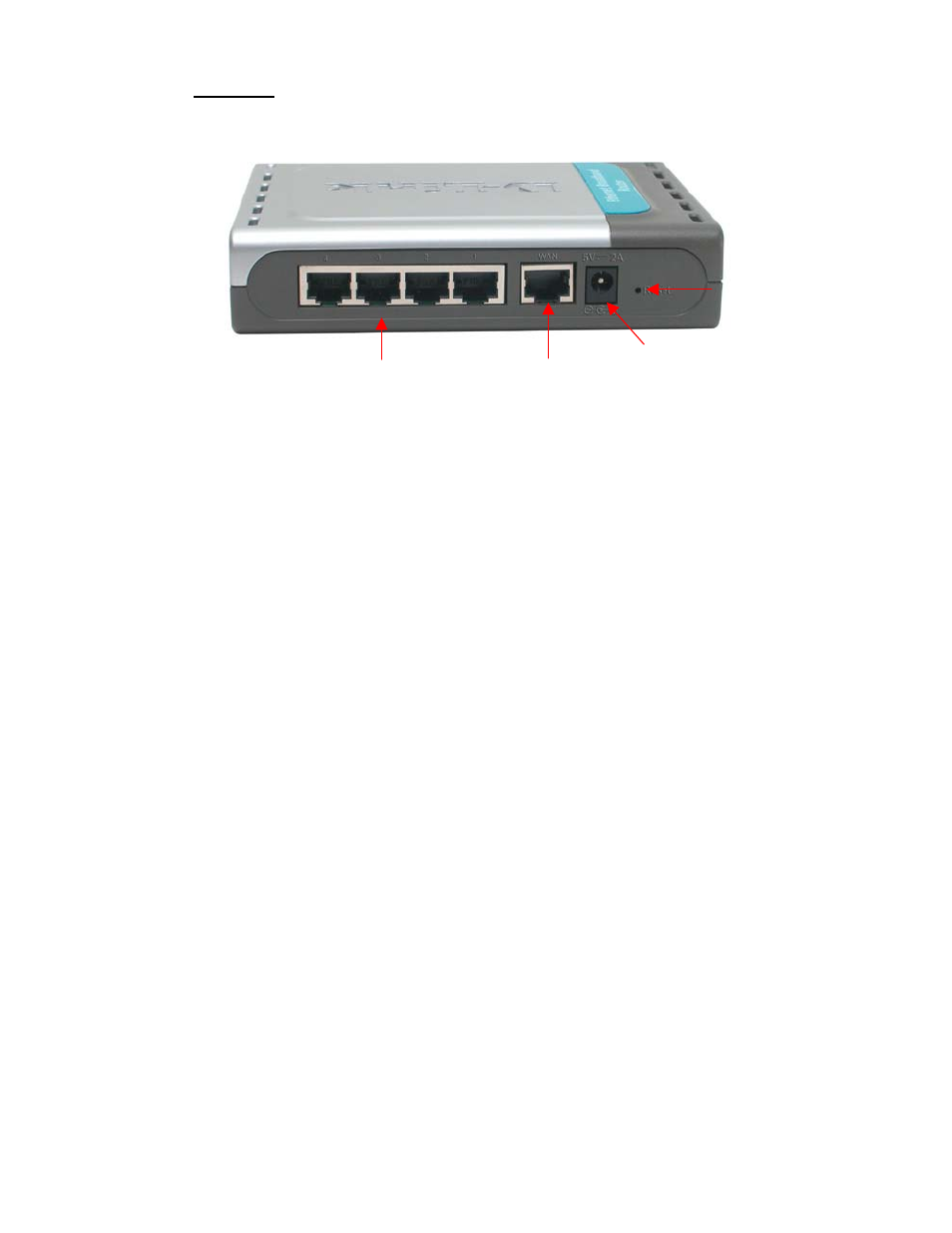

Rear Panel
Reset Used to restore the DI-604 back to factory default settings.
LAN
PORTS
1-4 LAN port sockets (CAT5 Ethernet RJ-45 cable). The LED
glows steadily when a port is connected to a hub, switch or
network-adapter-equipped computer in your local area network
(LAN.)
WAN WAN port socket (CAT5 Ethernet RJ-45 cable). This is where
you will connect your Cable or DSL modem.
Power Connect one end of your included power adapter to the power
port and the other end into your power outlet.
Reset
To reset the system settings to factory defaults, please follow these steps:
1. Leave the device powered on, do not disconnect the power
2. Press the reset button and hold (use a paper-clip)
3. Keep the button pressed about 10 seconds
4. Release the button
The DI-604 will then automatically reboot itself.
