Flowserve 5000 Positioner Automax Valve Automation Systems - Manual (Page 6)

© 2011, Flowserve Corporation, Printed in USA
FCD AXAIM0030- 01 (LMR0004-0) (AUTO-30) 03/ 11
3-Position Control/Dribble Control
SR Limit Switch Method
Automax Valve Automation Systems
Installation, Operation and Maintenance Instructions
Flowserve Corporation 1350 N. Mountain Springs Parkway 1978 Foreman Dr.
Flow Control Division Springville, Utah 84663-3004 Cookeville, TN 38501
www.flowserve.com Phone: 801 489 2233 Phone: 931 432 4021
Item Part # Description
1 Housing 1
2 XA0092 Balance Beam Assembly 1
2A Hinge Spring
2B Feedback Spring
3 XM0121 Hinge Spring Block 1
4 XM0112 Hinge Spring Nut 1
5 X00462 6-32 x 7/8 FHS 2
6 XA0089 Spool Valve Assembly (HF) 1
(LF - XA0091; MF - XA0103)
7 X00452 Spool Valve Gasket 1
8 X00449 Spool Clip 1
9 101920 8-32 x 3/4 RHS 2
10 X00444 Signal Diaphragm 1
11 X00245 Diaphragm Washer 2
12 X00465 Seal Screw 1
13 X00428 Diaphragm Cover 1
14 105330 6-32 x 1/2 PHS 4
15 103603 O-Ring 2
16 XM0105 Manifold 1
17 X00257 8-32 x 5/8 PHS 4
No.
Req’d
Bill of Material
N0.
Item Part # Description Req’d
18 X00461 8-32 x 1/4 PHS 1
19 XA0093 Gain Adjustment Asmbly. 1
20 XM0122 Gain Adjstmt. Slide Pin 1
21 XA0100 Zero Arm Assembly 1
21A Zero Adjustment Screw
21B Jam nut (1/4 - 28)
22 X00474 Washer 2
23 X00471 E-Clip 2
24 XA0090 Span Arm Assembly 1
24A Pinion
24B Lockscrew
25 XM0106 Shaft (Standard) 1
26 X00455 Snap Ring 1
26A X00625 Snap Ring 1
27 XM0077 Cam (Linear) 1
28 102476 Jam Nut (3/8 x 16) 1
29 X00359 Flat Rotor OPT
30 SPCF Flat Cover Assembly OPT
30A X00457 O-Ring 1
30B X00456 Cover Screw 4
30C X00454 Washer 4
31 SPCP Pharos Cover Assembly OPT
31D 102258 O-Ring 1
31E SXLROTOP Pharos Rotor 1
31F 104010 Pharos Dome 1
32 X00121 Pharos Adapter OPT
33 X00464 Vent Screen 1
34 X00463 Conduit Plug 1
Page 6 of 8

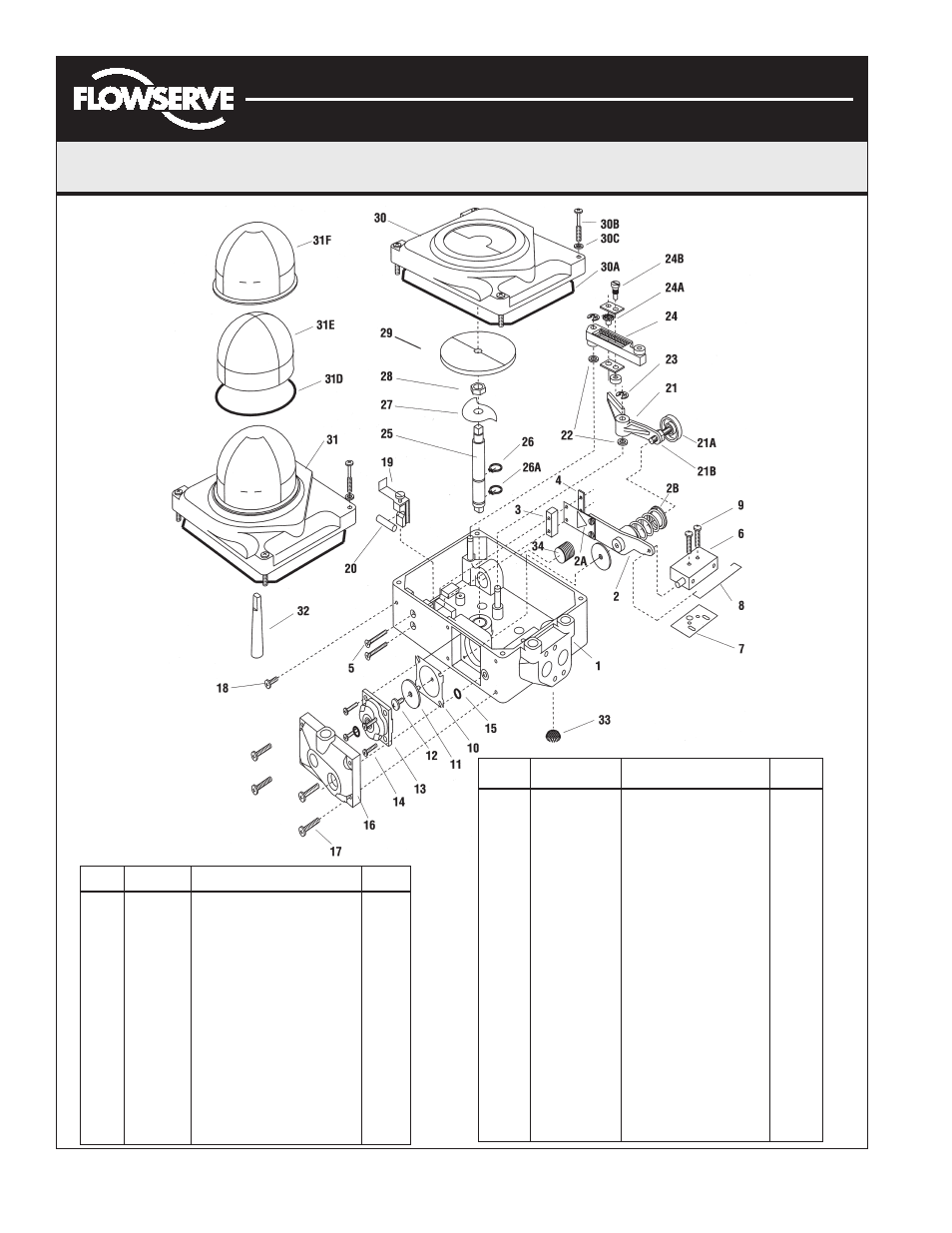

FIG. 2
