User Instructions - MaxFlo 3 - VLEEIM7001-03 07.07
5
Item 7 Packing box nuts
Item 09 Packing box studs
Item 80 Gland flange
Item 87 Packing follower
Item 4 Bonnet nuts
Item 08 Bonnet studs
Item 93 Packing spacer
Item 88 Packing set
Item 99 Packing stop
Item 40 Bonnet
Item 4 Purge plug (optional)
Item 58 Bonnet gasket
Item 46 Thrust bearing
Item 5 Shaft
Item 83 Shaft bearing
Item 50 Plug
Item 84 End post bearing
Item Body
Item 3 Shims
Item 0 Seat
Item 30 Seat retainer
Item 6 End post gasket
Item End post
Item 5 End post studs
Item 9 End post nuts


























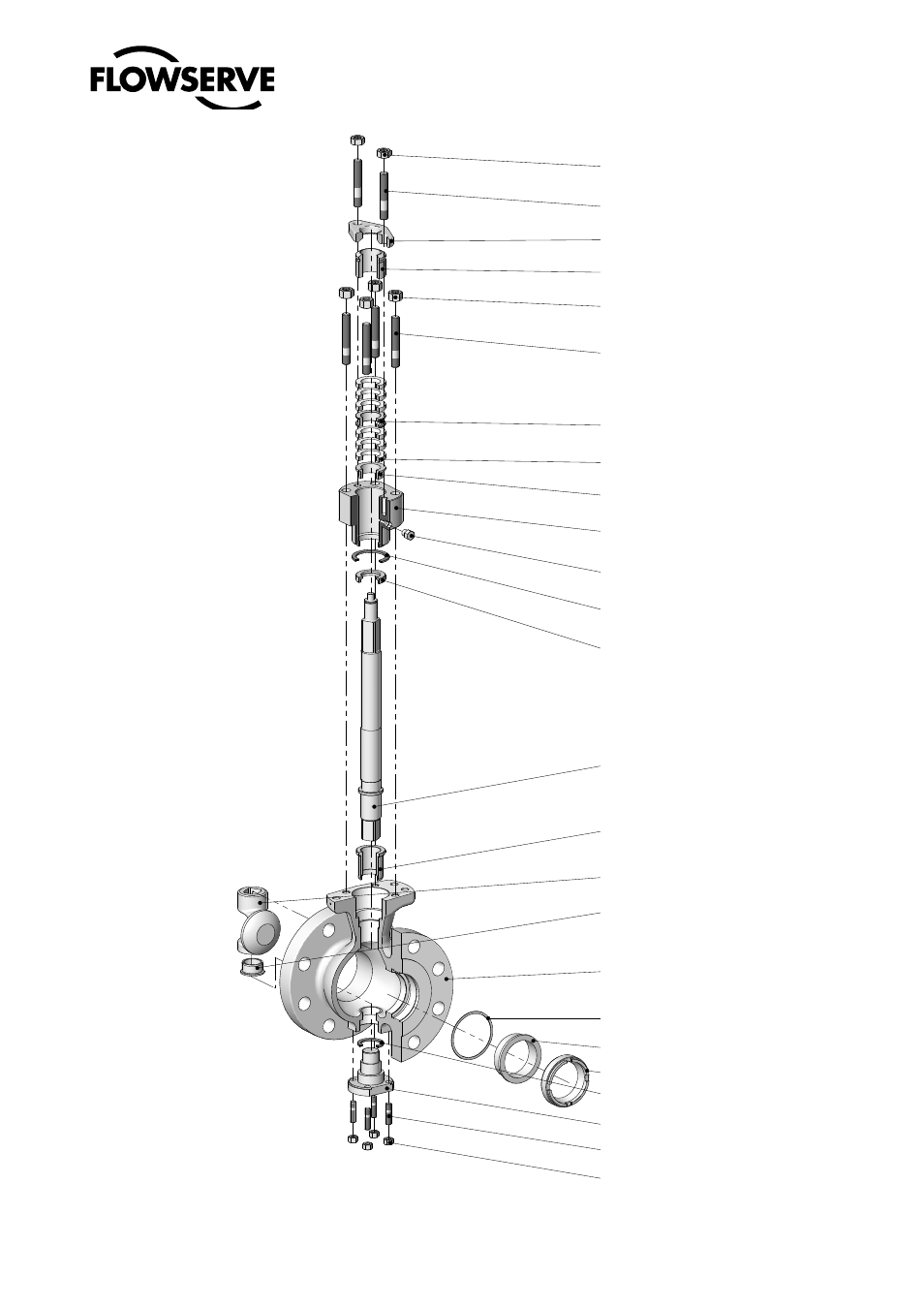

Figure 1: MaxFlo 3 valve body assembly
item numbers correspond directly to the valve’s bill of material. Refer
to it for specific part numbers.
