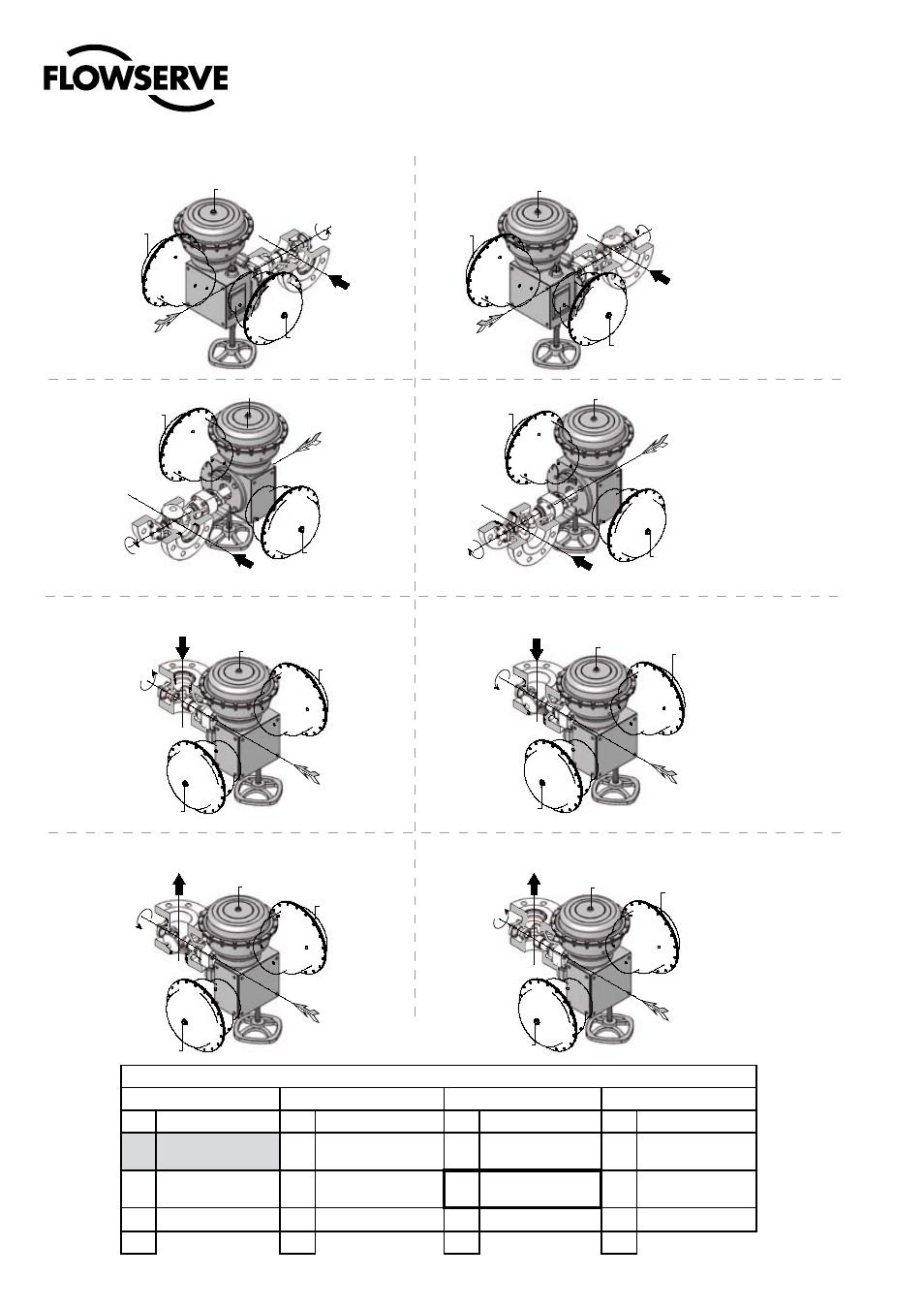

11. PIPELINE MOUNTING ORIENTATIONS – AIR-TO-CLOSE CONFIGURATION
Shaft downstream – Flow-to-open Shaft upstream – Flow-to-close
Horizontal Flow –
Left Hand Pipe Mounting
Horizontal Flow –
Right Hand Pipe Mount
-
ing
Vertical Flow –
Flow down
Vertical Flow –
Flow up
PIPE MOUNTING ORIENTATION CODES
3 - Air Action
4 - Configuration 5 - Actuator Mounting 6 - Action of fluid
O Air-to-Open - ATO L Left Hand Mounting L Left U Shaft upstream
C Air-to-Close - ATC R Right Hand Mount-
ing
R Right D Shaft downstream
D Flow down T Top
recommended
U Flow up
