6.0 DISASSEMBLY
(Continued)
6.2.2 Yoke: (Figs. 13 & 14)
Removal of the yoke will be simplified if the stem clamp (029) has been previously loosened. To loosen the
stem clamp, back out the set screw (220), raise the clamp on the stem and remove the stem clamp key
(255). The key should be set aside in a safe place for reassembly. To remove the yoke (011), unbolt the
capscrews (217) that fasten it to the bonnet (002).

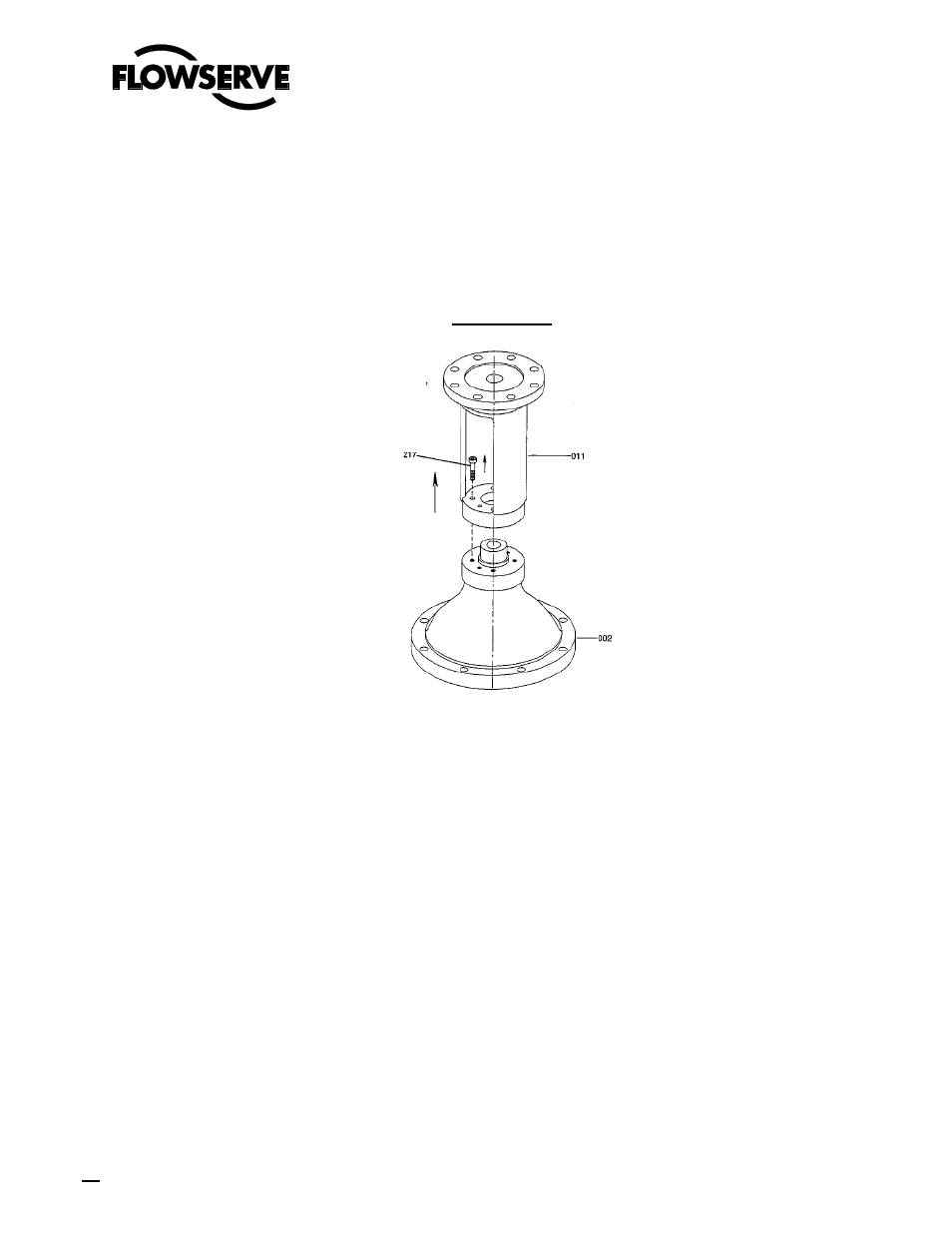

FIGURE 14
