Flowserve ValveAnalysis User Manual
Page 7
ValveAnalysis Diagnostic Software Module FCD VLENIM0113-01 – 1/06
flowserve.com
4
Tests

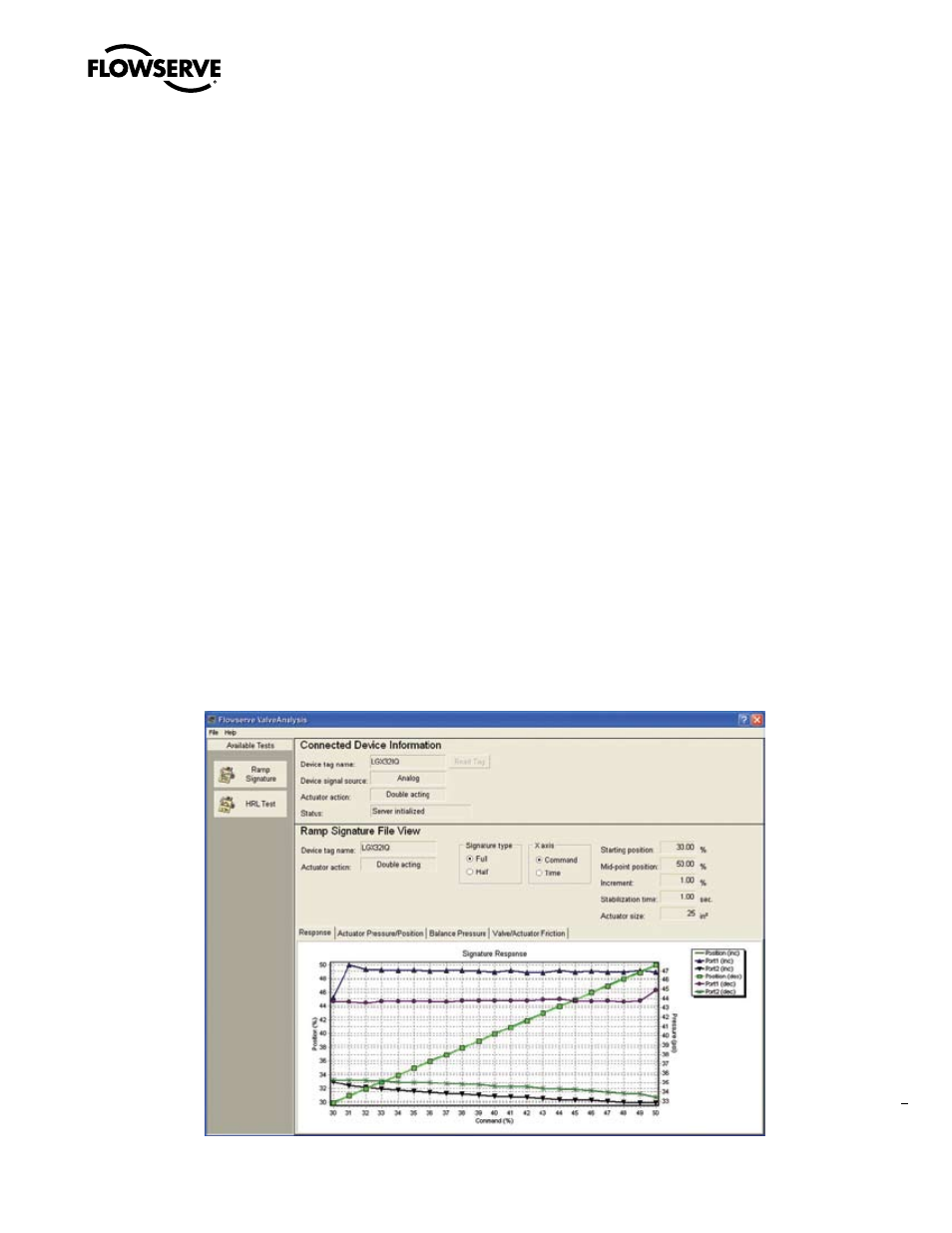

The tests available in Flowserve ValveAnalysis are listed as buttons on the left side of the screen under
Available Tests. This section describes these diagnostic tests: Ramp Signature and HRL. The desired
test is selected by clicking on the corresponding button. The lower part of the screen will then show the
information pane for the selected test.
4.1 Ramp Signature Test
