Flowserve Valtek Mark 200 User Manual

Page 13

Mark 200 Control Valve FCD VLENIM0200– 12/12

flowserve.com

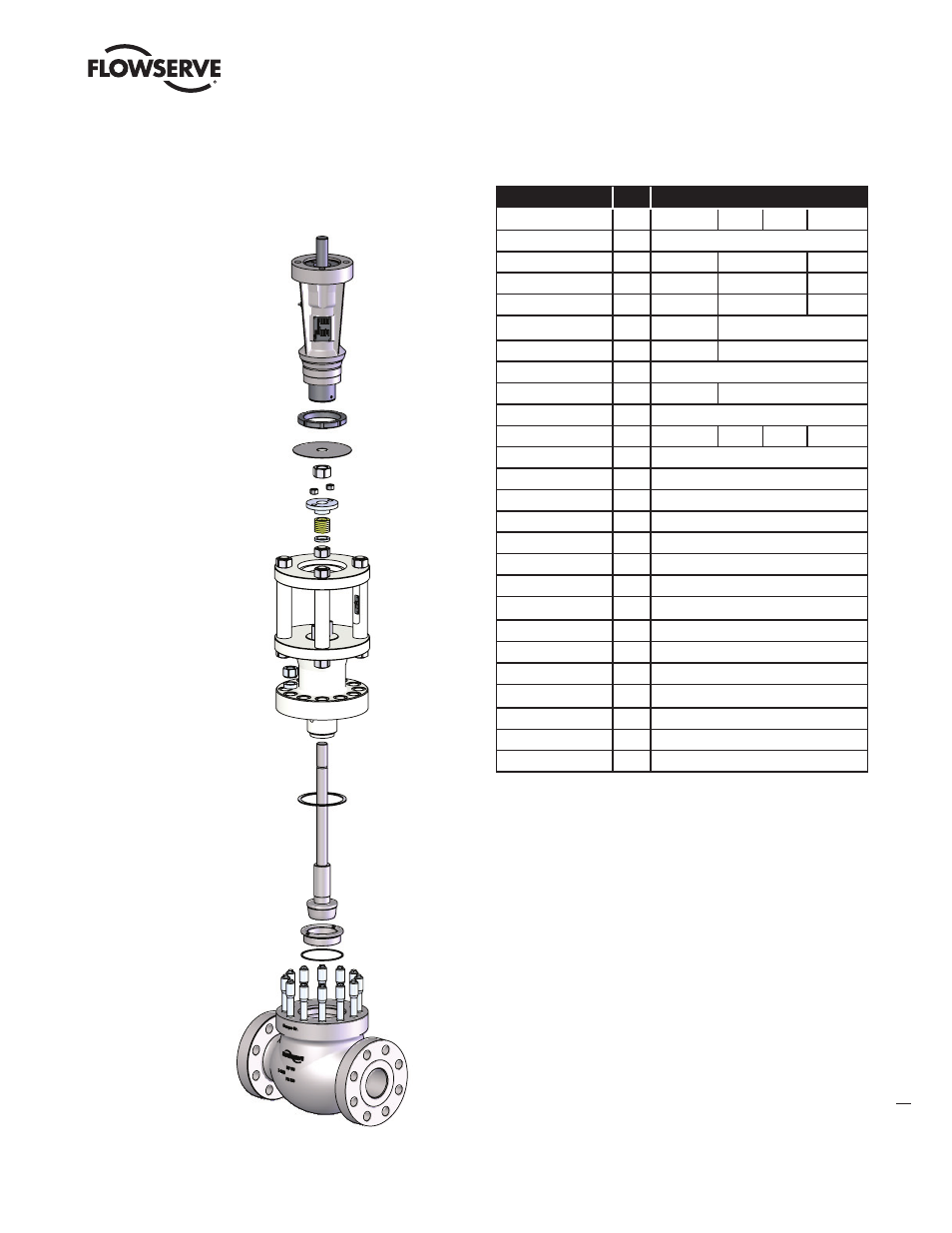

Figure 8 – Exploded drawing of a DIN Mark 200 with screwed-in seat ring; mounting shown for electric actuator

Linear Thrust Unit 12.5

Lock Nut 12.4

Stroke Indicator Disk 5.9

Hex Nut 5.7
Hex Nut 3.6

Gland Flange 3.4

Packing Box 3.3
Bottom Ring 3.2

Bonnet 3.1

Hex Nut 1.4

Extension Sleeve 1.5

Body Gasket 1.2

Trim 2.2 + 2.4

Screwed Seat 2.1

Seat Gasket 2.5

Stud Bolt 1.3

Body 1.1

Part

Item

Available Materials

Body

1.1

1.0619

1.5419 1.7357

1.7379

Bonnet Gasket

1.2

Pure Graphite on Support Plate from C-276

Stud Bolt

1.3

1.7218 (KG)

1.7709 (GA)

1.4923 (V)

Hex Nut

1.4

1.7218 (KG)

1.7709 (GA)

1.4923 (V)

Extension Sleeve

1.5

1.7218 (KG)

1.7709 (GA)

1.4923 (V)

Screwed Seat

2.1

1.4122

1.4922

Contoured Plug

2.2

1.4122

1.4922

Spring Pin

2.3

Stem

2.4

1.4122

1.4922

Profil Ring

2.5

Pure Graphite

Bonnet

3.1

1.0460

1.5415 1.7335

1.7383

Bottom Ring

3.2

1.4922

Packing Box

3.3

Pure Graphite Rings

Gland Flange

3.4

1.4922

Stud Bolt

3.5

1.4923 (V)

Hex Nut

3.6

1.4923 (V)

Yoke Rod

5.1

1.4122

Flange

5.2

1.0460

Hex Nut

5.3

A2 - 70

Stroke indicator scale

5.4

Aluminium

Hex Bolt

5.5

A2 - 70

Washer

5.6

Hex Nut

5.7

A2 - 50

Stroke indicator Disk

5.9

1.0038

Threaded Ring

5.10

1.0460

Set Screw

5.11

45 H
