Fire Magic Custom Gourmet Unibody Series 12 & 13 - Manual (Page 3)

3

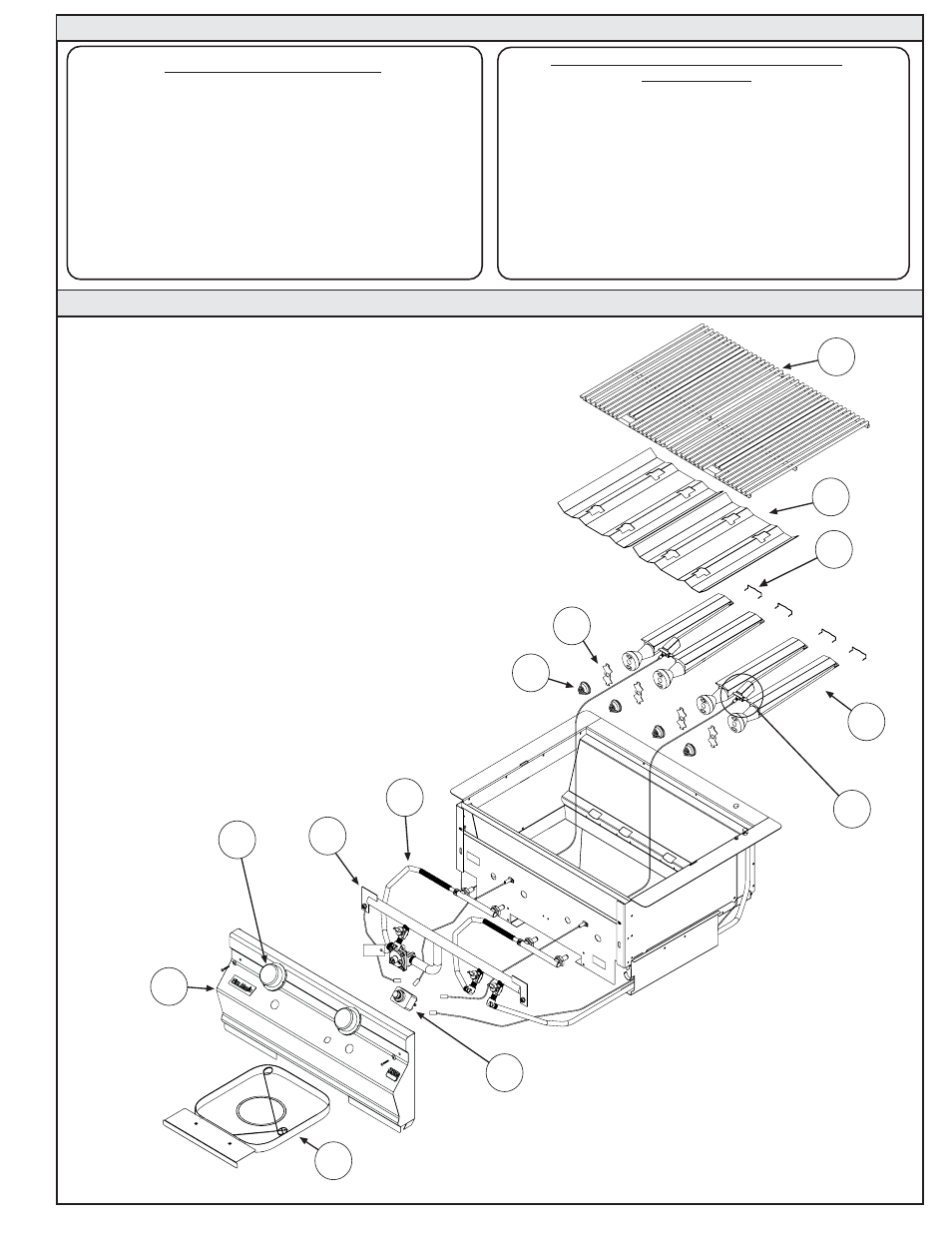

FIRE MAGIC CUSTOM I & II GOURMET UNIBODY GAS BARBECUE PARTS LIST
Robert H. Peterson Co. • 14724 East Proctor Ave. • City of Industry, CA 91746
TOOLS AND SUPPLIES REQUIRED FOR
INSTALLATION
• #2 (medium) Phillips screwdriver
• Two medium size adjustable wrenches
• One pair of pliers
• One flat blade screwdriver
• * 3/8" wrench or 3/8" socket screwdriver
• Pipe joint compound resistant to all gasses
• C.S.A.Approved Stainless Steel Flex Connector
( see top of page 8, Paragraph 4-a.)
*Note: 3/8" socket if orifice change is required.
TOOLS REQUIRED- CHECK LIST
SUPPLIED ITEM CHECK LIST
•Custom I or II Barbecue:
•Flavor Grids (2)
•Cooking Grids (2)
•Grill lifter (1)
•Match holder (1)
•Replacement Barbecue orifices (4)
•Wood chip box (1)*
•Backburner cover*
•Backburner Replacement Barbecue orifices (1)*
*For Custom I & II with Backburner only:
2
3
4
5
6
7
8
9
10
11
12
13
1 Item Description
1. PORCELAIN CAST IRON GRILL
or PORCELAIN STEEL
or STAINLESS STEEL
2.
FLAVOR GRID (2)
3. BURNER, STAINLESS STEEL (2)
4. BURNER, MANIFOLD ASSEMBLY (2)
5. VALVE MANIFOLD
6. CLIP, BURNER HOLD DOWN (2)
7. ELECTRODE ASSEMBLY w/WIRING
8. AIR SHUTTER, GAS BARBECUE (2)
9. SPRING, AIR SHUTTER (2)
10. IGNITOR ASSEMBLY
11. KNOBS, FIREMAGIC BARBECUE (2)
12. BLACK PORCELAIN, GOURMET FACE
or STAINLESS STEEL, GOURMET FACE
13.
DRIP TRAY ASSEMBLY
