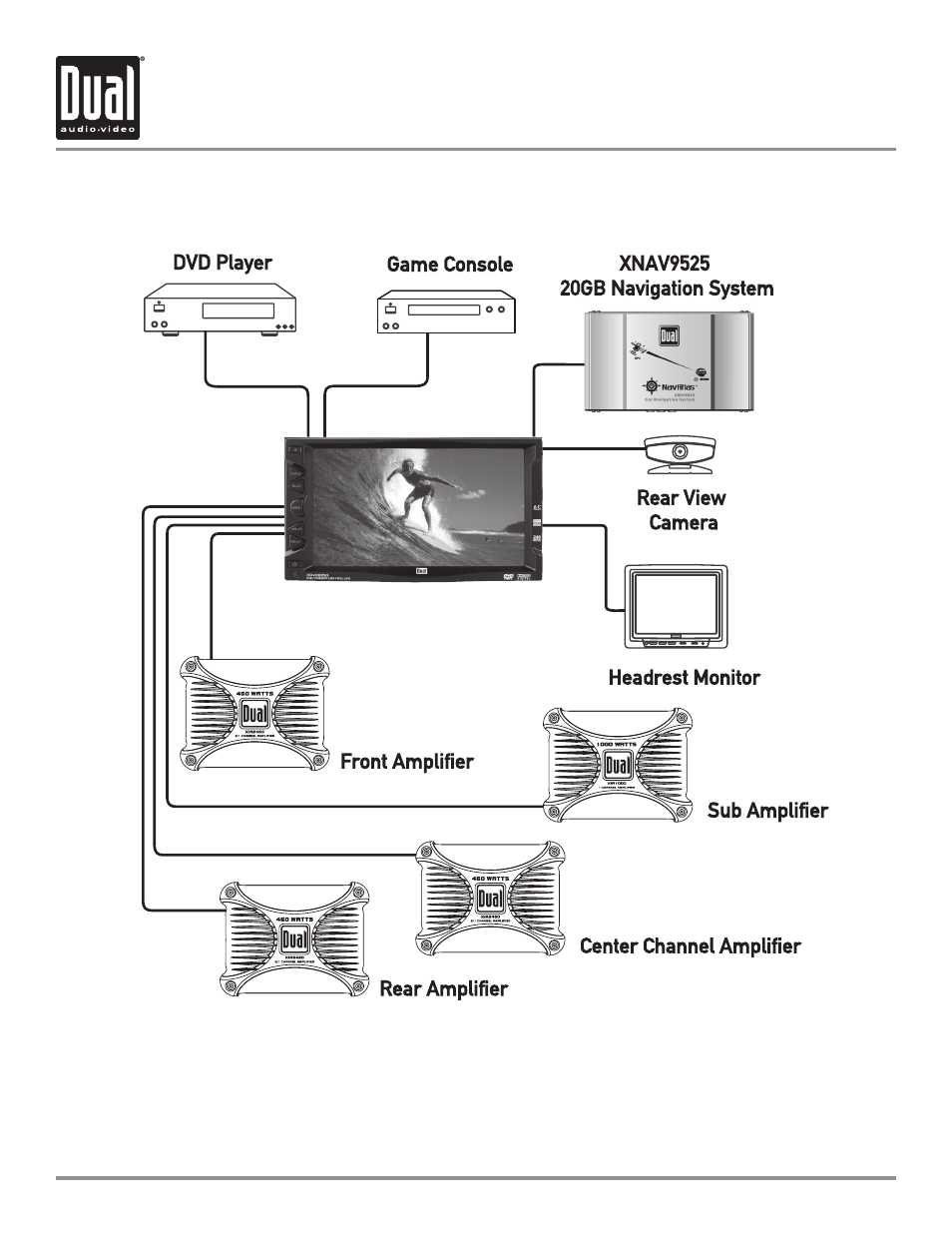

Wiring Diagram - Optional A/V Connections
The diagram above illustrates the connection capabilities of the XDVD8265. Two separate Audio/Video inputs
allow the connection of a DVD player or game console. A dedicated video output provides video signal for external
monitors while a rear view camera can be connected to provide assistance when backing up your vehicle. Visit
your local DUAL dealer for more details.
* All items shown above are optional and sold separately.
