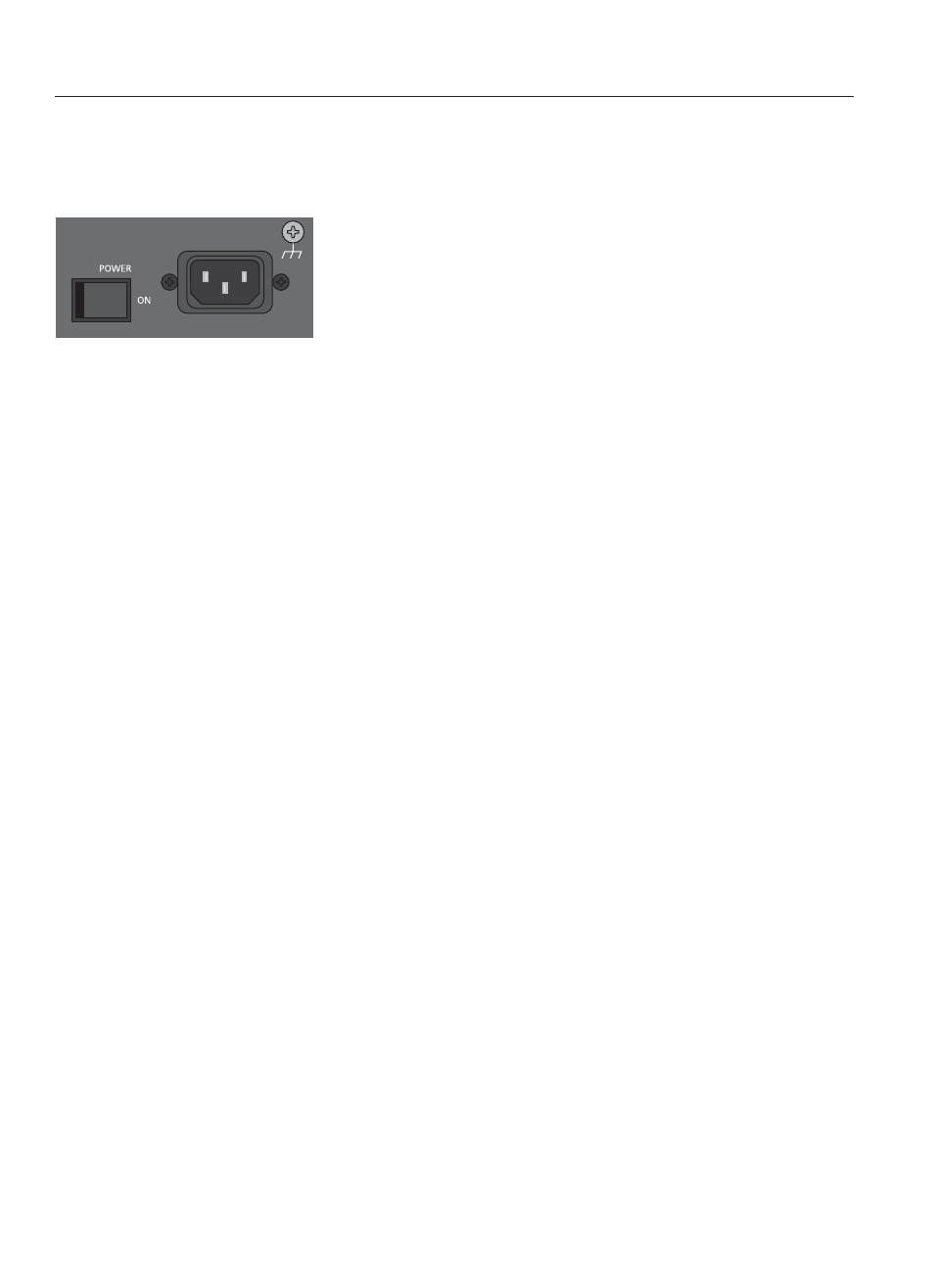

POWER
Mains switch to turn the CMS on or off.
The CMS is operational once the POWER LED lights and outputs are activated
through automatic switching of the output relays.
Please make sure to set the master faders to their minimum position or engage the
STANDBY switch before switching the power on. This will save you, your audience,
and the equipment from unnecessary stress from unwanted loud signals or even
worse from acoustic feedback.
Please, proceed in the following order when switching your equipment on:
1. power on any external device, like an external equalizer, etc.
2. power on the CMS
3. power on external power amps, like main amp and monitor amp.
When switching the power off, please proceed in the opposite order.

REAR PANEL

20
