Quad Amp Hardware Reference Manual
Installation
23

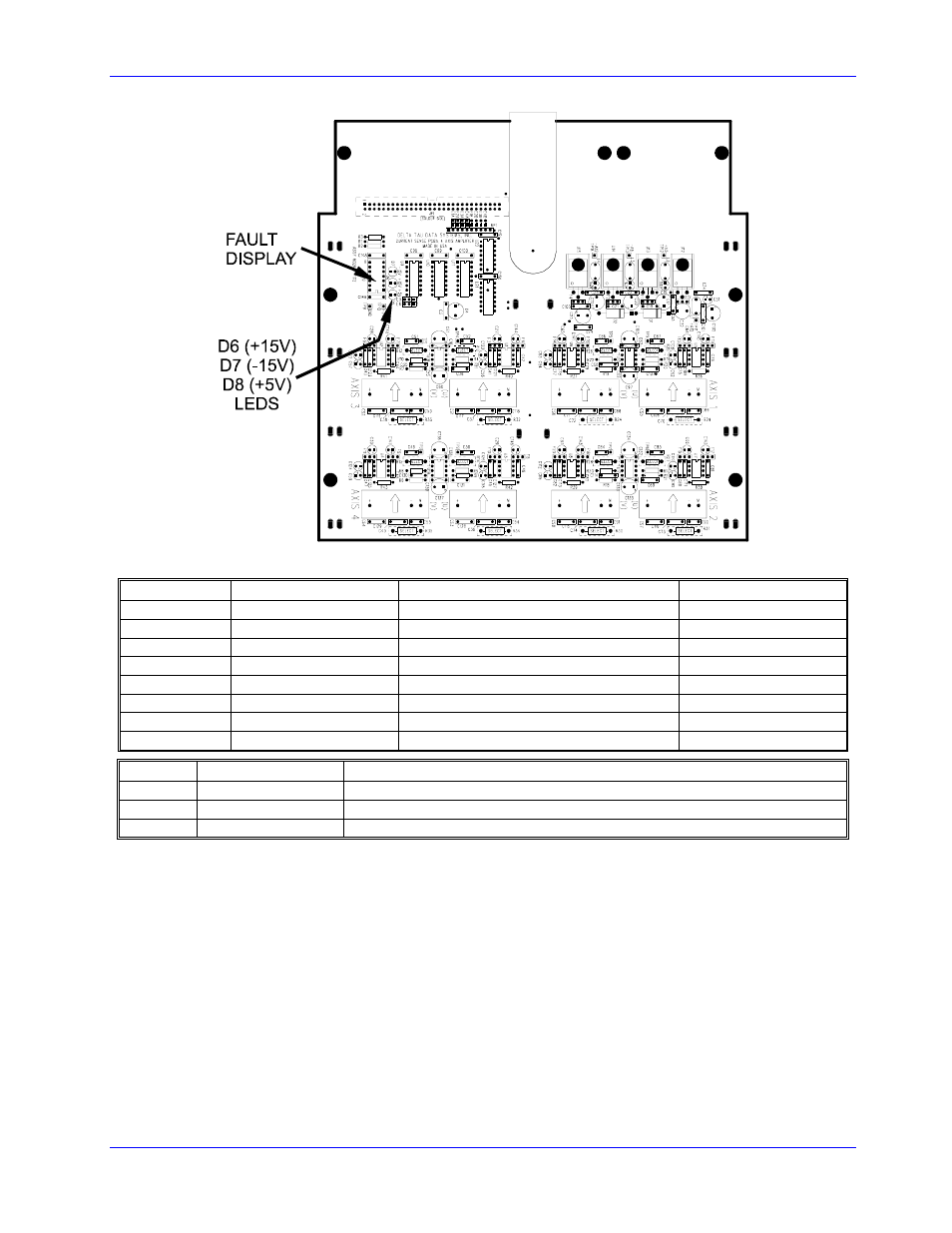

Figure 11 Current Sense Board Jumper and LED Locations
Name Position
Description
Default
E1A-E4A
IN
Enable Serial Fault Data, Phase A
Open
OUT
E1B-E4B
IN
Enable Serial Fault Data, Phase B
Open
OUT
E5
IN
Clock Polarity
2 and 3 Jumpered
OUT
E6
IN
Convert Polarity
2 and 3 Jumpered
OUT
LED Symbol
Description
D5
+ 5 V
On when + 5Vdc logic power is present
D6
+ 15 V
On when + 15Vdc logic power is present
D7
- 15 V
On when - 15Vdc logic power is present
