Page 40

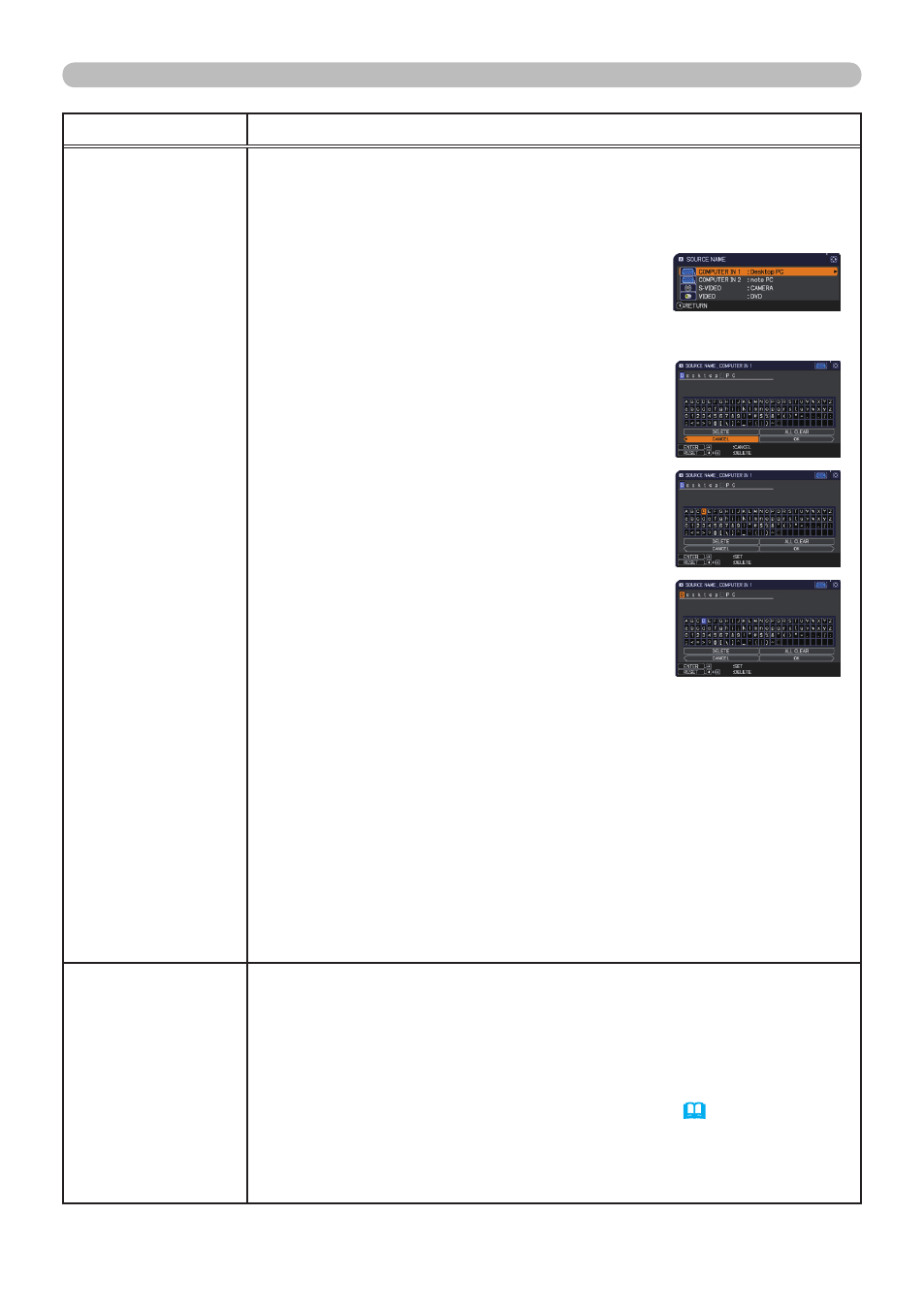

SCREEN menu

Item

Description

SOURCE NAME

Each input port for this projector can have a name applied to it.

(1) Use the ▲/▼ cursor buttons on the SCREEN menu to select the

SOURCE NAME and press the ► cursor (or the

ENTER) button.

The SOURCE NAME menu will be displayed.

(2) Use the ▲/▼ cursor buttons on the

SOURCE NAME menu to select the port

to be named and press the ► cursor

button. Right side of the menu is blank

until a name is specified.

The SOURCE NAME dialog will be

displayed.

(3) The current name will be displayed on

the first line. Use the ▲/▼/◄/► cursor

buttons and the

ENTER (or the INPUT)

button to select and enter characters.

To erase 1 character at one time, press

the

RESET (or press the ◄ cursor and

the

INPUT buttons at the same time)

button. Also if you move the cursor to the

DELETE or the ALL CLEAR on screen

and press the

ENTER (or the INPUT)

button, 1 character or all characters

will be erased. The name can be a

maximum of 16 characters.

(4) To change an already inserted character, press the ▲ cursor

button to move the cursor to the first line, and use the ◄/►

cursor buttons to move the cursor on the character to be

changed.

After pressing the

ENTER (or the INPUT) button, the character

is selected. Then, follow the same procedure as described at

the item (3) above.

(5) To finish entering text, move the cursor to the OK on screen

and press the ► cursor (or the

ENTER / the INPUT) button. To

revert to the previous name without saving changes, move the

cursor to the CANCEL on screen and press the ◄ cursor (or the

ENTER / the INPUT) button.

TEMPLATE

Using the ▲/▼ cursor buttons switches the mode for the template

screen.

Press the ► cursor (or the

ENTER) button to display the selected

template, and press the ◄ cursor button to close the displayed

screen.

The last selected template is displayed when the

MY BUTTON

allocated to the TEMPLATE function is pressed (44).

TEST PATTERN ó DOT-LINE1 ó DOT-LINE2 ó DOT-LINE3

 

MAP2 ó MAP1 ó CIRCLE2 ó CIRCLE1 ó DOT-LINE4

(continued on next page)
