Operating
• The MAGNIFY dialog will automatically disappear in several seconds with
no operation. The dialog will appear again if the MAGNIFY ON button is pressed
when the dialog has automatically disappeared.
• While the MAGNIFY dialog is displayed, press the MAGNIFY ON button to switch
the dialog between magnifying area shifting (with the triangles) and magnification
ratio adjustment (with the magnifying glass icon).
• The magnification is automatically disabled when the displaying signal or its
display condition is changed.
• While the magnification is active, the keystone distortion condition may vary. It will
be restored when the magnification is disabled.
• Some horizontal stripes might be visible on the image while magnification is active.
NOTE
1. Press the MAGNIFY ON button on the remote control. The
picture will be magnified, and the MAGNIFY dialog will appear on
the screen. When the MAGNIFY ON button is pressed for the first
time after the projector is turned on, the picture will be zoomed by
1.5 times. On the dialog, triangle marks to show each direction
will be displayed.
Using the magnify feature
2.
3.
4.
5.
While the triangles are displayed on the dialog, use the ▲/▼/◄/►
cursor buttons to shift the magnifying area.
A magnifying glass icon will be displayed on the dialog when the
MAGNIFY ON
button is pressed while the dialog with the triangles is displayed.
While the magnifying glass icon is displayed on the dialog, use the ▲/▼ cursor
buttons to adjust the magnification ratio. The magnification ratio will be adjusted
with fine steps. And changes in the ratio in single steps are subtle so they may be
hard to recognize.
Press the
MAGNIFY OFF button on the remote control to exit magnification.

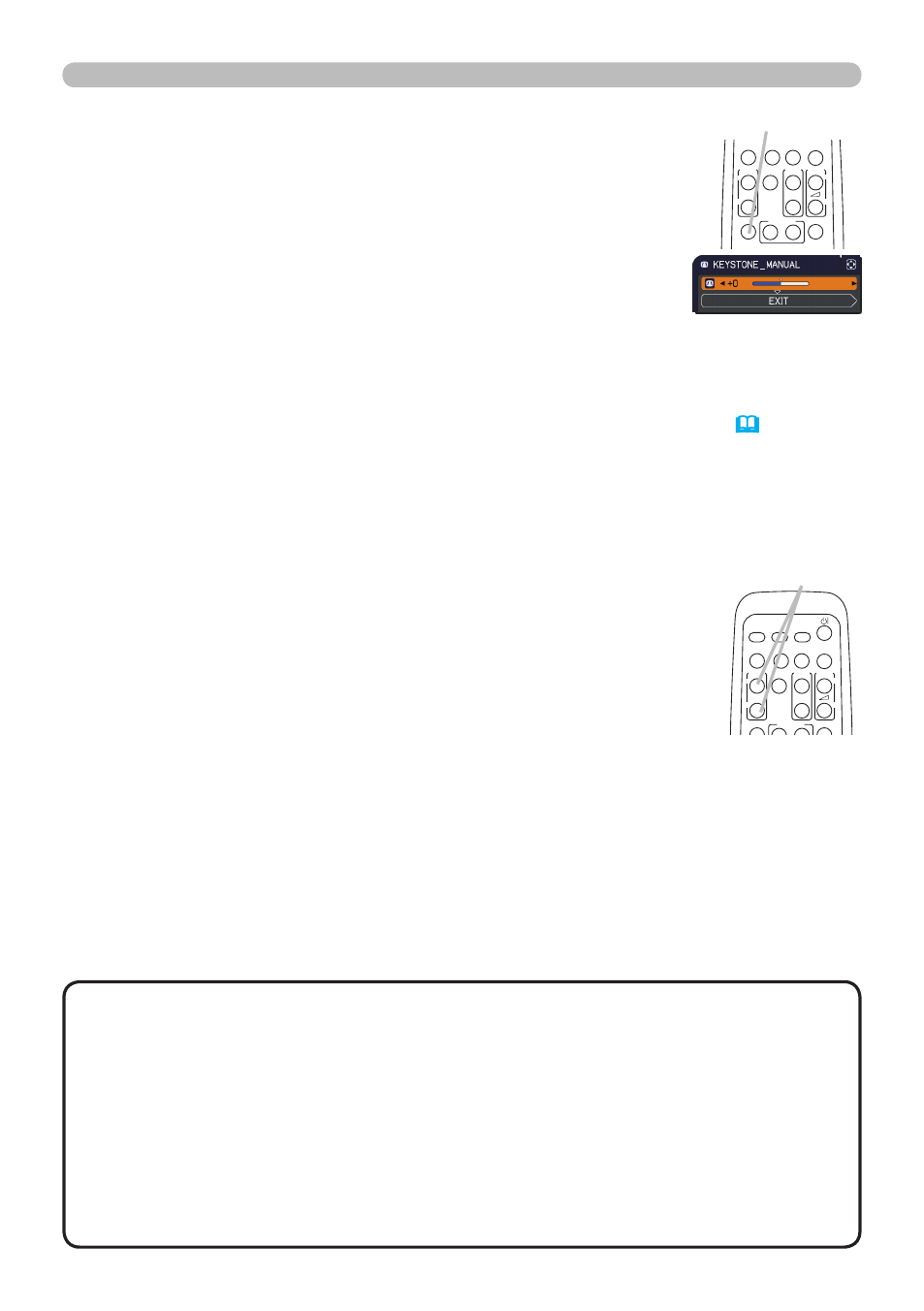

1. Press the KEYSTONE button on the remote control.
A dialog will appear on the screen to aid you in correcting the
distortion.
Correcting the keystone distortions
2. Use the ◄/► cursor buttons for adjustment.
To close the dialog and complete this operation, press the
KEYSTONE button again. Even if you do not do anything, the
dialog will automatically disappear after a few seconds.
● The adjustable range of this function will vary among inputs. For some input, this
function may not work well.
● When the projector is inclined to near ±6 degrees or over, this function may not
work well.
● This function will be unavailable when the Transition Detector is on (50).
● The on-screen menu might be displayed outside of the image display area
depending on the adjustment value of the ASPECT, D-ZOOM and KEYSTONE.
Changing the values of ASPECT, D-ZOOM and KEYSTONE may fix the symptom.
