Page 8
Scale Kit Mounting Installation – 12, 16 Row
6
Case IH Planter Scale
D3870-US Rev B

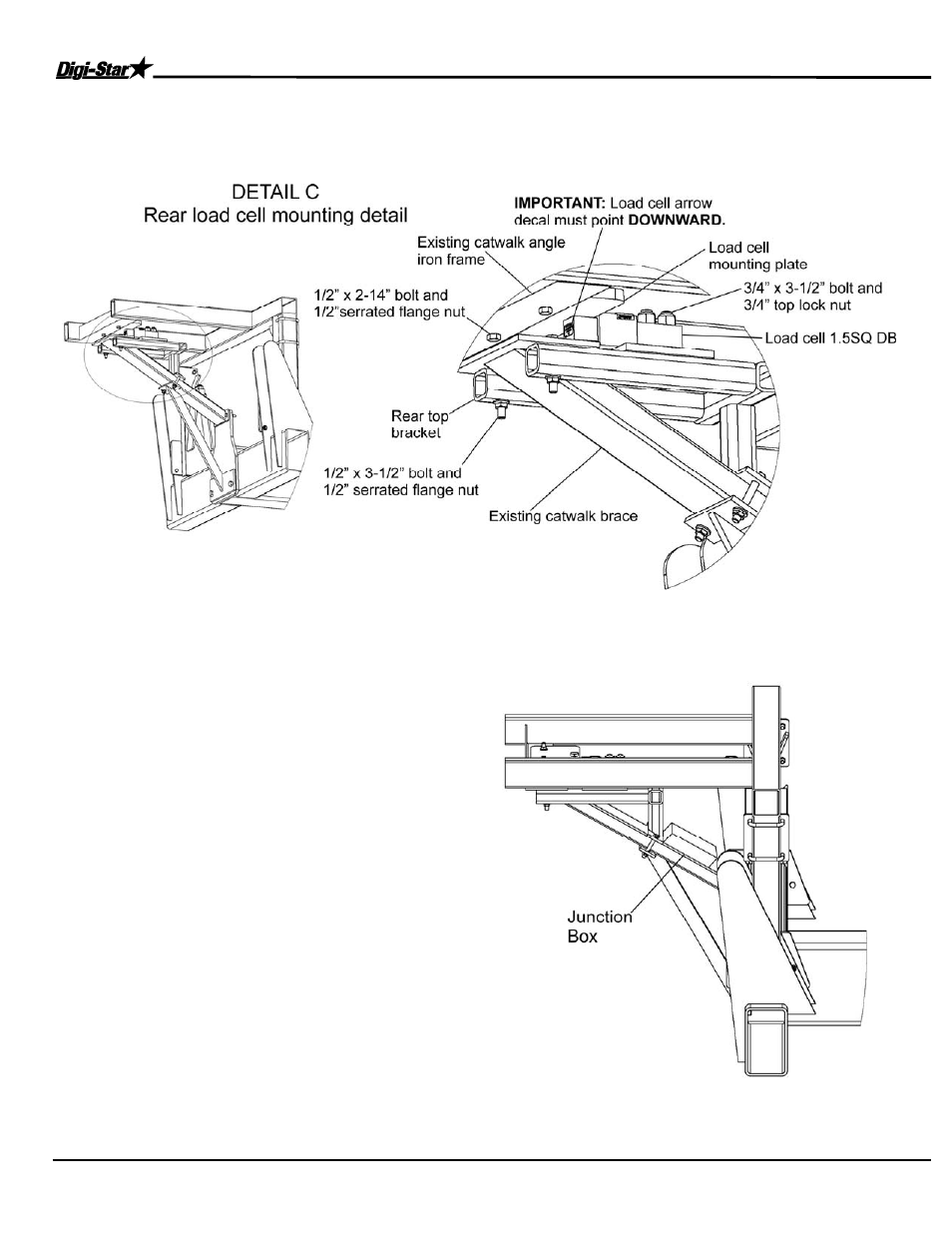

Rear Scale Mount Components
Junction Box
•
Clean the area thoroughly and let dry.
•
Peel the adhesive tape off and press on.
Press firmly for at least 30 seconds.
•
Run the wires from the weigh bars in a safe
spot where they cannot get pinched or
rubbed. If possible run the wires along with
other wires or hoses on the planter.
•
Mount the indicator on the rear catwalk
tubing where it is most convenient. Make
sure wires are protected from being
pinched or rubbed.
