30
Chapter 2 Hardware Installation
Chapter 2

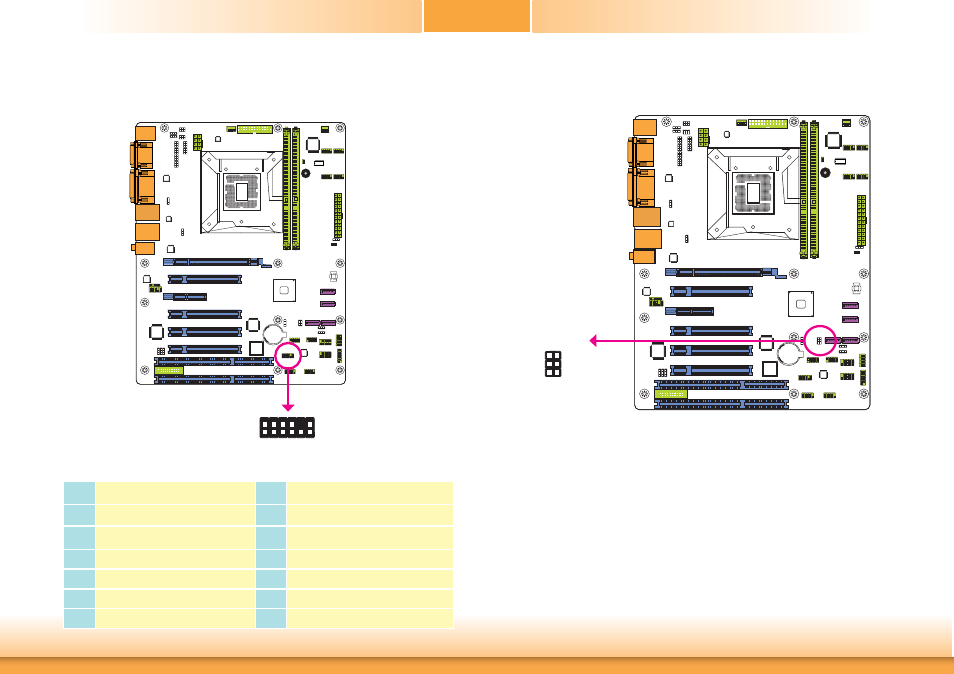

LPC Debug Port
2
1
12
11
The LPC connector is used for the debug function and its pin functions are listed below.
Pins Pin Assignment Pins Pin Assignment
1 CLK 2 LAD1
3 RST# 4 LAD0
5 FRAME# 6 VCC_+3V
7 LAD3 8 GND
9 LAD2 10 x
11 SERIRQ 12 48MHz
2 3
LPC Debug Port
SMBus Connector
The SMBus (System Management Bus) connector is used to connect the SMBus device. It is a
multiple device bus that allows multiple chips to connect to the same bus and enable each one
to act as a master by initiating data transfer.
2 3
SMBus
GND
NC
SMB_DATA SMB_CLK
SMB_ALERT
+3.3V_Standby
1 2
5 6
