USB Ports
The USB device allows data exchange between your computer and a wide range of simultane-
ously accessible external Plug and Play peripherals.

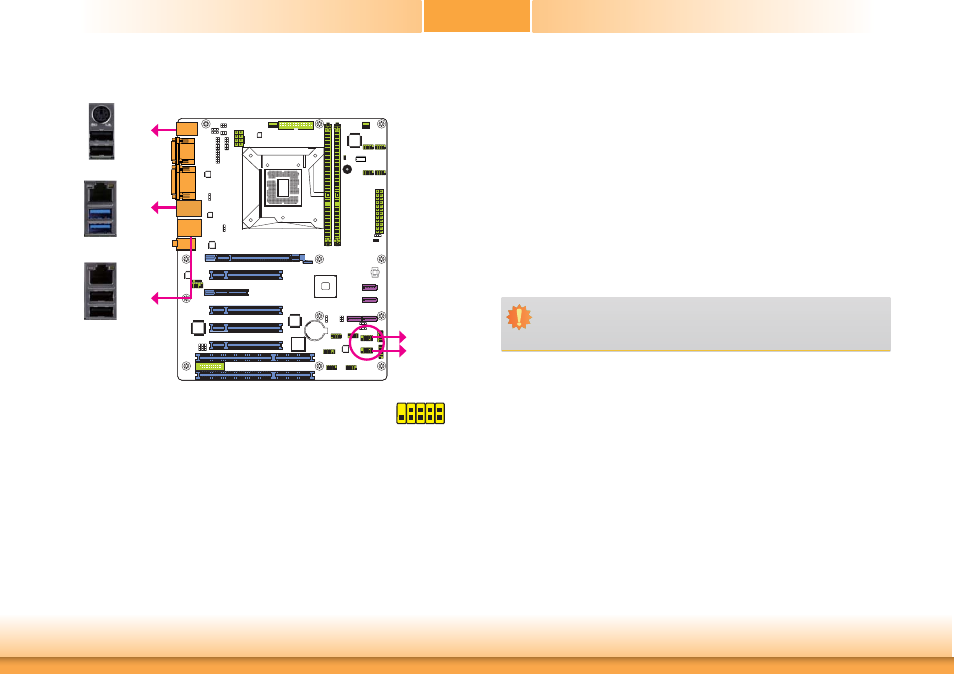

The system board is equipped with two onboard USB 3.0 ports (USB 0-1) and four onboard
USB 2.0 ports (USB 4-5/8-9). The 10-pin connectors allow you to connect 4 additional USB
2.0/1.1 ports (USB 2-3/10-11). The additional USB ports may be mounted on a card-edge
bracket. Install the card-edge bracket to an available slot at the rear of the system chassis and
then insert the USB port cables to a connector.
10
VCC -Data +Data GND Ke
y
VCC
-Data +Data
GND N. C.
9 1
2
USB 2.0
2 3
USB 2-3
USB 1
USB 0
USB 3.0
USB 5
USB 4
USB 2.0
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
+5V_standby power source of your power supply must support ≥1.5A. For 3 or more
USB ports, the +5V_standby power source of your power supply must support ≥2A.
BIOS Setting
Configure these onboard USB devices in the Advanced menu (“USB Configuration” submenu) of
the BIOS. Refer to the chapter 3 for more information.
Driver Installation
You may need to install the proper drivers in your system operation to use the USB device. Re-
fer to your operating system’s manual or documentation for more information.
Wake-On-USB Keyboard/Mouse
The Wake-On-USB Keyboard/Mouse function allows you to use a USB keyboard or USB mouse
to wake up a system from the S3 (STR - Suspend To RAM) state. To use this function:
• Jumper Setting
JP4, JP5, JP6 and JP8 must be set to “2-3 On: +5V_standby”. Refer to “USB Power Select” in
this chapter for more information.
USB 9
USB 8
USB 2.0
USB 10-11
