18
Chapter 2 Hardware Installation
Chapter 2

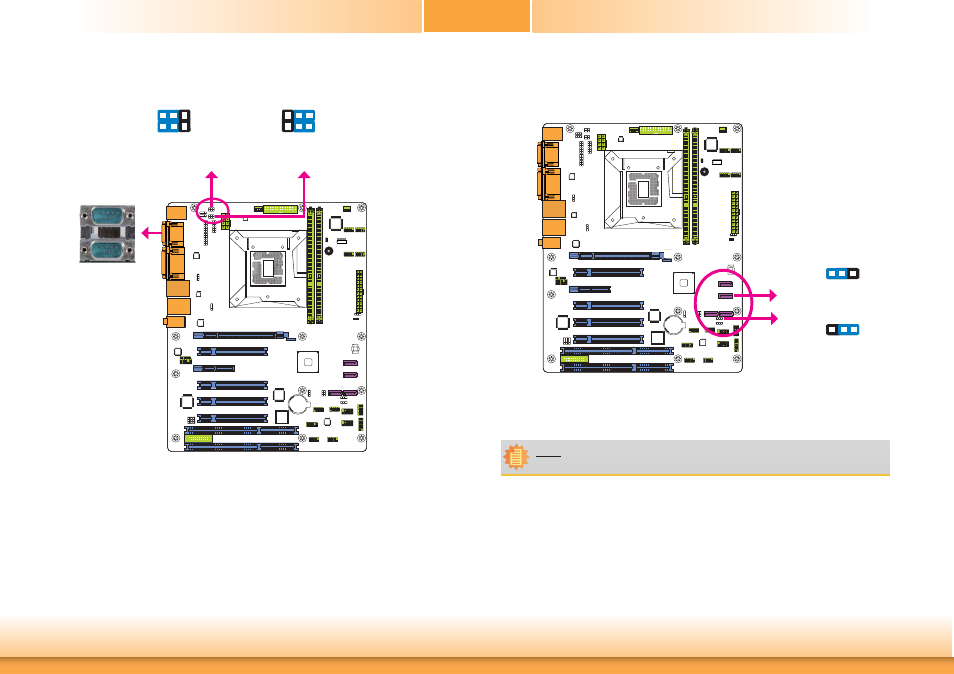

COM 1/COM 2 RS232/Power Select
1-3 (RI), 2-4 (DCD) On:
RS232 (default)
6 4 2
5 3 1
3-5 (+5V), 4-6 (+12V) On:
RS232 with power
JP14 (for COM 1) and JP15 (for COM 2) are used to configure Serial COM ports to pure RS232
or RS232 with power.
2 3
JP14 JP15
6 4 2
5 3 1
SATA DOM Power Select
2-3 On: +5V
1-2 On: GND
(default)
3 1 2
3 1 2 JP11
Note:
SATA port 1 provides adequate space for SATA DOM.
2 3
JP11 is used to select the power of SATA DOM.
SATA 1
COM 2
COM 1
