DFI HR900-B User Manual
Page 17
17
2
Hardware Installation
CPU
Overview
The system board is equipped with a surface mount rPGA 988B CPU socket.
Note:
The system board used in the following illustrations may not resemble
the actual one. These illustrations are for reference only.
Installing the CPU
1. Make sure the PC and all other peripheral devices connected to it has been
powered down.
2. Disconnect all power cords and cables.

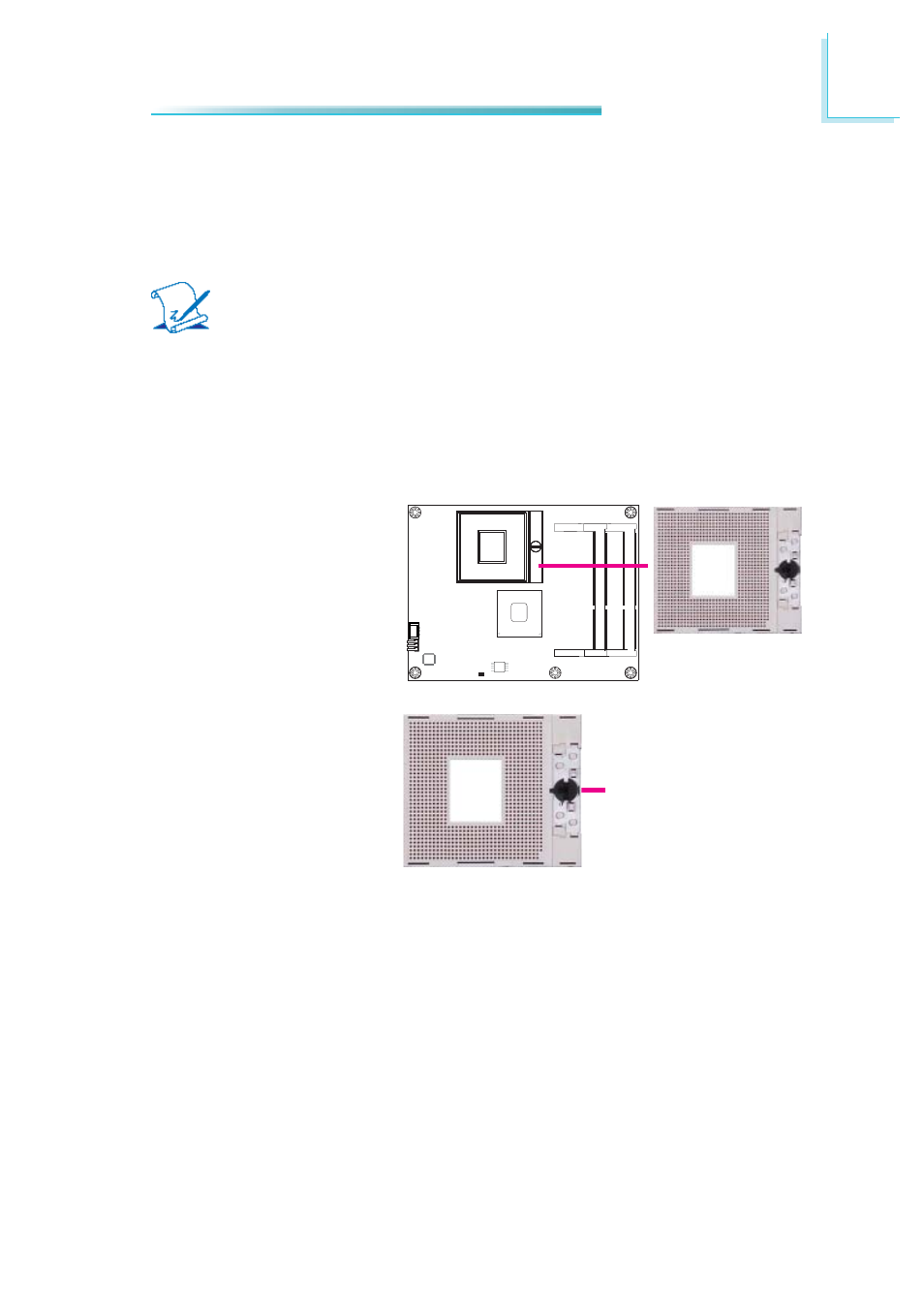

3. Locate the rPGA 988B
socket on the board.
4. Make sure the screw is in
its unlock position. If it’s
not, use a screwdriver to
turn the screw to its unlock
position.
Screw in unlocked
position
