Hardware Installation
Installing SODIMM
Note:
The board used in the following illustrations may not resemble
the actual board. These illustrations are for reference only.
1. Make sure the PC and all other peripheral devices connected to
it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the SODIMM socket on the board.

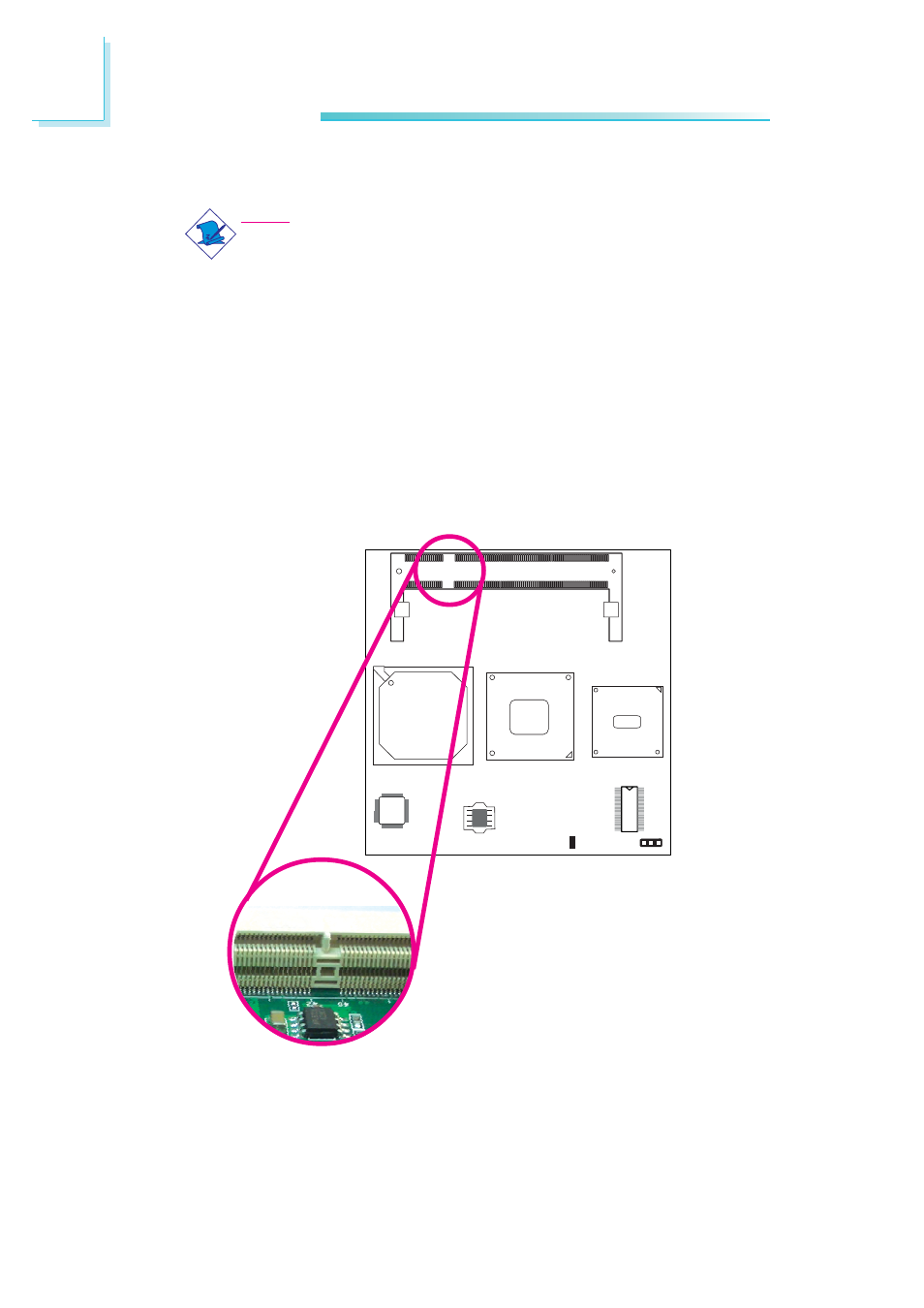

4. Note the key on the socket. The keying mechanism ensures the
module can be plugged into the socket in only one way.
5. Grasping the module by its edges, insert the module into the
socket at an approximately 30 degrees angle. Note that the
socket and module are both keyed, which means the module can
be plugged into the socket in only one direction.
