Making connections
11
DX-24L150A11
3 Turn on the camcorder or game console, then follow the
instructions that came with the device to play from the
camcorder or game console.

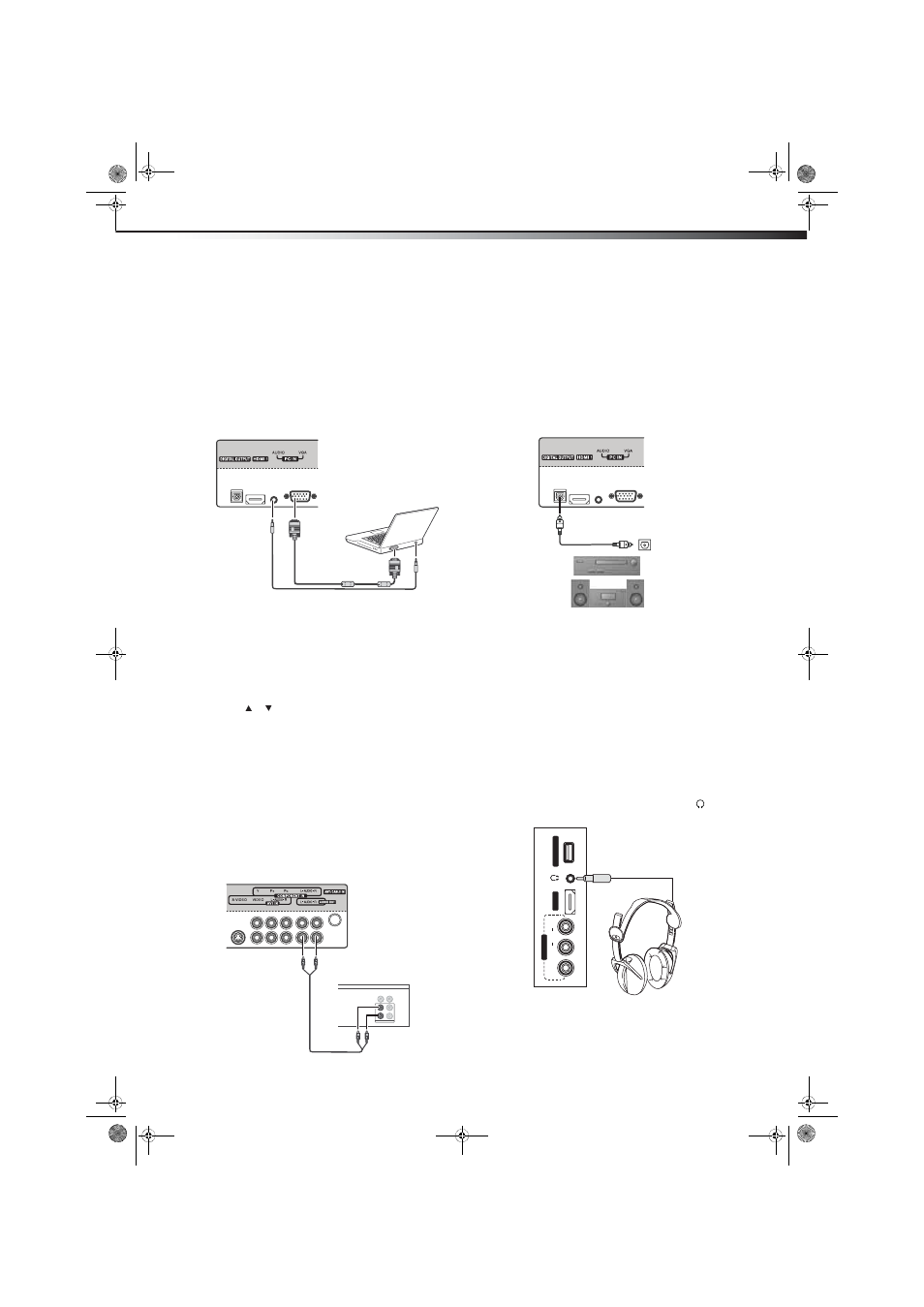

Connecting a computer
To connect a computer:
1 Make sure that your TV’s power cord is unplugged and the
computer is turned off.
2 Connect one end of a VGA cable (not included) to the PC IN VGA
jack on the back of the TV, then connect the other end of the
cable to the VGA jack on the computer.
3 Connect one end of an audio cable (not included) to the
PC IN AUDIO jack on the back of the TV, then connect the other
end of the cable to the AUDIO OUT jack on the computer.
Note: The audio cable should have a stereo mini-plug.
To play video from the computer:
1 Turn on the TV, then press INPUT. The INPUT SOURCE menu
opens.
2 Press or to select VGA, then press ENTER.
Tip: You can also press the VGA button on the remote for VGA.
3 Turn on the computer, then adjust the computer display
properties as needed.
Connecting a home theater system
Connecting using analog audio cable
To connect using analog audio cable:
1 Make sure that your TV’s power cord is unplugged and the audio
amplifier is turned off.
2 Connect one end of a audio cable (not included) to the AUDIO
OUT jacks (L&R) on the back of the TV.
Note: Cable connectors and jacks are often color-coded. Match the colors
when you connect the AV cable.
3 Connect the other end of the audio cable to the AUDIO IN jacks
on the home theater system.
Connecting using digital audio cable
To connect using digital audio cable:
1 Make sure that your TV’s power cord is unplugged and the home
theater system is turned off.
2 Connect one end of a digital optical audio cable (not included) to
the DIGITAL OUTPUT jack on the back of the TV.
3 Connect the other end of the audio cable to the digital audio in
jack on the home theater system.
Note: The DIGITAL OUTPUT jack only works with digital TV channels.
To play TV sound through a home theater system:
1 Turn on the TV and select a program to watch.
2 Turn on the home theater system and select the TV sound source,
then adjust the volume to a comfortable level.
Connecting headphones
Warning: When using headphones, adjust the headphone volume to
avoid excessively loud volume which can damage your hearing.
To connect headphones:
• Plug the headphones (not included) into the (headphone)
jack on the side of the TV.
Back of TV
Computer
VGA cable
Audio cable
AUDIO IN
Back of TV
Audio amplifier
Audio cable
Back of TV
Digital sound system
Digital optical cable
A
V2
IN L
R
VI
DE
O
AU
DI
O
H
D
MI
2
SE
RVI
CE
PO
RT
