FL-3000 and FL-4500 Fuelight TM 36- and 48-Inch
Petroleum Display Installation Quick Guide Page 4 of 6
DD2766540 Rev 00
25 June 2014
PO Box 5128 201 Daktronics Drive, Brookings, SD 57006-5128
tel: 800-325-8766 fax: 605-697-4700
www.daktronics.com

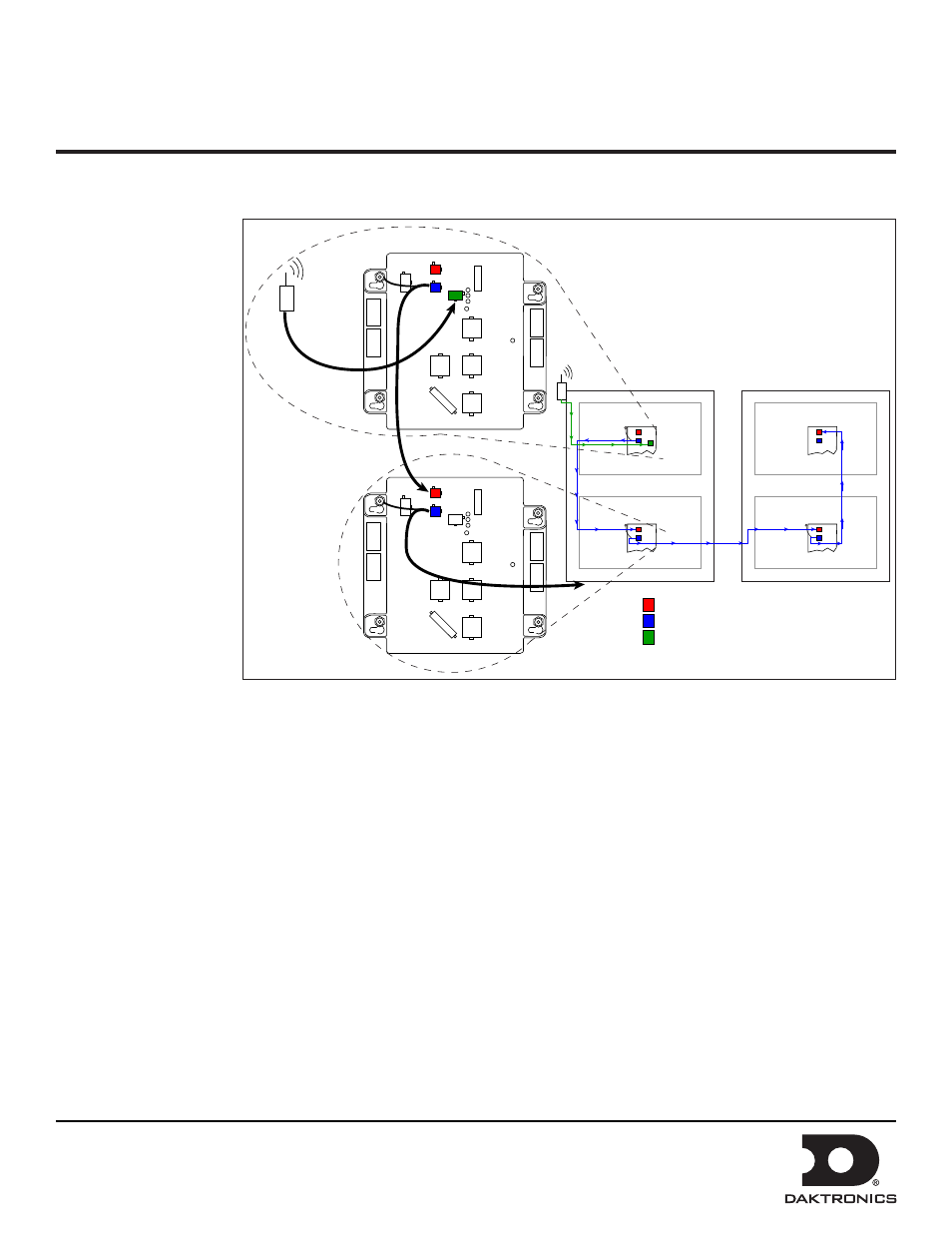

6. Route the provided line-to-line cable from the host driver jack J9 to the next client display driver, connecting to jack
J10, as shown in Figure 10.
7. Run cable through
the knockouts located
on the display’s
backsheet and be sure
to use the provided
cable bushings that
snap into place.
8. Repeat until
all displays are
connected.
Note: Do not connect
the last display
driver back to the
host.
Important Notes:
• Route cables at
least 6 inches away
from interfering
sources like ballasts,
florescent light bulbs,
power sources, any
type of motor, etc.
• Pull excess cable into the display cabinet, coil cable, zip tie it together and carefully place coil inside the display
cabinet.
Additional Information
For additional support information or communications installation information, visit www.daktronics.com/support.
Face 1
Price 1
Price 2
Host Driver - Comm Attached
Face 2
Price 1
Price 2
J10 - Line In
J9 - Line Out
J16 - Comm Port
J10
J9
J16
LINE TO LINE
COMM
PORT
J10
J9
Figure 10: Line-to-Line Cable Installation
