Display Interconnections
Signal travels from the host driver jack J9 to additional
display drivers through the Line-to-Line cable. Line-to-
line connections are made using jacks J9 and J10 on the
driver.
The preferred cable routing has signal leaving each driver
from jack J9 and entering the next driver on jack J10
Each time you connect the line-to-line cable to J9, you
must also connect the drain wire to the upper-left stud
that holds the driver in place.
1. Use provided knockouts on the back of the display
for signal entrance and exit.
2. Install the provided bushing at the knockout location.
3. Connect the provided line-to-line cable, shown in Figure 7, to host driver jack J9. The
host driver can be identified by having the communication option attached to jack
J16.
4. Place the drain wire of the line-to-line cable on the upper-left stud that holds the
driver in place, as shown in Figure 8.
5. Place the 6-32 nut on the stud and tighten it with a 5 /
16
" nut driver, as shown in
Figure 9.

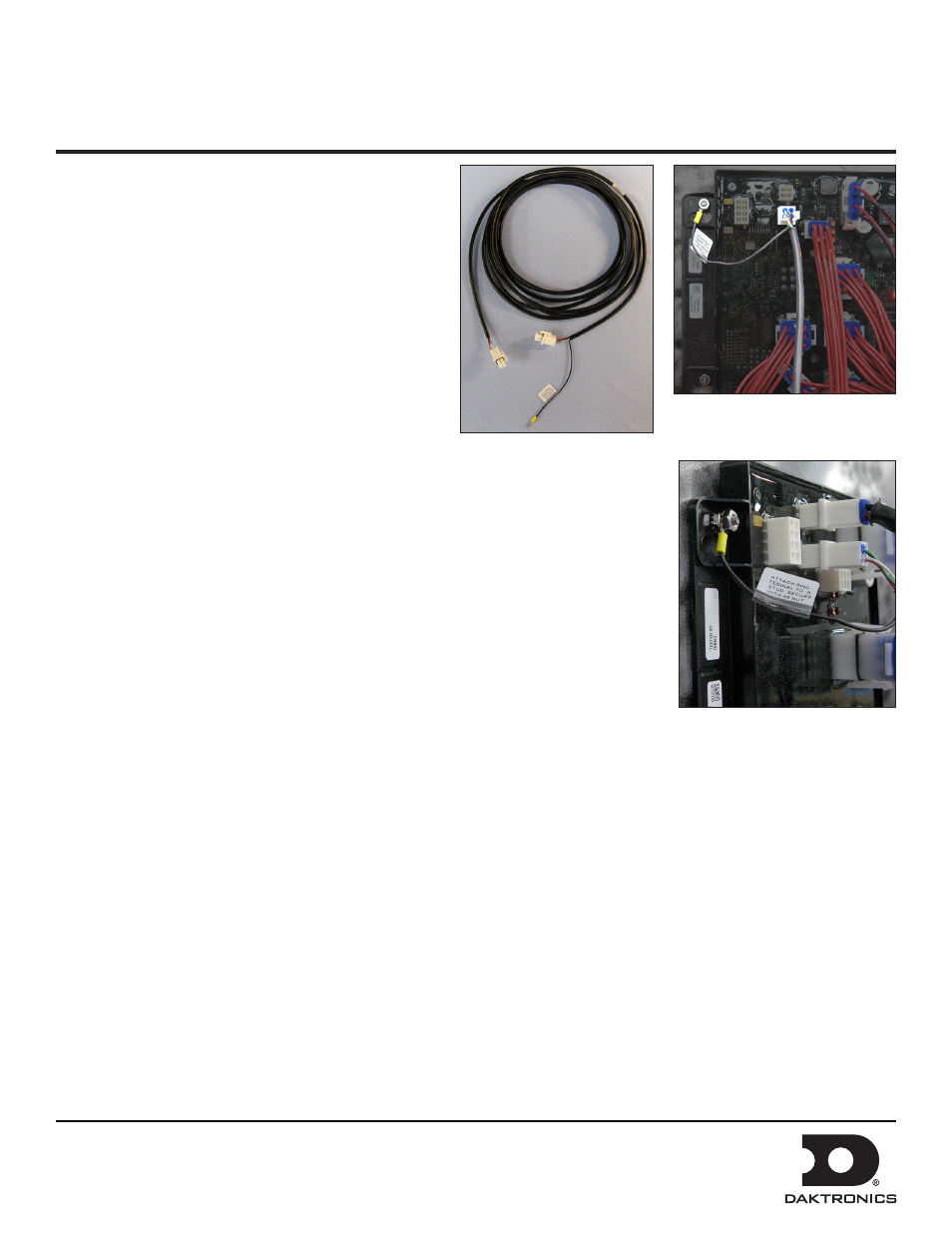

Figure 7: Line-to-Line Cable
Figure 8: Installed Line-to-Line
Cable with Drain Wire
Figure 9: Installed Drain Wire
