Inserting a CompactFlash Card
Before you inser t a CompactFlash Card, be sure to place the Universal Reader/Writer in
it’s base with the Dazzle logo on the right-hand side. To inser t a CompactFlash Card, follow
these steps:

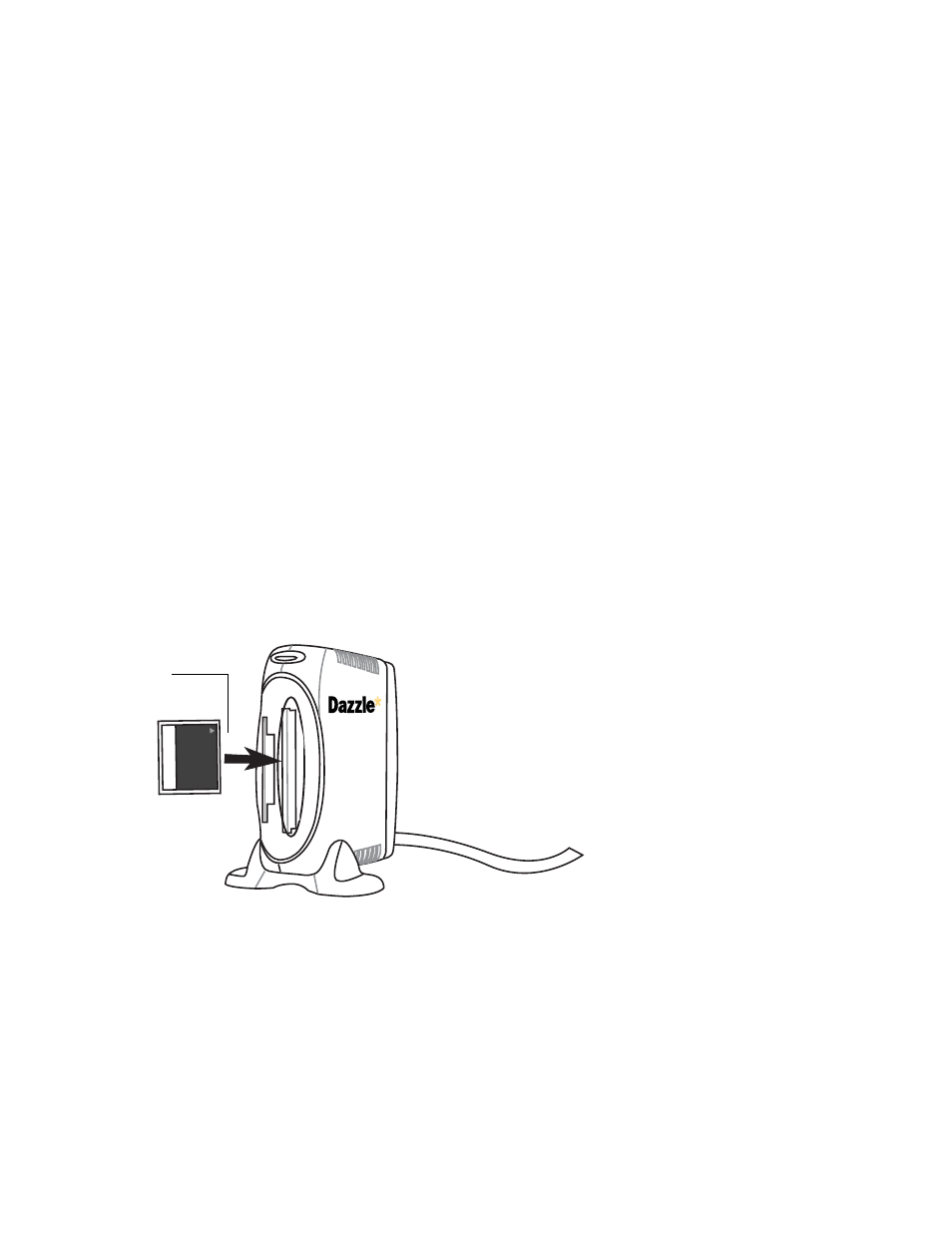

1. Position the CompactFlash card in the direction shown in the illustration below.
2. Insert the card in the right media slot with the connectors facing inward.
Make sure you position the card properly. All CompactFlash card manufacturers adhere
to a specification that requires a positive keying of the card.
Caution: Be careful not to inser t the CompactFlash card in the wrong direction.
Make sure the connectors are facing inward and the card is not inser ted upside down.
If it is forced in, the reader/writer or CompactFlash card may be damaged or data on
the card may be lost or corrupted.
3. Gently push the card in all the way until it locks in place.
The card slides in on the molded rails and you should feel a slight amount of
resistance as the connectors make contact.
Important: If excessive force is required or the card just doesn’t seem to fit, do not
force the card in the reader. Contact the Dazzle Technical Resource Center for
assistance.
Compact Flash
12
8
MB
Digital FlashFilm
Insert the CompactFlash
Card with connectors
facing in
