PLANNING
GUIDE
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
4.5
36”, 48” Wide,
Epicure™ Gas Cooktops
EG366, EG486
3/4
Non combustible
rear wall
Countertop
5/8” (16mm)
Overhang
5/8” (16mm)
Overhang
3”
(76mm)
22”
(559mm)
C

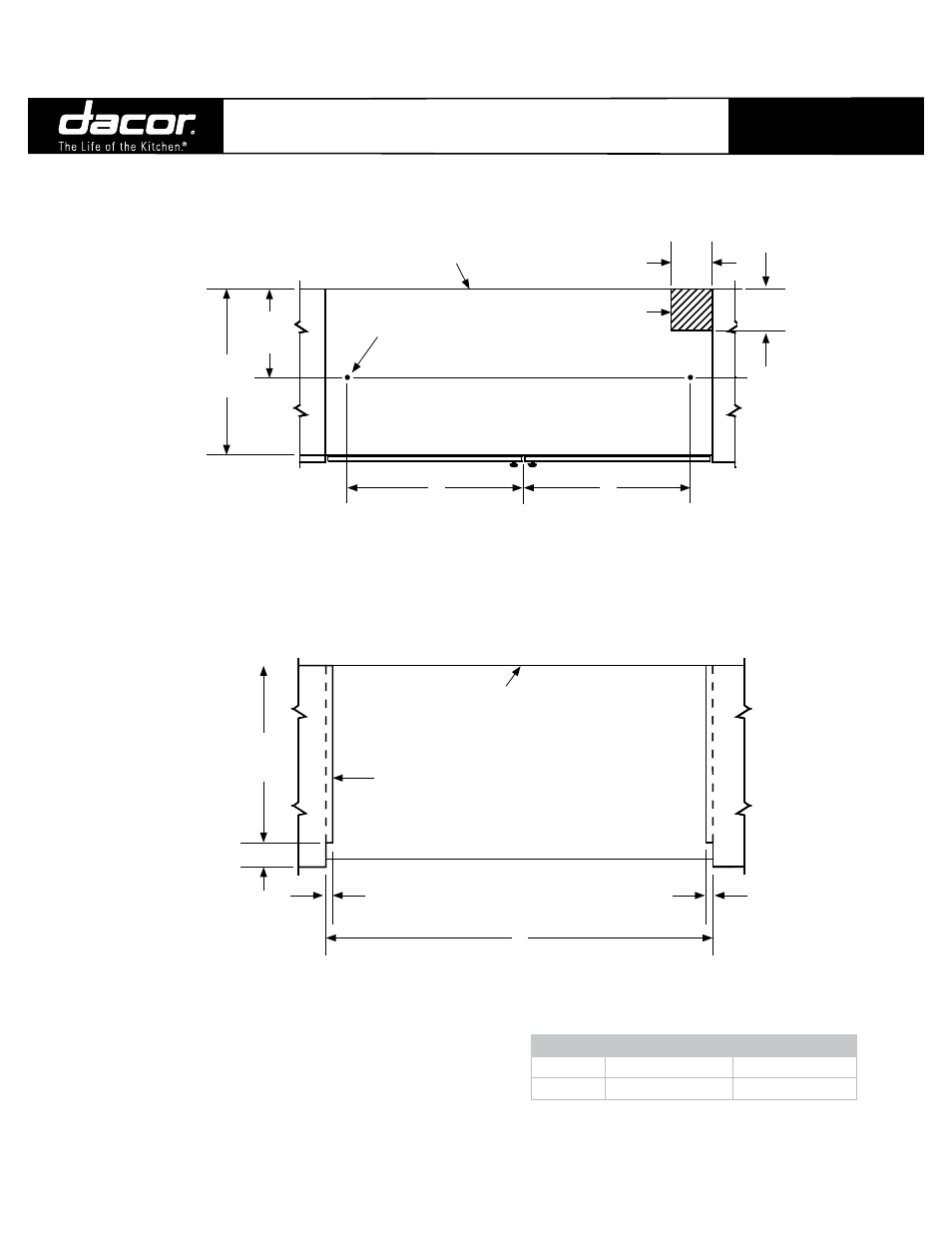

CoUNtErtoP PrEPArAtIoN - toP VIEW
Model No. “C” Cutout Width “E” Hole Offset
EG366 36” (914mm) 16 5/8” (422mm)
EG486 48” (1219mm) 20 13/16” (529mm)
All tolerances: +1/16”, -0 (+1.6mm, -0)
CL
CL
E E
Hole 2 Places, 1/2” Dia.
through cooktop platform for
hold-down bolts
12 9/16”
(319mm)
8” (203mm)
24”
(610mm)
6”
(152mm)
Utility Cut-out to allow
for gas and electrical
connection below
Non combustible
rear wall
CABINEt BASE PrEPArAtIoN - toP VIEW
