single wall oven/Drop-In Cooktop/
slim raised vent
CombINATIoN INsTALLATIoNs

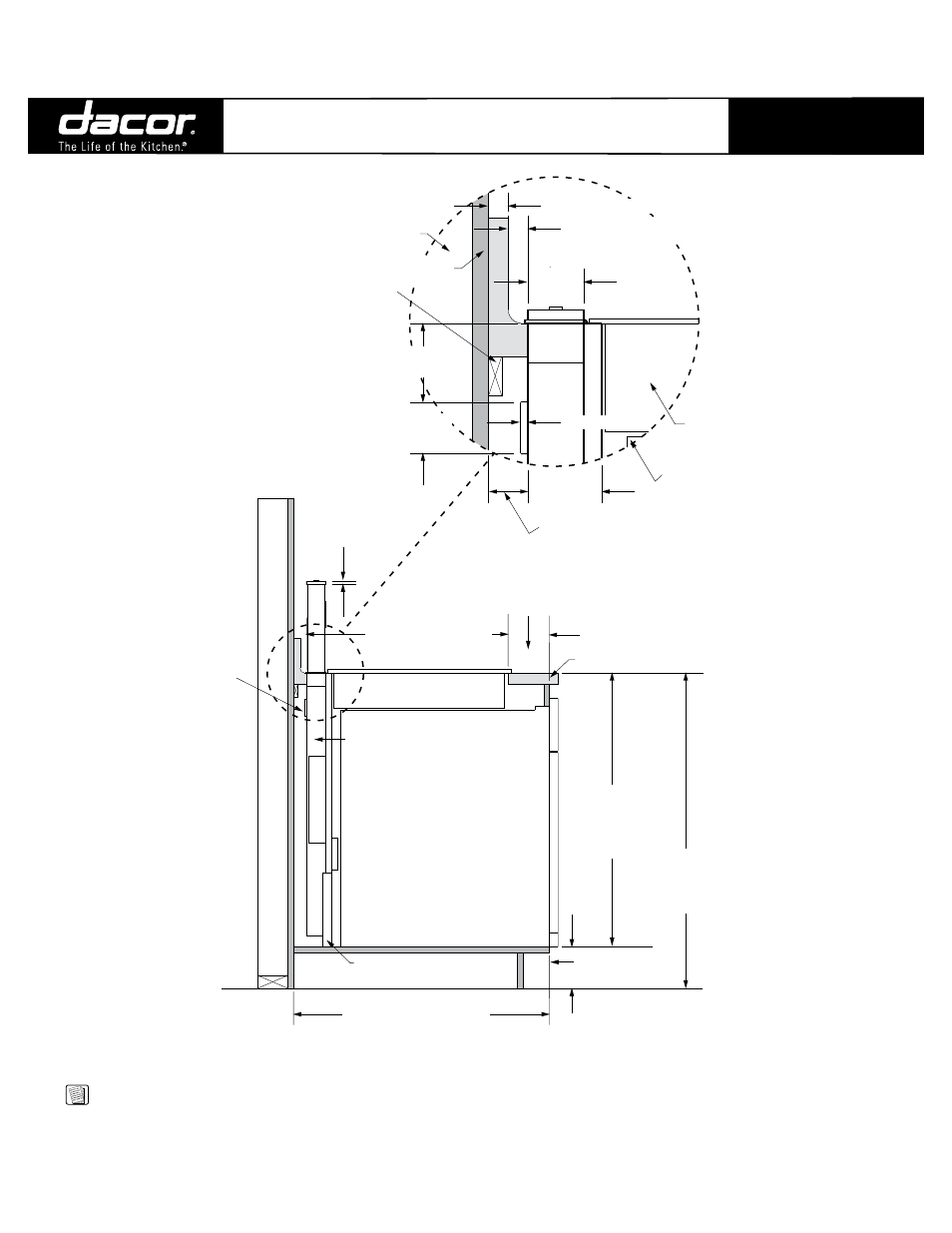

CUTAwAy sIDEvIEw
NOTE:
1. The SGM464GG is not approved for installation above an
undercounter wall oven.
1/1 030106
Stiffener
Finished floor
3/8"
(10mm)
Countertop
2 13/16"
(71mm)
All Dacor
Drop-In
Cooktops
Stud wall
Wall board
3/4" (19mm) Max. backsplash thickness
1/4" (6mm) Min. flat area
3"
(76mm)
9/32" (7mm)
1 15/16"
(49mm)
2 1/8"
(54mm)
All Dacor
Single Wall Ovens
All Dacor Drop-In
Cooktops
All Dacor
Single Wall Ovens
4 3/4" (121mm)
Typical oven
platform height
29 1/2" (749mm) Min.
36"
(914mm)
Typical
counter hieght
22 7/16" (570mm) Min.
Cooktop and ERV cutout
Face of cabinet
Face of cabinet
ERV/PRV
Support Leg
1" (25mm)
Min from interior
wall board
31 1/4” (794mm)
Minimum from
finished
countertop to
oven platform
Mounting Rail
6 1/16"
(154mm)
2. The PGM365-1 is approved for installation above an
undercounter wall oven.
