Exchanging the tip of the pen
When the tip of the pen is shortened due to wearing,
exchange it according to the following procedure.
1.
Pull out the tip of the pen using your fingernails
or a tool such as a pair of pliers.
2.
Insert a new tip into the pen.

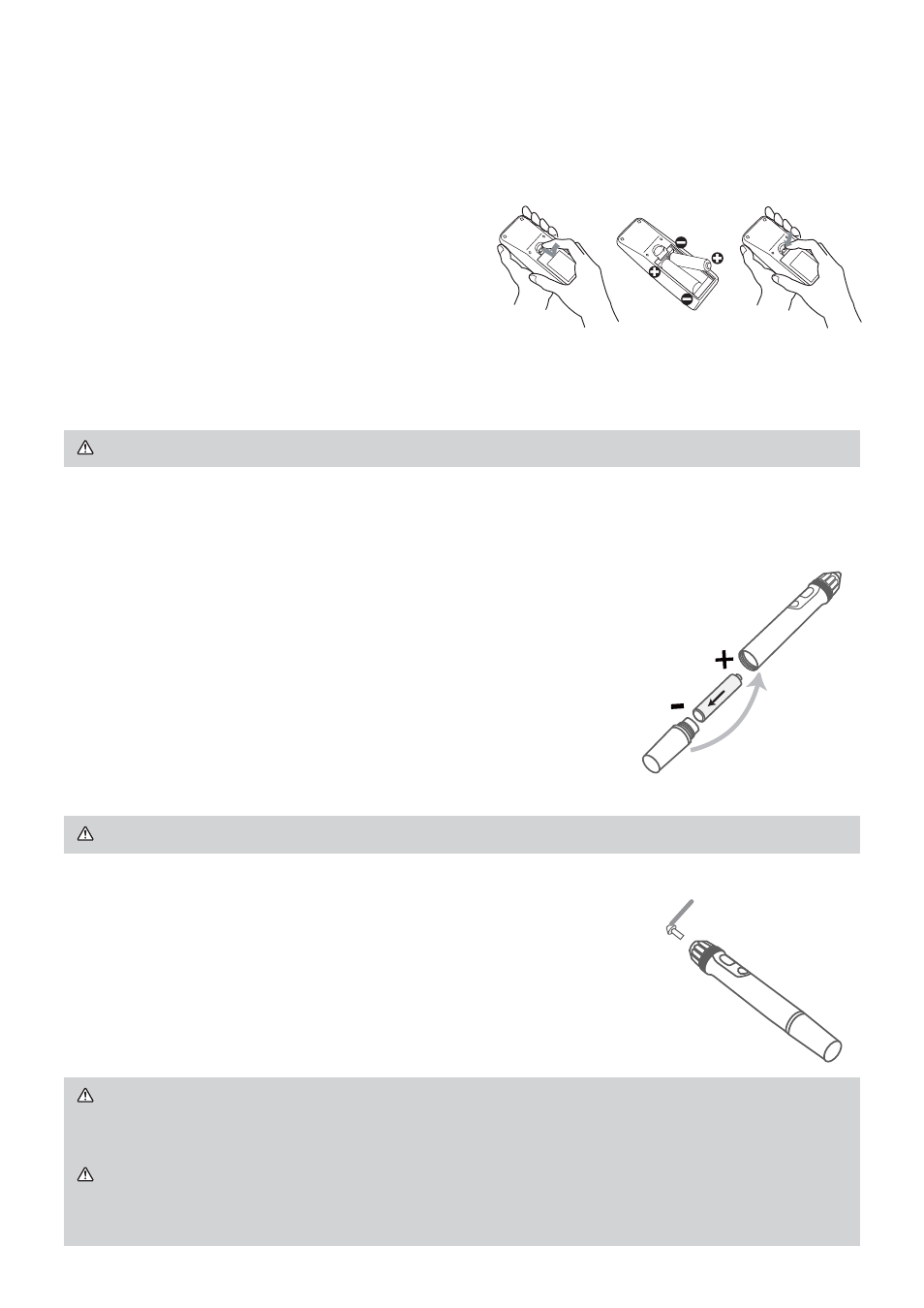

Preparing for the interactive pen
Installing the battery
Interactive Pen is henceforth denoted as “pen”.
1.
Turn the battery cover of the pen to the left to open
it.
2.
As illustrated in the diagram, insert the AAA battery
into the battery cover with the - end facing the front.
(HITACHI MAXELL, Part No. LR03)
3.
Attach the battery cover by turning it to the right
until it is completely closed.
Preparing for the remote control
Please insert the batteries into the remote control before using it. If the remote
control starts to malfunction, try to replace the batteries. If you will not use the
remote control for long period, remove the batteries from the remote control and
store them in a safe place.
1.
Holding the hook part of the battery
cover, remove it.
2.
Align and insert the two AA batteries
(
HITACHI MAXELL, Part No. LR6 or R6P
)
according to their plus and minus terminals as indicated in the remote control.
3.
Replace the battery cover in the direction of the arrow and snap it back into
place.
2
1
3
The tip of the pen
WARNING ►For precautions on battery handling, refer to the next page.
WARNING ►For precautions on battery handling, refer to the next page.
WARNING ►Keep the tip of the pen away from children and pets.
Exercise care to prevent them from swallowing the tip of the pen accidentally. If
swallowed consult a physician immediately for emergency treatment.
CAUTION ►Be careful not to pinch your finger when using the pliers or
other tools.
Do not drop the pen or mishandle it.
