LPODnet M&C Netbook Accessory

Revision 3

Setup

MN-LPODNET

2–5

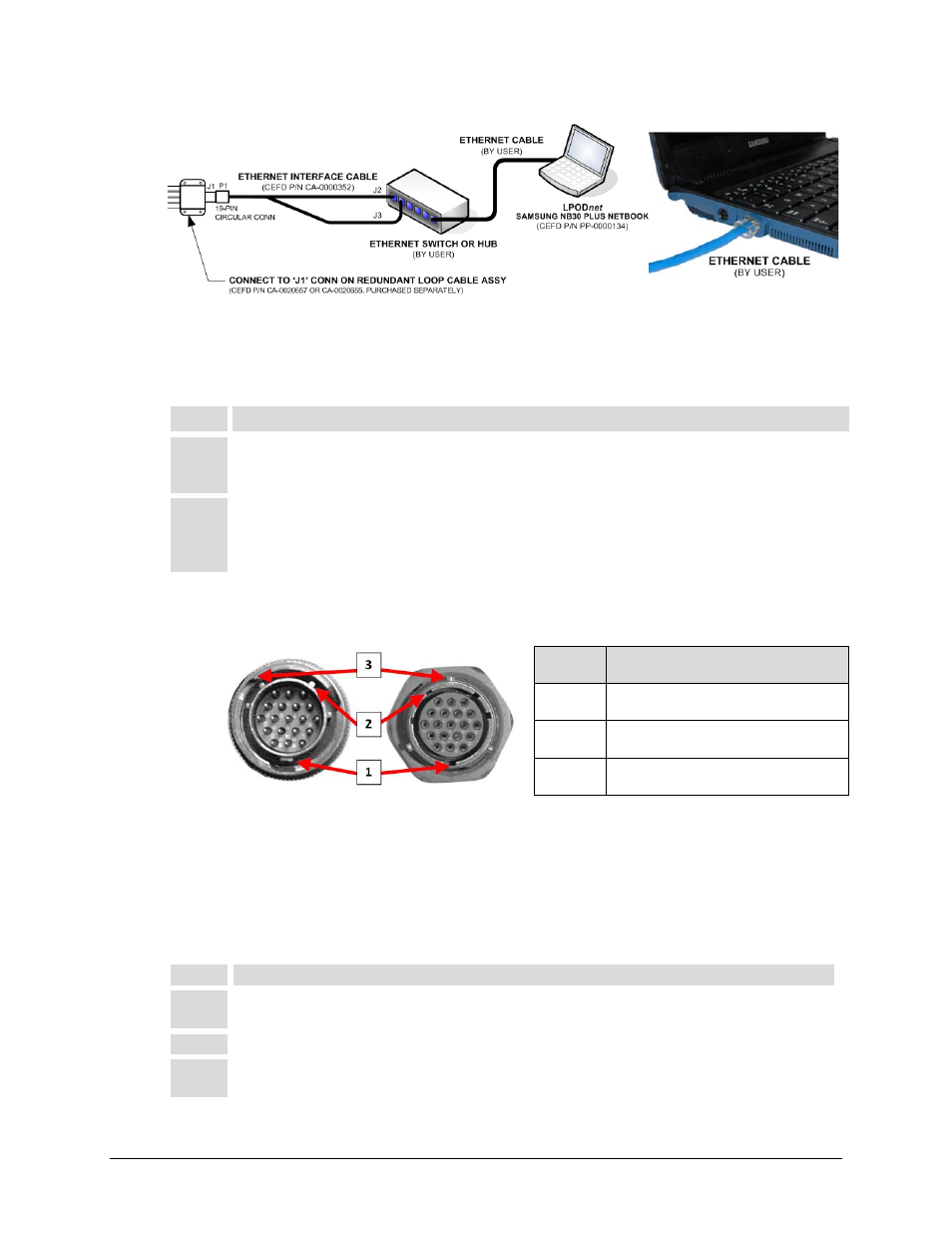

Figure 2-6. CA-0000352 RJ-45 1:1 Redundancy Application Connections

For 1:1 Redundancy applications only – Follow these steps to connect the Ethernet Interface

Cable RJ-45 ‘J2’ and ‘J3’ connectors (Figure 2-6):

Step

Task

1

Typical for each CA-0000352 RJ-45 connection (‘J2’ and ‘J3’): Press down the tab on the pertinent

RJ-45 plug, and then insert the plug into its corresponding jack in the user-provided Ethernet switch or

hub. The connection is complete when the tab ‘clicks’ into position inside the jack.

2

Connect the user-provided Ethernet switch or hub to the LPODnet Netbook with a user-provided Ethernet

cable. Typical for either end of the user cable, press down the tab on the cable RJ-45 plug, and then

insert one plug end into the switch or hub jack, and the other end into the LPODnet’s RJ-45 Ethernet

network jack. The connection is complete when the tab ‘clicks’ into position inside the jack.

2.2.2 CA-0000352 ‘P1’ 19-pin Circular Connector

Feature Description

1

Primary Alignment features

2

Secondary Alignment features

3

Sleeve Lock features

Figure 2-7. CA-0000352 19-pin Circular Connector

The 19-pin circular connector, labeled ‘P1’ on the CA-000352 Ethernet Interface Cable, features

a keyed configuration. Figure 2-7 shows the mating relationship between the ‘P1’ connector and

the ‘J6 | COM1’ socket on the SSPA, or the ‘J1’ socket on the Redundant Loop Cable Assembly

(CEFD P/N CA-0020655 for Rx / Tx applications, or CA-0020657 for Tx-only applications). Follow

these steps to install the CA-0020526 Serial Interface Cable’s male 19-pin circular connector into

the SSPA’s ‘J6 | COM1’ port or the 1:1 Redundant Loop Cable’s ‘J1’ receptacle:

Step

Task

1

Engage the primary and secondary alignment tabs on the male connector with the mating cutouts on

the female socket.

2

Push the male connector into the female socket.

3

Turn the male connector sleeve clockwise until the sleeve lock cutouts engage fully with the female

socket tabs and you hear a “click” sound.
