Comtech EF Data STS11/STS11L User Manual
Page 18
STS11/STS11L Solid-State Transfer Switch
Revision 0
Installation
MN-STS11-11
2–4

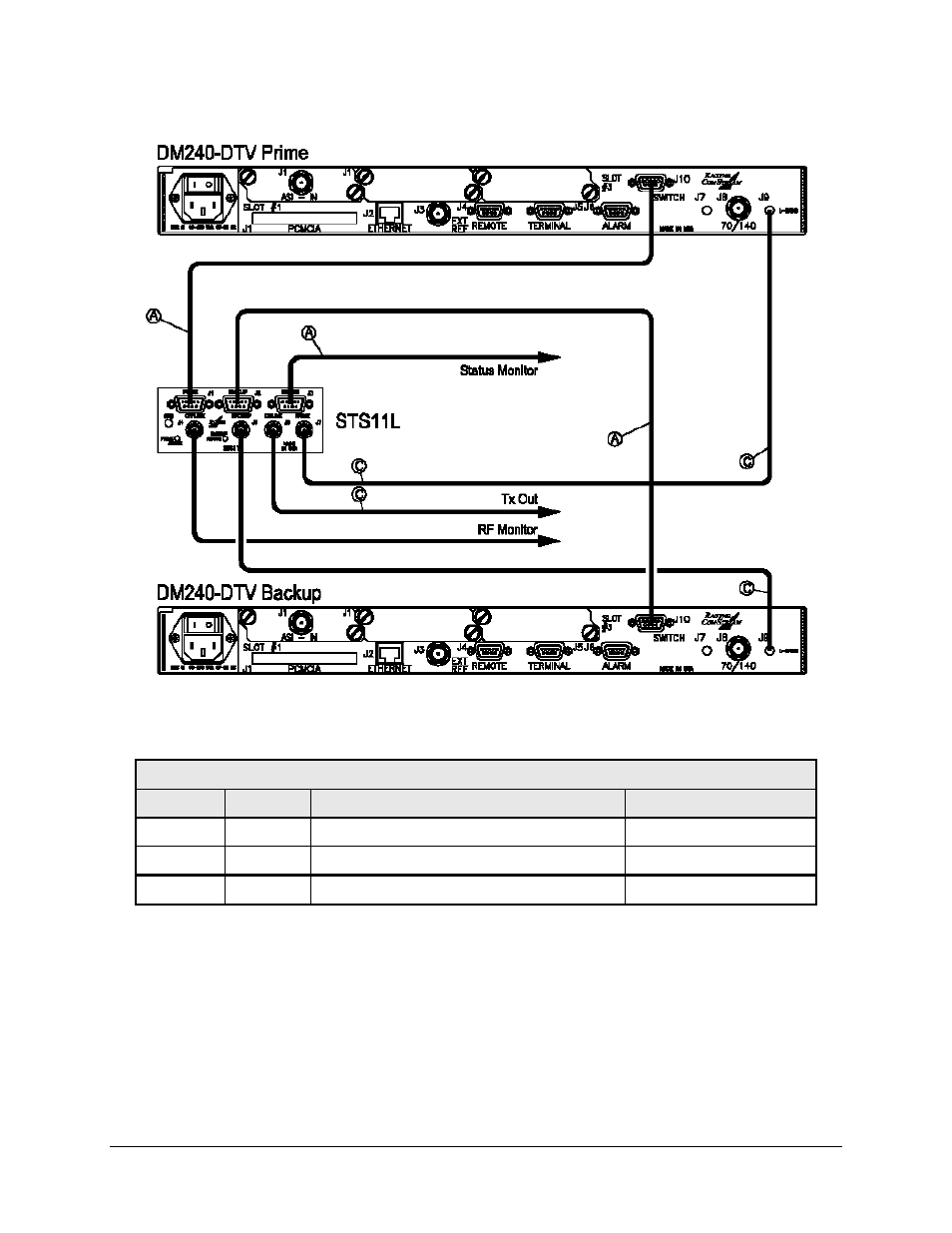

Figure 2-2. STS11L Solid-State Transfer Switch to DM240 Connections
Table 2-1. Interconnection Cable Part Numbers
Cable
Quantity
Name
Part Number
A
3
Control Cable (DB-9 Straight Cable)
CA/3677-1
B
2
IF Cable (75-Ohm BNC)
CA/3598-36
C
2
L-Band Cable (50-Ohm SMA)
CA/LMR200SMA3FT
