CONNECTION TO THE EXTERNAL POWER SUPPLY
1
230
230
12
1 R1
R3
3
2
R2
R4
4
A2
A1
AG113
GENERATOR
AG113 SWITCHING ACCESSORY
(available on demand)
1) Use cables of suitable section (see ta-
ble in paragraph “electrical connection”).
2) Fix the AG113 switch in a position that
facilitates connection.
3) Break the cable connecting the mains
input with the cut-out on the control panel,
so that it is possible to make the connec-

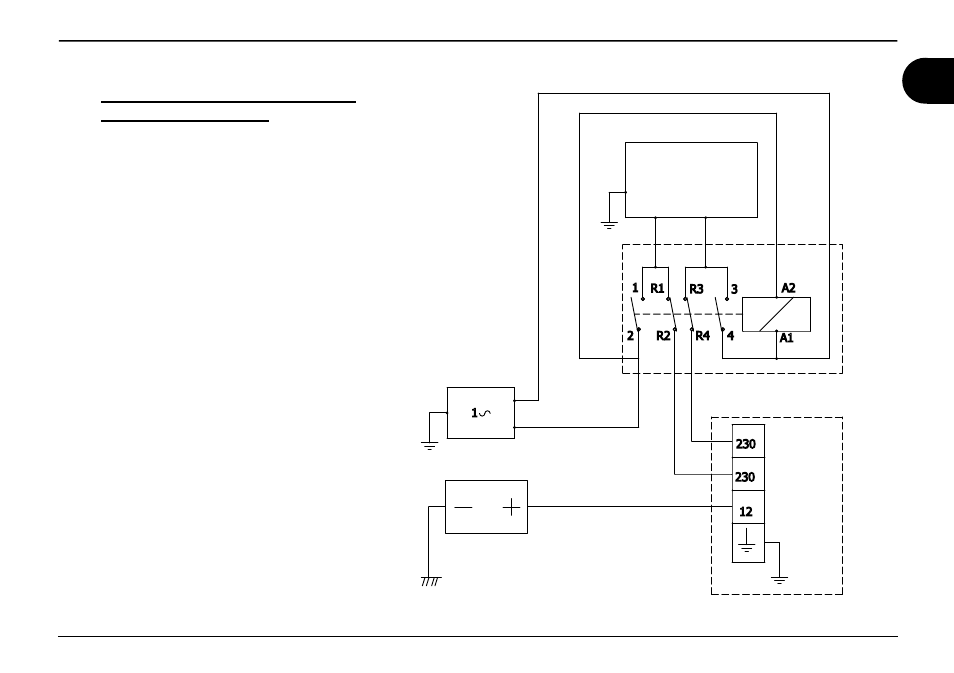

tions as shown in the wiring diagram.
4) Connect the cables to the switch, it is
necessary to insert a jumper between ter-
minal
1 and R1 and between terminal 3
and
R3.
5) In positions
R2 and R4, connect the
cables from the generator 230 V terminal
board.
LOAD
MAINS
BATTERY
