CARE AND MAINTENANCE
44
MOWER DECK LEVELING
PROCEDURE (continued)
4. Turn both outer blades to align with the deck in front-to-
rear manner. Reposition rear mounting bolts up or down
until rear of mower deck is positioned level to
1 /
8
" higher in
the rear than the side-to-side measurement.
5. Confirm measurements once again. Blade tips should be
level in a side-to-side manner. In the rear, blade tips
should be level to
1 /
8
" higher than side-to-side
measurement. In the front, blade tips should be level to
1 /
8
" lower than side-to-side measurement.
NOTE: This will place the mower deck in a base measurement
position. Additional adjustment may be required to
achieve desired cut for the type of grass or conditions
being mowed.

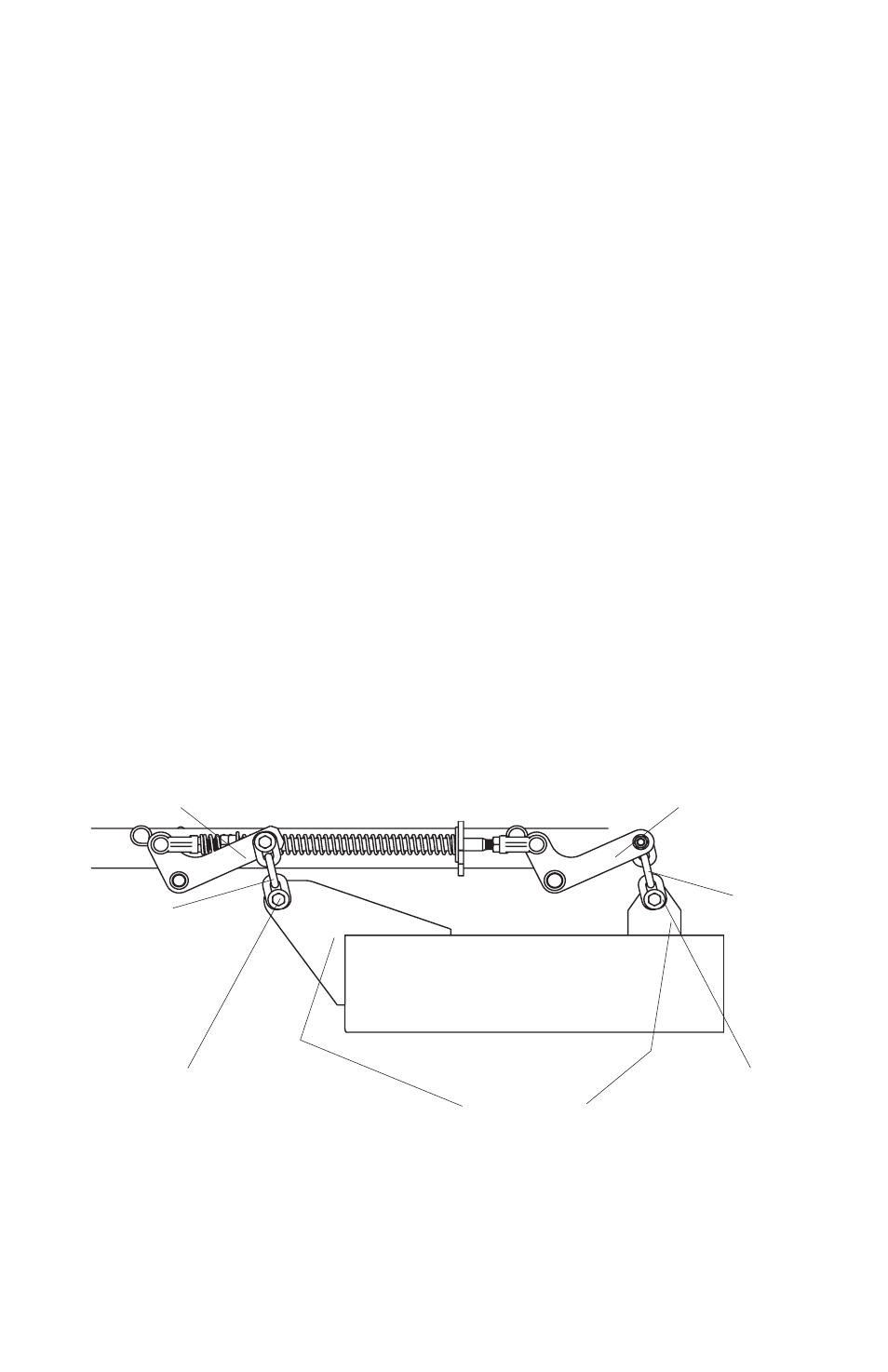

— Fig. 14 —
Mounting Bolt
Chain
Slotted Deck
Hanger Plates
Front Lift Arm Rear Lift Arm
Chain
Mounting Bolt
