CARE AND MAINTENANCE
37
BELTS
Check belts every 50 hours. Replace any belts showing
signs of wear or cracking.
BELT TENSION
Engine to Mower Deck Belt:
34" P/N 539 117811
44" P/N 539 118156
Manual adjustment. Turn nut on deck eyebolt to adjust belt
tension.
NOTE: Belt deflection or movement should be approximately
¼"(6mm) when measured at midpoint between pulleys.
Periodically inspect both belt and idler systems.
—

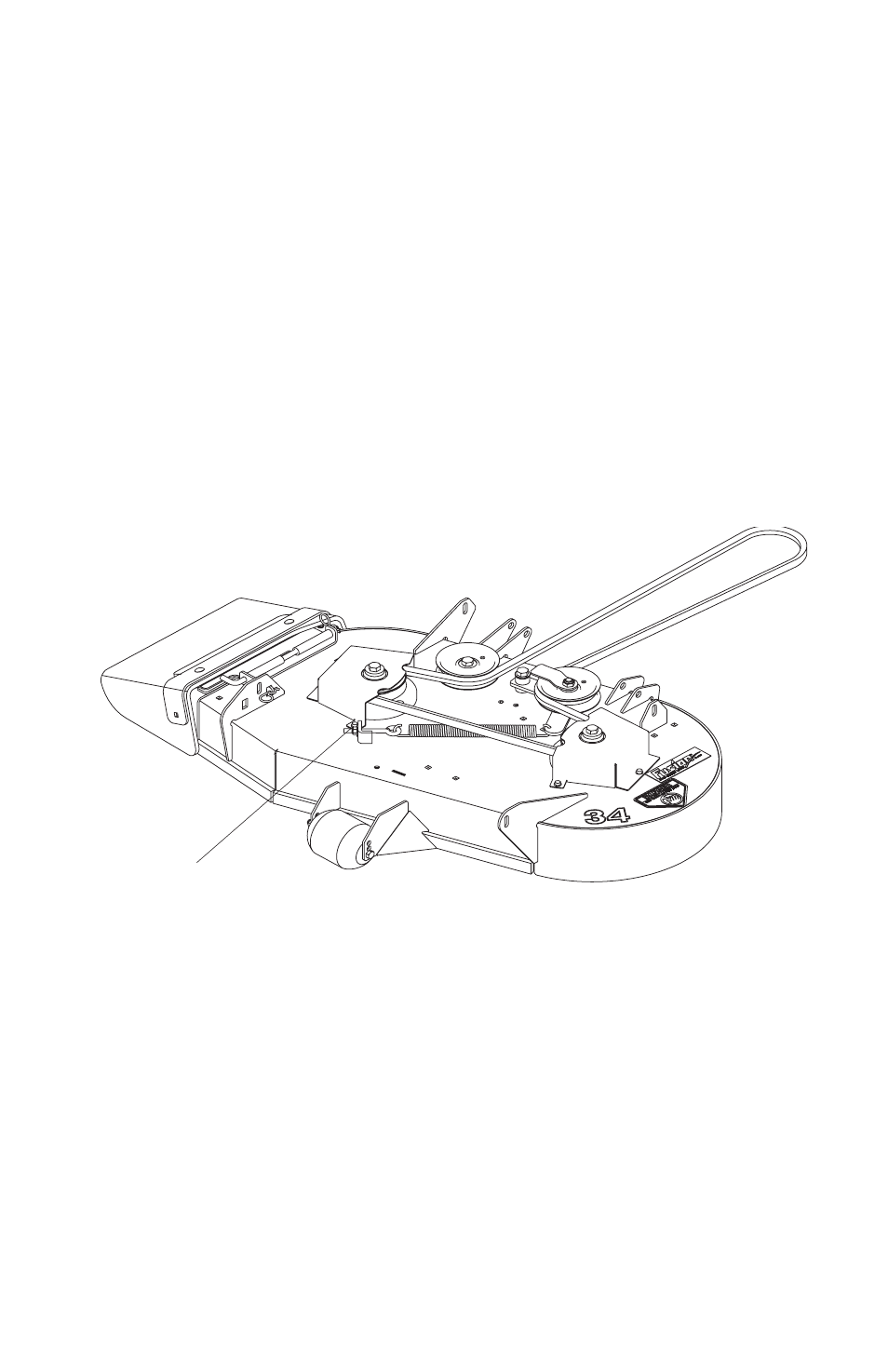

Fig. 11
—
Turn nut to adjust
belt tension
