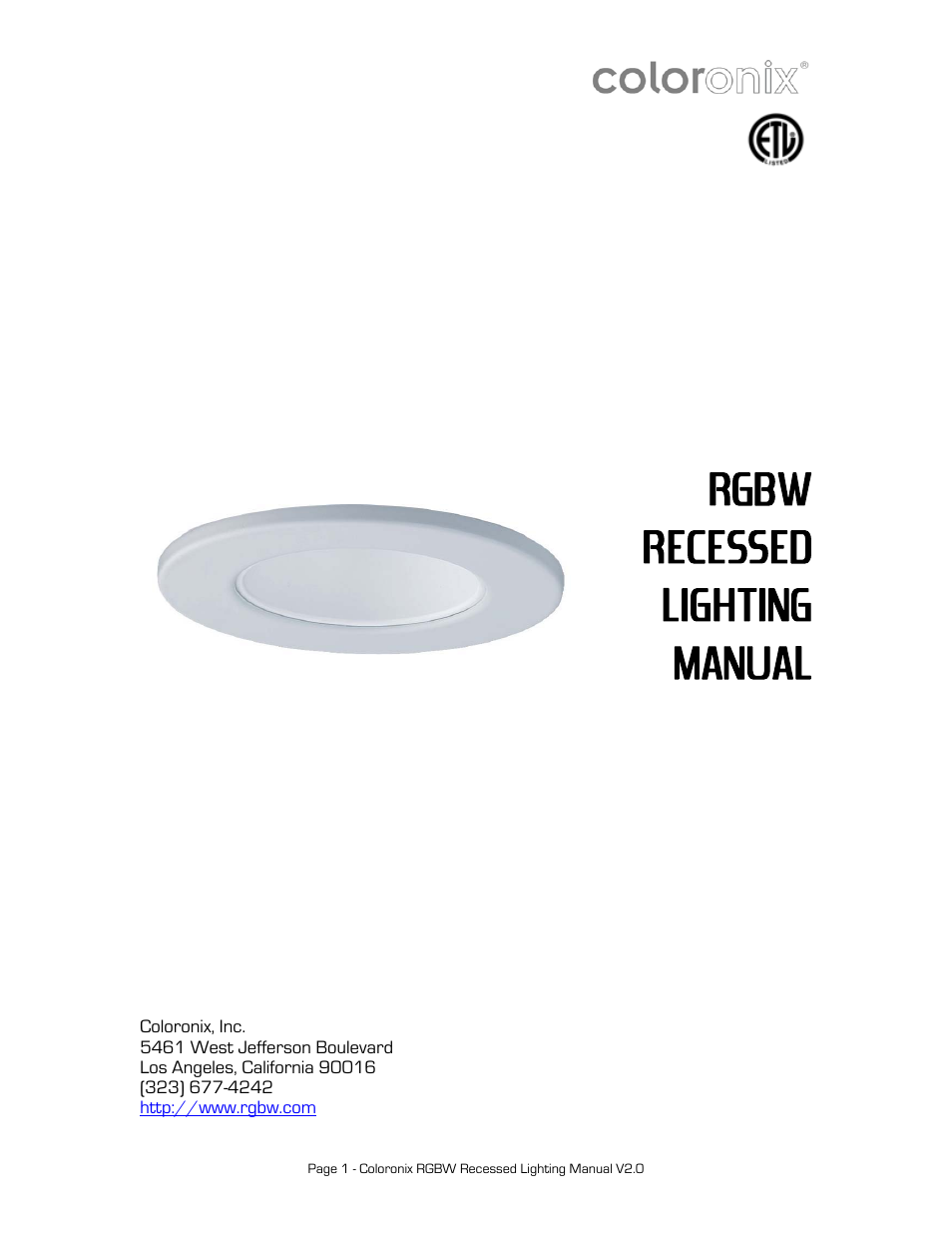

Coloronix 6″ Recessed RGBW Downlight User Manual
Rgbw recessed lighting manual
This manual is related to the following products:
Table of contents
Document Outline
- Contents
- Additional Supplies 4
- Planning for Installation 6
- Setting Color Mode 7
- Troubleshooting Guide 13-14
- Specifications
- Planning for Installation
- Unpacking
- Setting Color Mode (Optional) Dip Sw
- For installations requiring DMX control, set the personalize
- Dip Address
- Setting
- Function
- Speed
- 0
- All Down
- Demo Mode: Red, Green, Blue, White
- n/a
- 742
- 2,3,6,7,8,10
- Static Color: Warm White
- n/a
- 743
- 1,2,3,6,7,8,10
- Static Color: Cool White
- n/a
- 744
- 4,6,7,8,10
- Static Color: Red
- n/a
- 745
- 1,4,6,7,8,10
- Static Color: Green
- n/a
- 746
- 2,4,6,7,8,10
- Static Color: Light Blue
- n/a
- 747
- 1,2,4,6,7,8,10
- Static Color: Dark Blue
- n/a
- 748
- 3,4,6,7,8,10
- Static Color: Orange
- n/a
- 749
- 1,3,4,6,7,8,10
- Static Color: Purple
- n/a
- 750
- 2,3,4,6,7,8,10
- Static Color: Pink
- n/a
- 751
- 1,2,3,4,6,7,8,10
- Static Color: Yellow
- n/a
- 752
- 5,6,7,8,10
- Full Rainbow:
- Full Color Fade, Repeat
- 0.5 seconds
- 753
- 1,5,6,7,8,10
- Full Rainbow:
- Full Color Fade, Repeat
- 5 seconds
- 754
- 2,5,6,7,8,10
- Full Rainbow:
- Full Color Fade, Repeat
- 5 minutes
- 755
- 1,2,5,6,7,8,10
- Full Rainbow:
- Full Color Fade, Repeat
- 30 minutes
- 756
- 3,5,6,7,8,10
- Christmas Colors:
- Red, Green, Repeat
- 0.5 seconds
- 757
- 1,3,5,6,7,8,10
- Christmas Colors:
- Red, Green, Repeat
- 5 seconds
- 758
- 2,3,5,6,7,8,10
- Christmas Colors:
- Red, Green, Repeat
- 5 minutes
- 759
- 1,2,3,5,6,7,8,10
- Christmas Colors:
- Red, Green, Repeat
- 30 minutes
- 760
- 4,5,6,7,8,10
- Cool Blue:
- Dark Blue, Sky Blue, Repeat
- 0.5 seconds
- 761
- 1,4,5,6,8,10
- Cool Blue:
- Dark Blue, Sky Blue, Repeat
- 5 seconds
- 762
- 2,4,5,6,7,8,10
- Cool Blue:
- Dark Blue, Sky Blue, Repeat
- 5 minutes
- 763
- 1,2,4,5,6,7,8,10
- Cool Blue:
- Dark Blue, Sky Blue, Repeat
- 30 minutes
- 764
- 3,4,5,6,7,8,10
- Exotic Colors:
- Orange, Turquoise, Neon Green, Fuchsia, Repeat
- 0.5 seconds
- 765
- 1,3,4,5,6,7,8,10
- Exotic Colors:
- Orange, Turquoise, Neon Green, Fuchsia, Repeat
- 5 seconds
- 766
- 2,3,4,5,6,7,8,10
- Exotic Colors:
- Orange, Turquoise, Neon Green, Fuchsia, Repeat
- 5 minutes
- 767
- 1,2,3,4,5,6,7,8,10
- Exotic Colors:
- Orange, Turquoise, Neon Green, Fuchsia, Repeat
- 30 minutes
