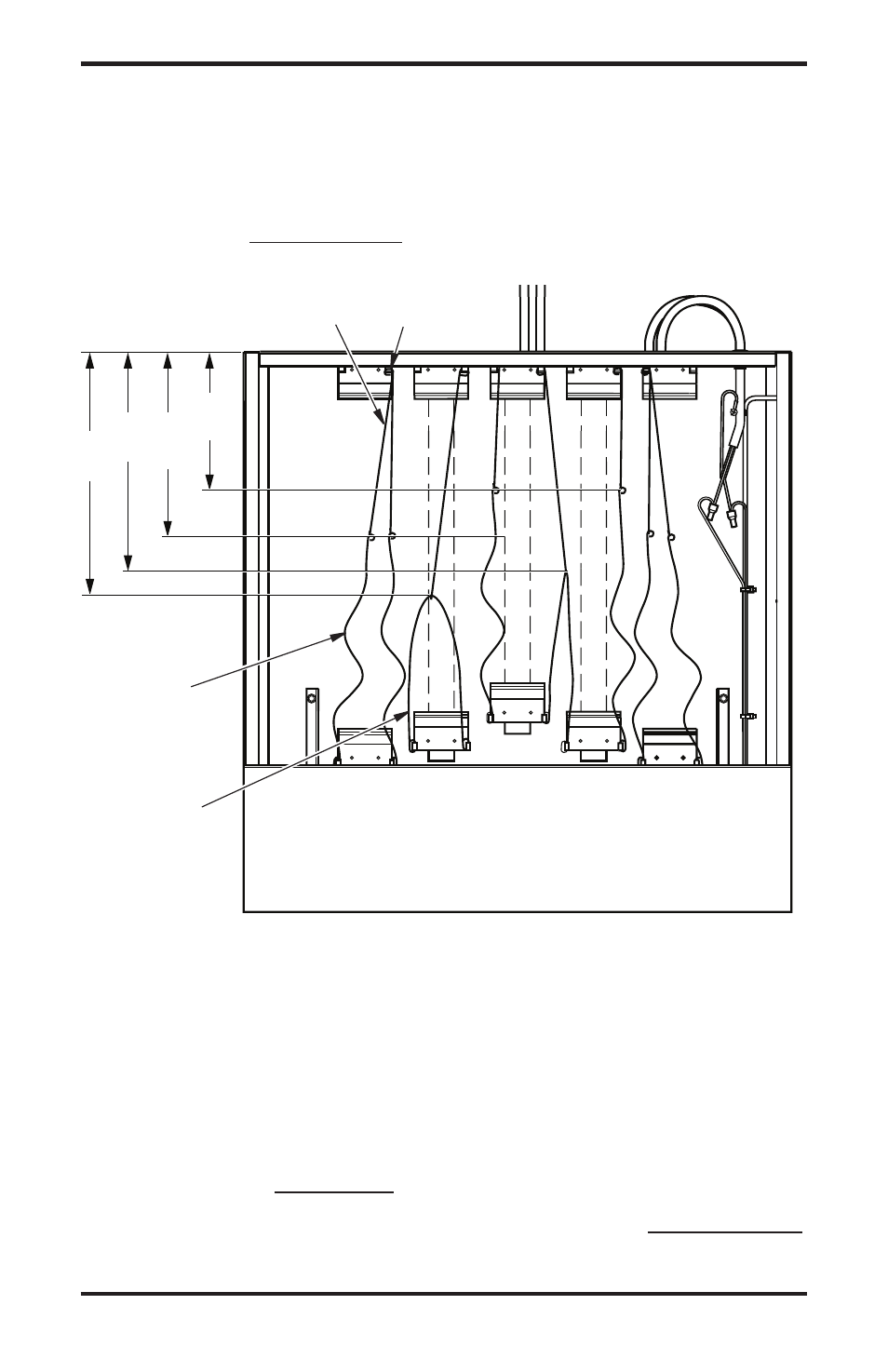

Figure 36 - Locating Flame Pennants
Flame Cord
Flame
Pennant
Flame
Spacer
MAINTENANCE
Continued
Note: Flame pennant should not be twisted
or tangled and should hang slightly loose to
allow free movement. If cord is too short or
pennant is torn you must obtain a replacement
flame assembly (see Replacement Parts, on
page 23).
Hook
4. After connecting and adjusting flame
cords, soak each knot with a drop of white
wood glue or clear nail polish to prevent
unraveling.
REPLACING LAMP FIxTURES
Lamp fixtures may be replaced as follows:
1. Turn off all power to fireplace at circuit
breaker or fuse.
2. Locate any of 3 defective lamp fixtures
and trace wiring to crimp connectors in
harness and disconnect.
3. Remove 2 crimp connectors in harness
and disconnect white and black wires on
defective fixture. See Wiring Diagram, Fig-
ure 26 on page 15, for proper locations.
4. Remove 2 Phillips screws at base of de-
fective fixture (see Figure 37, page 21).
5. Remove old fixture and mount new fixture
with 2 Phillips screws removed prior.
6. Twist bare ends of white and black wires
to corresponding wires in main harness
and secure them with 2 crimp connectors
provided.
Note: There should be no exposed bare
wire at any connection. Wiring should be
secured with wire ties, as short as possible,
and kept away from fan blades. If additional
parts are required, see Replacement Parts,
on page 23.
