AIR CONDITIONER FEATURES
Before you begin, thoroughly familiarize yourself with the control panel and remote controller
and all its functions, then follow the symbol for the functions you desire.
The unit can be controlled by the unit control panel alone or with the remote controller .
ELECTRONIC CONTROL OPERATING INSTRUCTIONS
Fig.4
NOTE: This manual does not include Remote Controller Operations, see the < Controller Instruction>> packed with the unit for details.

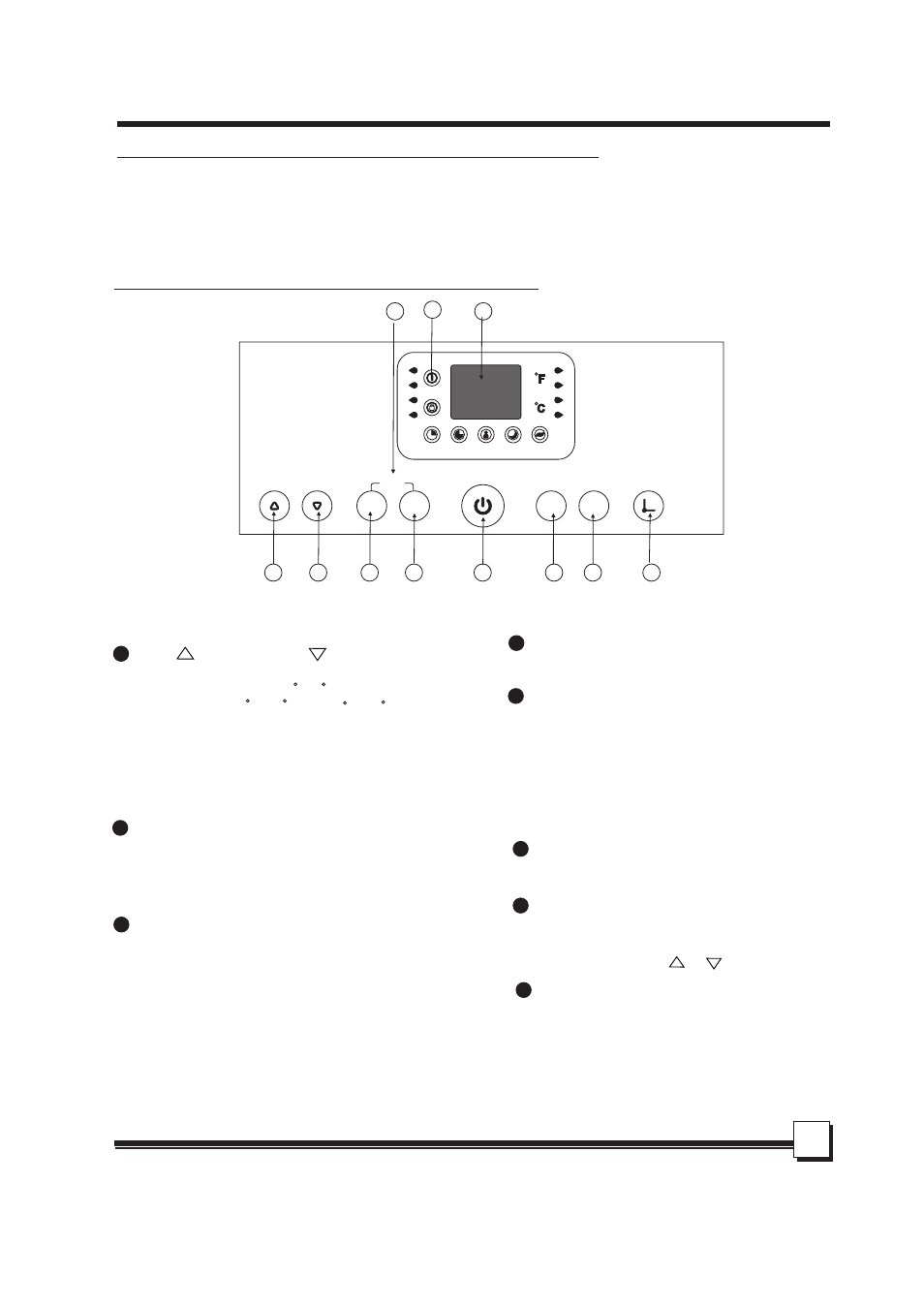

OPERATION PANEL OF THE AIR CONDITIONER
Selects the appropriate operating mode.
Each time you press the button, a mode
is selected in a sequence that goes from
AUTO, COOL, DRY, HEAT(cooling only
models without) and FAN.The mode indicator
light illuminates under the different mode
setting.
NOTE: The control is capable of displaying
temperature in degrees Fahrenheit or degrees
Celsius. To convert from one to the other, press
and hold the Up and Down buttons at the same
time, for 3 seconds.
Used to initiate the AUTO ON start time
and AUTO OFF stop time program, in
conjuction with the & buttons.
3 7 4 5 6 1 1
8
2
10
1 UP( ) and DOWN( ) button
Used to adjust (increasing/decreasing)
temperature settings(1 C/1 F increments)
in a range of 17 C(62 F) to 30 C(86 F) or
the TIMER setting in a range of 0~24hrs.
Use this button to initiate the auto
swing feature or lock the louver at
the desired positon .
2 SWING button
3 MODE select button
4
Power switch on/off.
POWER button
5 FAN button
TIMER button
6
7
Used to initiate the SLEEP operation.
SLEEP button
8
O -Shows the set temperature in C
O " F" and the Auto-timer settings.
While on DRY and FAN modes, it shows
the room temperature.
" " or
LED Display
6
Press to select the fan speed in four steps-
LOW, MED(on some models), HIGH and
AUTO.
The fan speed indicator light
illuminates under different fan settings
except AUTO speed. When select AUTO
fan speed, all the fan indicator lights turn
dark.
9
POWER
LOCK
TIME
ON TIME
OFF FOLLOW
ME SIEEP ION
PANEL
LOCK
SWING MODE SLEEP FAN
AUTO
HEAT
COOL
DRY
FAN
HIGH
LOW
MED
