Figure 2-6 (a)
Pin Connections Between 1500E Series Unit and User’s
RS-232 Device
RS-422 Differential Serial Data
The 1500E units transport differential data signals with
compatible Full Duplex RS-422 type devices. Note that
the RS-422 does not support handshaking control signals.
Use the following steps when connecting data transmission
equipment:
1. Connect your serial data cable to the user’s RS-422
device. (See Figure 2-5).
2. Connect the other end of this cable to the front panel
RS-422 terminal block connector of the 1500E TX unit.
3. Repeat step 1 and 2 for the 1500E RX unit.

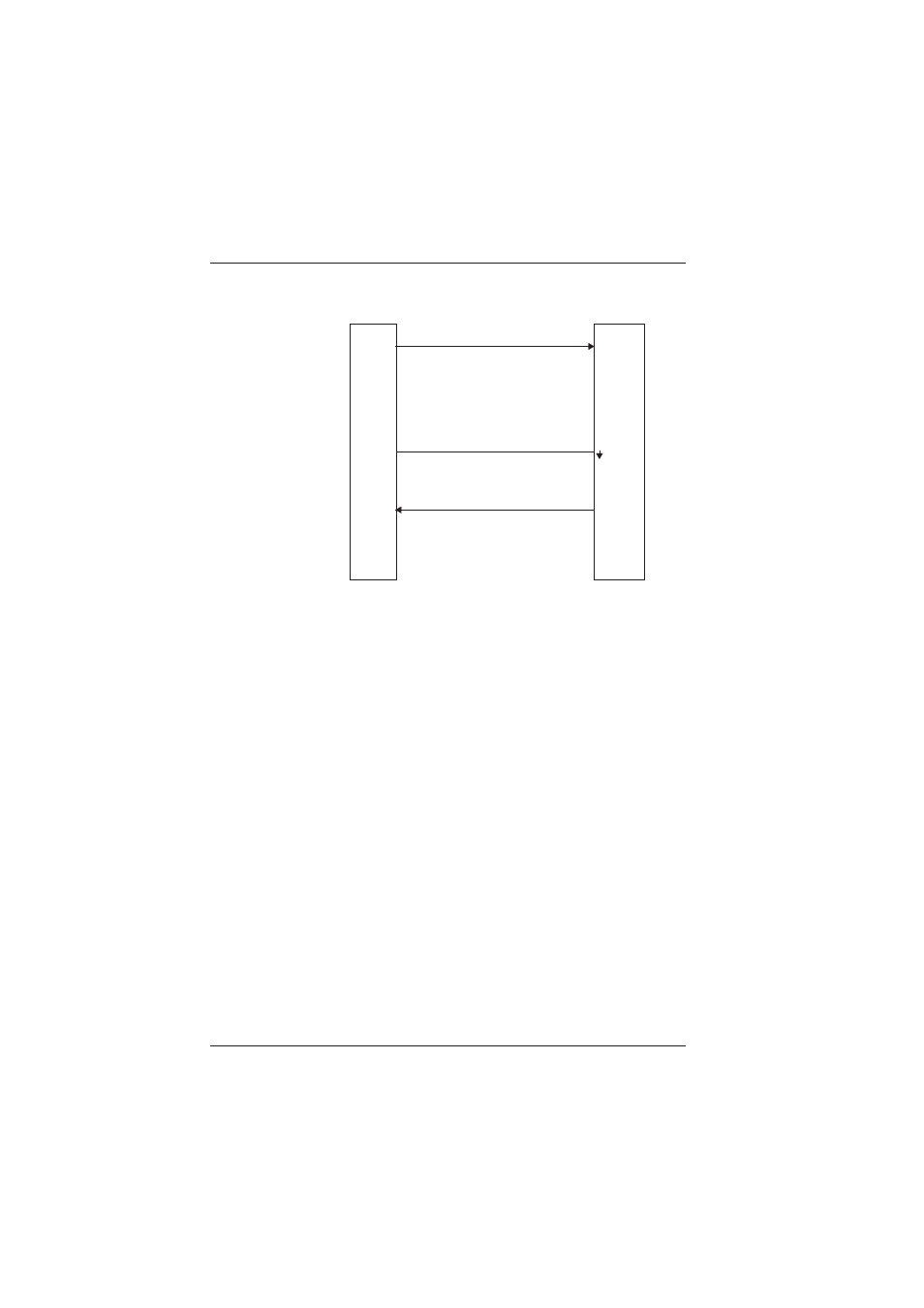

Figure 2-6 (b) shows pin connections between the 1500E
series unit (as a DCE unit) and the user’s RS-422 device
(as a DTE unit).
User’s
Equipment
(DTE)
IN 1
IN 2
GND
OUT 1
OUT 2
1500E
Unit
(DCE)
TX Data
Ground
RX Data
