L-1434 Rev. B 6
ASSEMBLY
3. Install Large Flat Washer over Drawbar Post. Slide
Angling Lever over Drawbar Post and assemble with
Clevis Pin and Cotter Pin in outermost holes.
4. Install Carriage Bolt and Locknut into innermost holes.
5. Install Vinyl Grip onto Lever.
6. Assemble Hitch to Drawbar as shown.

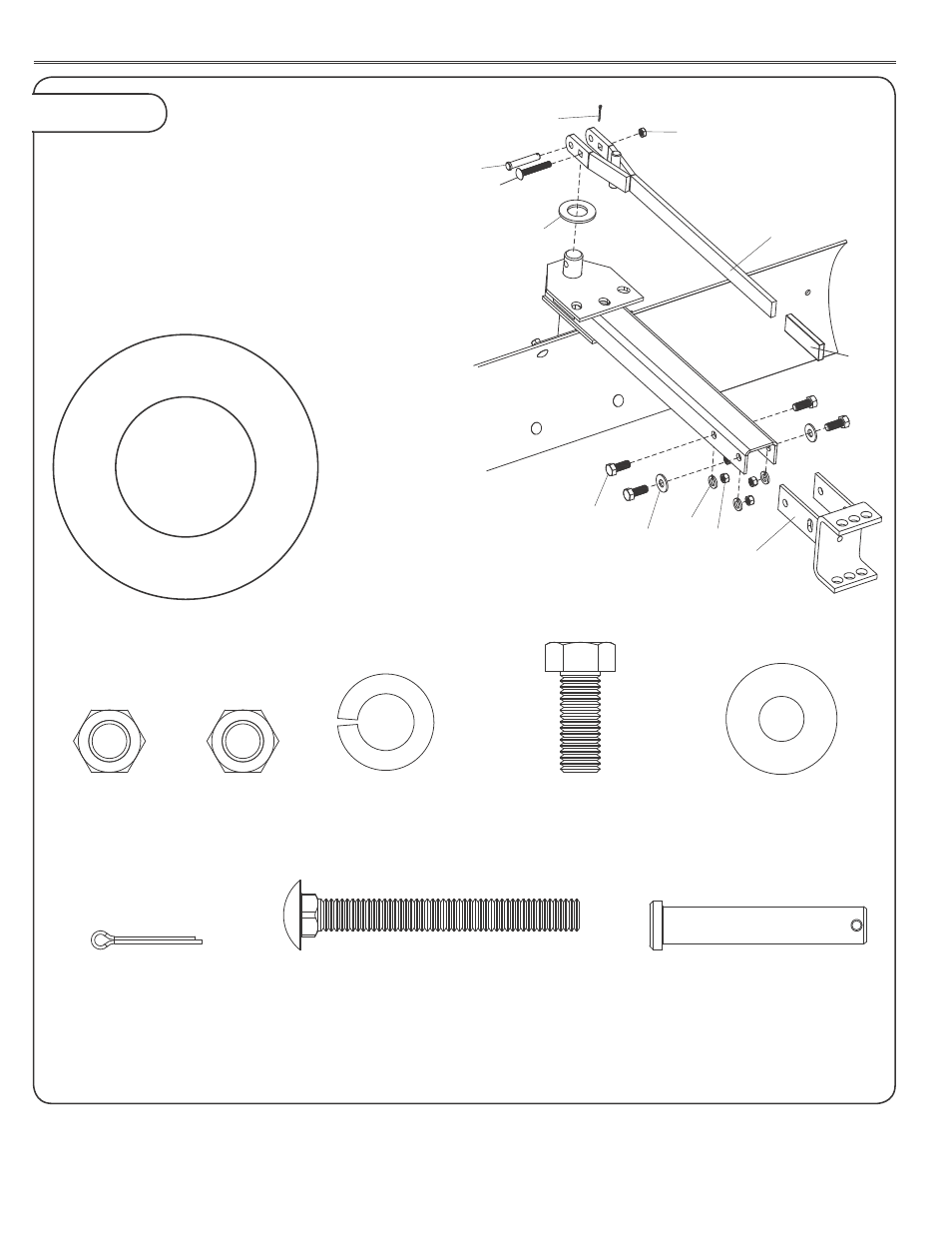

Figure 2
1
1-1/4" Washer
Qty. 1
2
3/8" Locknut
Qty. 1
20
1/8" x 1" Cotter Pin
Qty. 1
5
Clevis Pin
Qty. 1
13
3/8" x 2-1/2" Carriage Bolt
Qty. 1
14
3/8" Nut
Qty. 4
18
1/2" Lockwasher
Qty. 4
11
1/2" x 1-1/4" Hex Bolt
Qty. 4
19
1/2" Washer
Qty. 2
14
2
18
19
11
13
5
20
1
9
4
6
