L-1434 Rev. B 5
PARTS REFERENCE
Item # Part # Description Qty
1 45M4440P Washer, 1-1/4" 1
2 B-1675P Locknut, 3/8"-16 1
3 B-2375-10 42" Blade Black 1
4 B-2376-10 Angling Bar Black 1
5 B-2578 Clevis Pin, 7/16" x 2-3/8" 1
6 B-3717 Vinyl Grip 1
7 B-2596-10 Blade Mount Black 1
8 B-5922 Brinly Decal 1
9 B-4265-10 Hitch Black 1
10 B-4351-10 Drawbar Black 1
Item # Part # Description Qty
11 2M1620P Hex Bolt, 1/2" x 1-1/4" 4
12 10M1216P Carriage Bolt, 3/8" x 1" 4
13 10M1240P Carriage Bolt, 3/8" x 2-1/2" 1
14 30M1200P Hex Nut, 3/8" 4
15 30M1600P Hex Nut, 1/2" 4
16 40M1200P Lockwasher, 3/8" 4
17 45M1313P Washer, 3/8" 4
18 40M1600P Lockwasher, 1/2" 4
19 45M1717P Washer, 1/2" 2
20 50M0416P Cotter Pin,1/8" x 1" SS 1
ASSEMBLY
TOOLS REQUIRED:
(1) 9/16" Wrench
(2) 3/4" Wrenches
(1) Pair of Slip Joint Pliers
(1) Level
1. Assemble Blade to Blade Mount as shown.
Assemble hardware loosely. You will fully tighten
in adjustment step later.
2. Install drawbar down onto the blade mount as
shown.

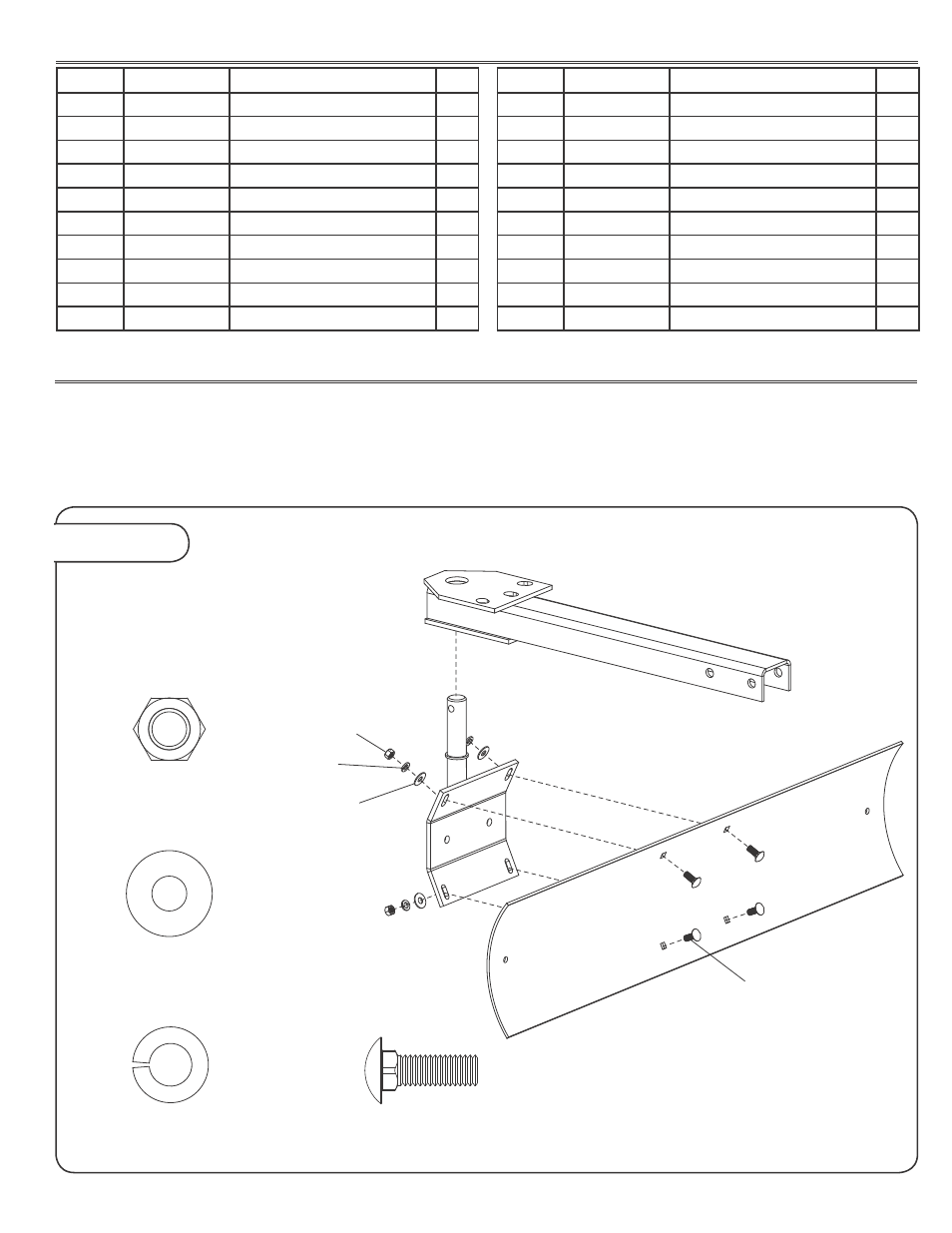

Figure 1
17
3/8" Washer
Qty. 4
16
3/8" Lockwasher
Qty. 4
12
3/8" x 1" Carriage Bolt
Qty. 4
14
3/8" Hex Nut
Qty. 4
17
16
14
12
