7
DFO2307
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.
It is a good idea to replace all of the lights at one time if they are close to the end of their
rated life. Group replacement will reduce the number of times you need to open the unit
to replace the lights.

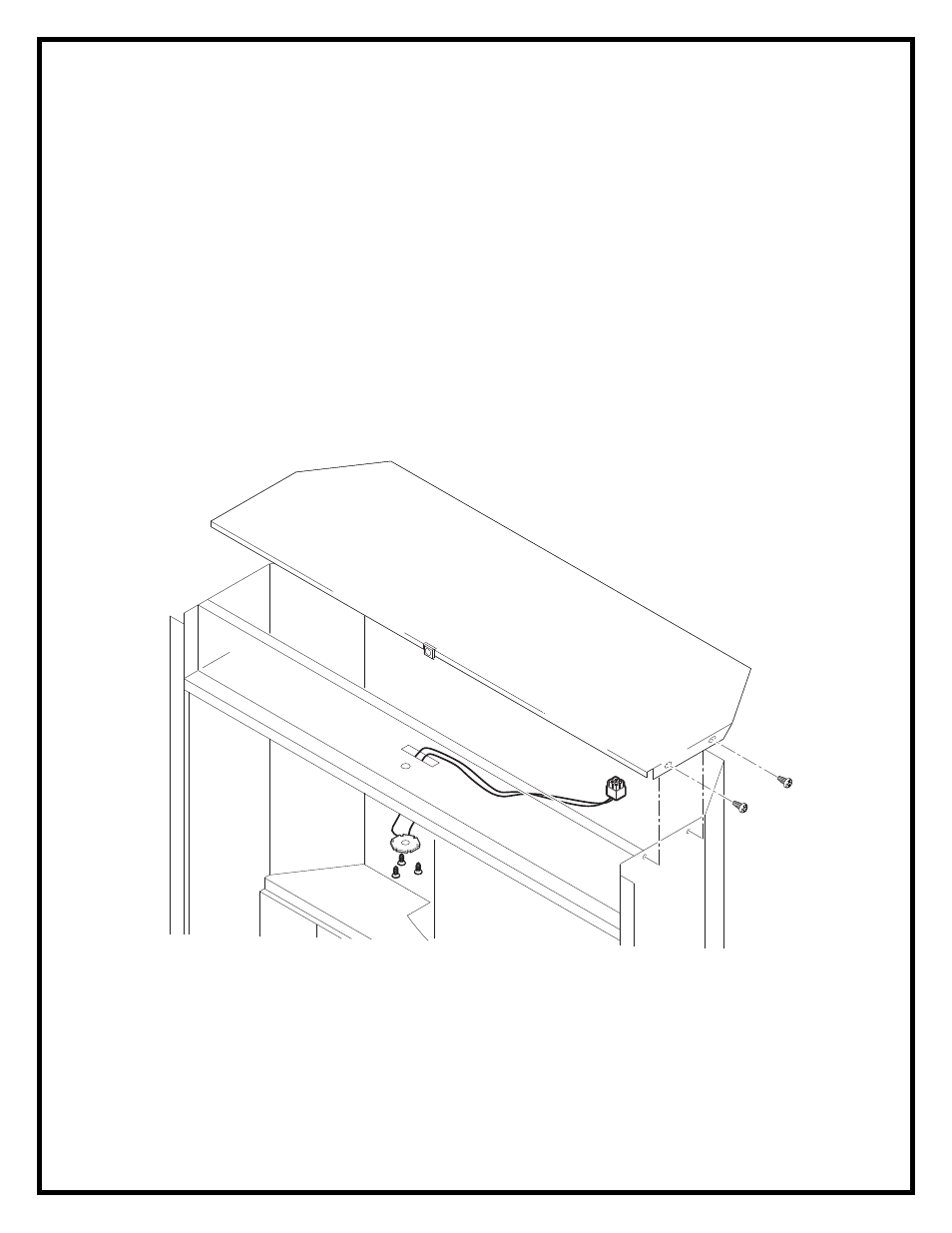

UPPER LIGHT REPLACEMENT
1. Remove the front glass as shown on page 6 of this manual.
2. Remove the top trim piece by removing the 3 retaining screws.
3. Remove the 10 retaining screws and lift the top off of the unit.
4. Unplug the light wiring harness from the circuit board.
5. Remove the 3 screws and remove the light from the unit.
6. Reassemble in the reverse order.
LIGHT BULB REQUIREMENTS
Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base,
60 watt rating.
