Dimplex DFO2307 User Manual
Page 10
9
DFO2307
Disconnect power before attempting any maintenance or cleaning to reduce the risk of
electric shock or damage to persons.

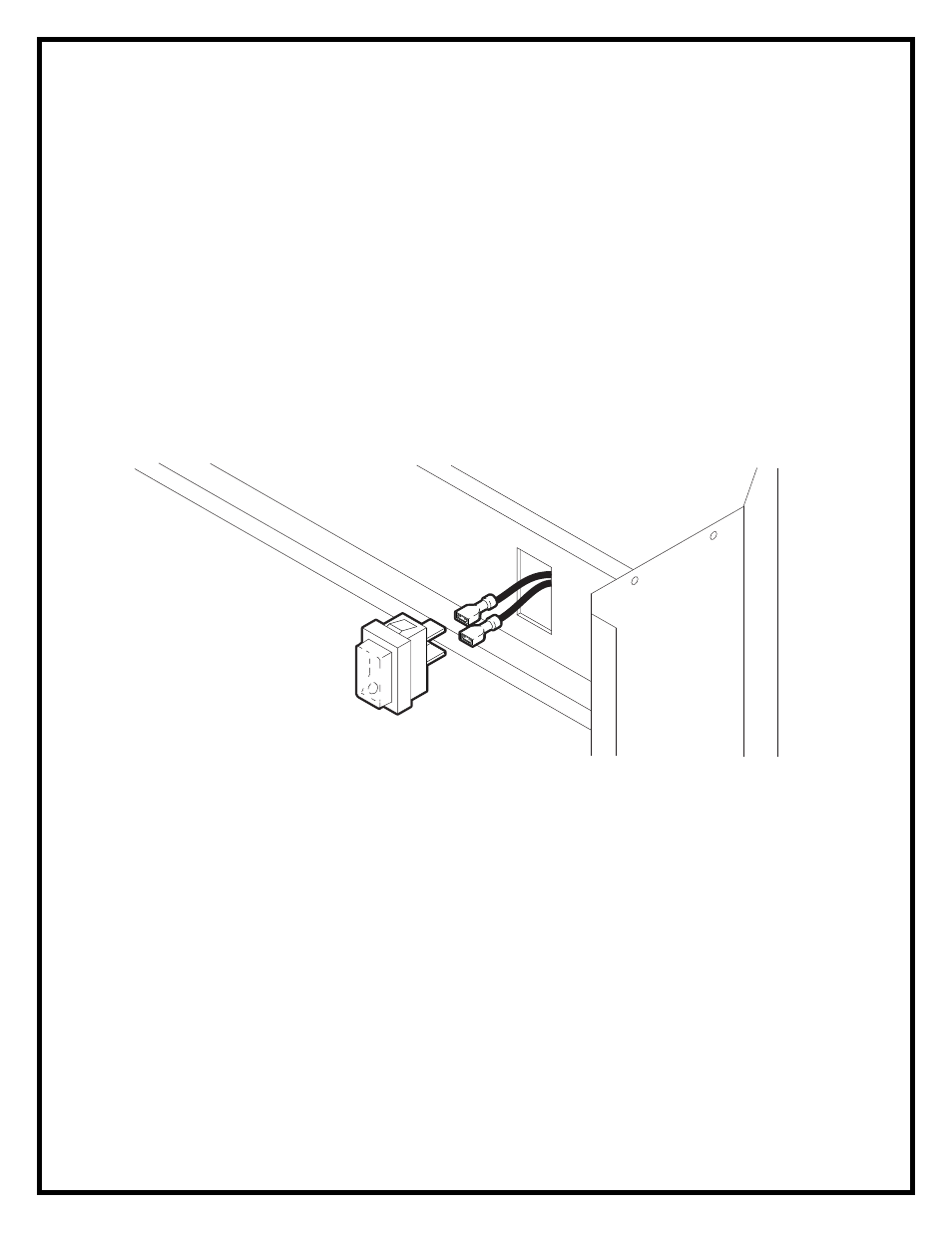

MAIN ON/OFF SWITCH REPLACEMENT
1. Remove the front glass as shown on page 6 of this manual.
2. Remove the top trim piece by removing the 3 retaining screws.
3. Remove the 10 retaining screws and lift the top off of the unit.
4. Locate the main on/off switch mounted on the top panel and disconnect the wiring
clips and connections noting their original locations.
5. Depress the retainer clips on the rear of the switch and push the switch out of the
rear of the cover.
6. Reassemble in the reverse order.
