Presenter Lock
Removing Jammed Paper
Note: If the cutter remains blocked due to a paper jam, unplug the printer and use the manual lever to move
the cutter blade prior to perform the steps below.
If a paper jam occurs, follow the steps below:
Key Panel
The key panel gives visual printer status and manual control to the operator.
These functions are accomplished using one switch and LEDs, described below:
• POWER LED: This green LED will be on whenever power is applied to the printer and the power switch is on.
• PAPER LED: This red LED will be on when the printer is without paper. If the print head is up, this red LED
will blink.
• ERROR LED: This red LED will blink in error conditions. See ERROR TABLE on next page.
• PAPER FEED BUTTON: Use to feed paper line by line with fast button touches or feed paper continuously, by
pressing and holding down the button.
1. Cut the paper at the paper entrance.

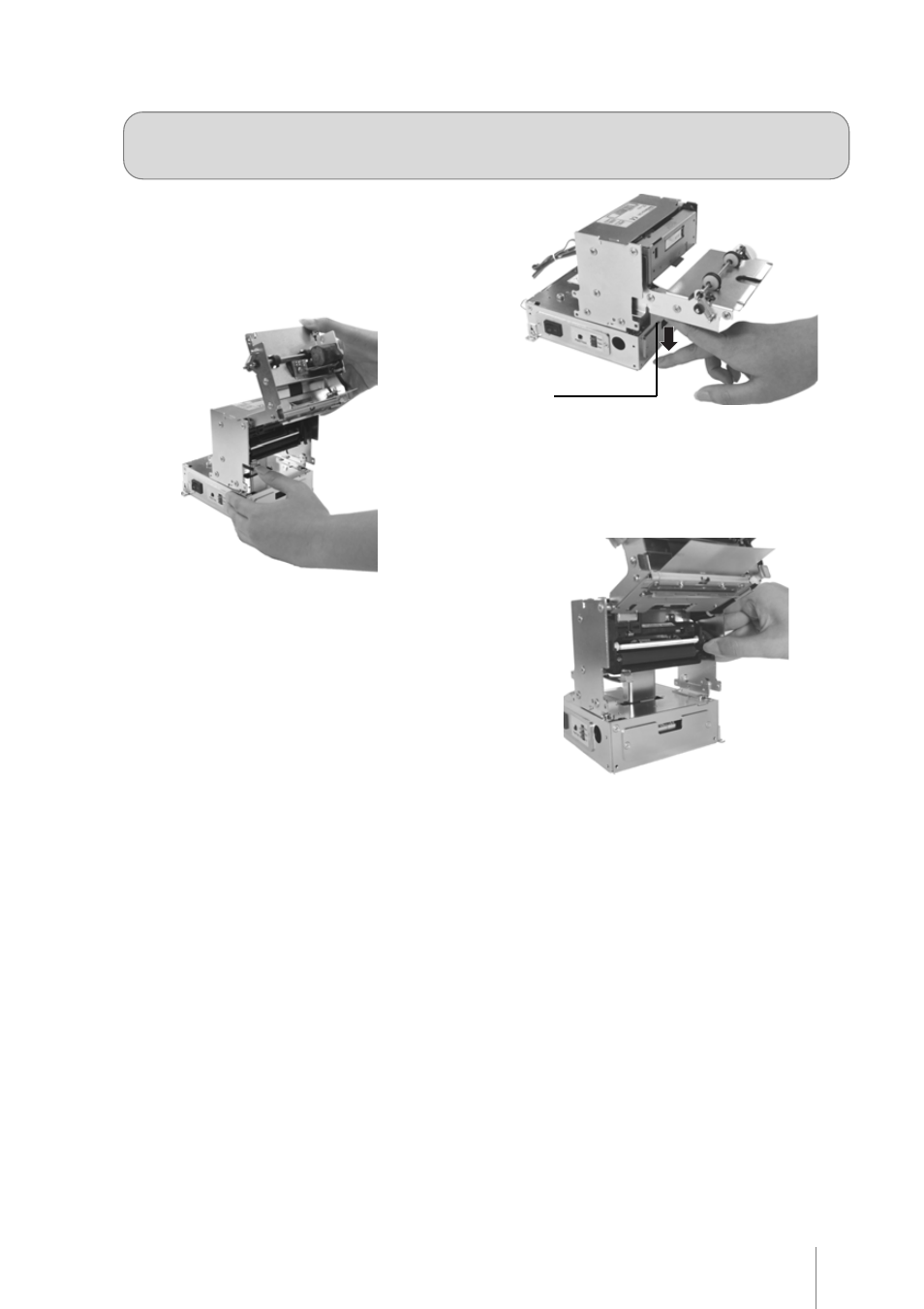

2. Push down the Presenter lock (Figure 12)
and gently move the Presenter as indicated
(Figure 13).
5. Lock the head up switch and bring the Presenter back to the inicial position. Lock the Presenter.
3. Unlock the head up switch raising the print head
(Figure 14).
4. Gently pull the paper out of the mechanism.
