Hyundai H-CMD2002 User Manual
Page 9
9

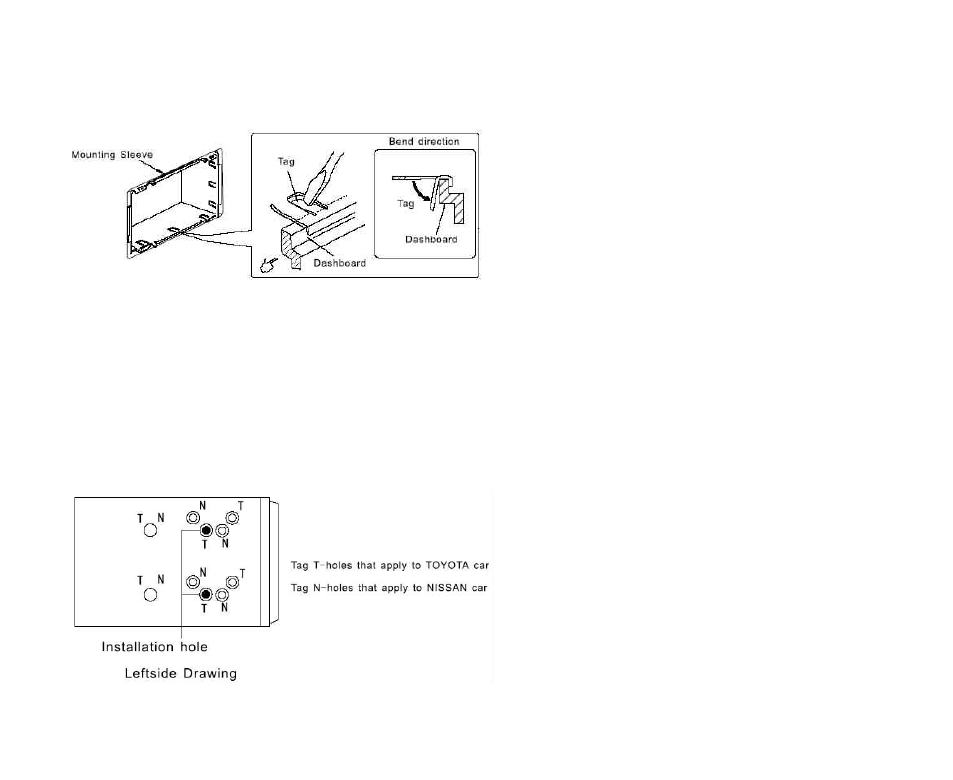

Bend the appropriate tabs to hold the sleeve firmly in place.
Note: Locate 12 bend tags along the top, bottom and sides of the mounting sleeve, with the sleeve fully
inserted into the dashboard opening, bend as many as of the tags outward as necessary so that the sleeve is
firmly secured to the dashboard.
Step 2: Install bracket
Please use holes marked ( ).
Please refer to installation manual.
