Removing a MAU from a DEChub 900 MultiSwitch

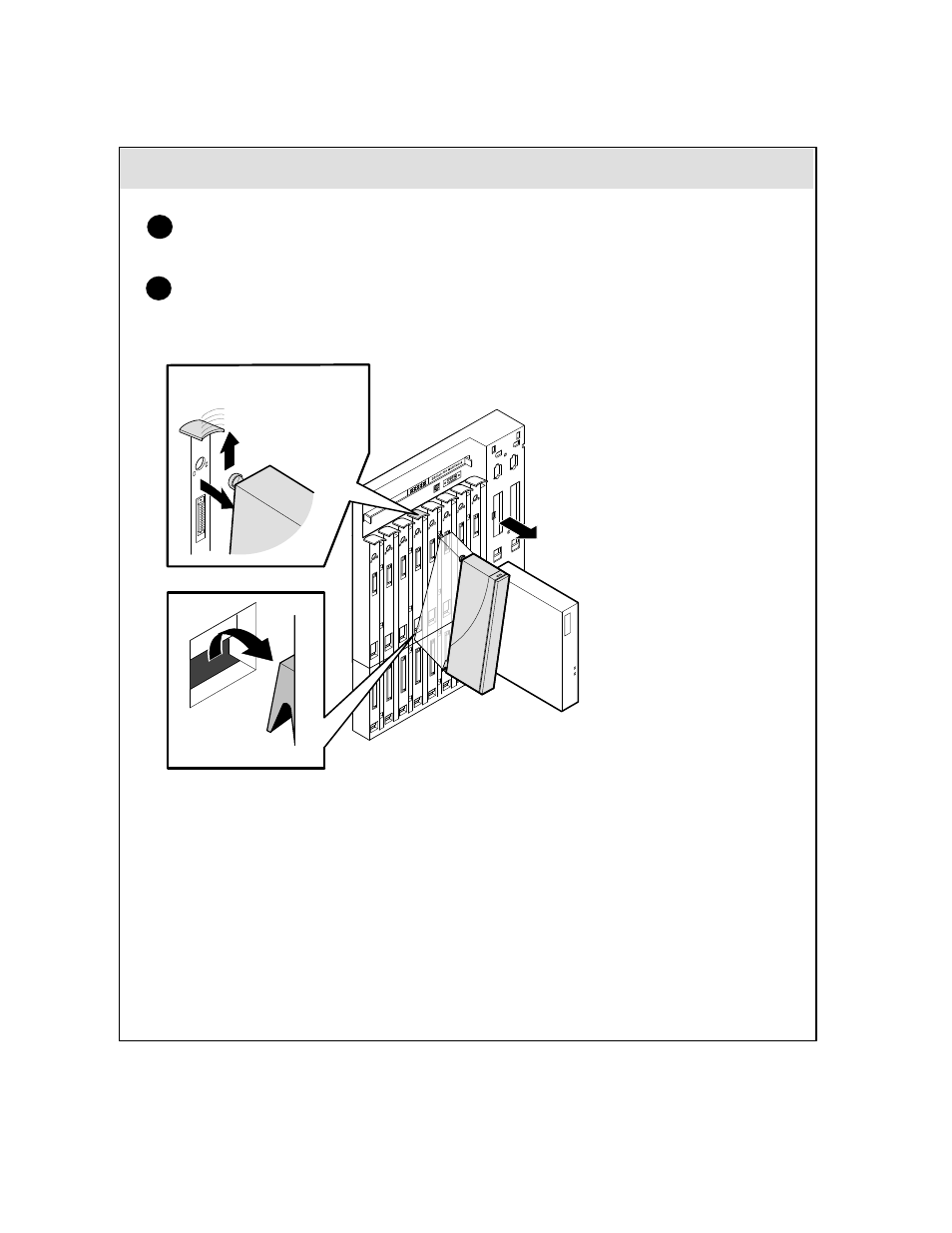

a. Lift up the Release lever on the
hub.
b. Pivot the MAU back on its
bottom mounting tab until it
disengages from the hub.
DECmau 900TL 9
Note:
When you remove a MAU from the
hub, do not turn off the hub power.
Remove the MAU from the hub.
1
2
Disconnect the station connector cables from the MAU.
The release lever is
lifted and clicks
back into place
as the module
is removed.
LKG–8144-93I
Mounting
tab
