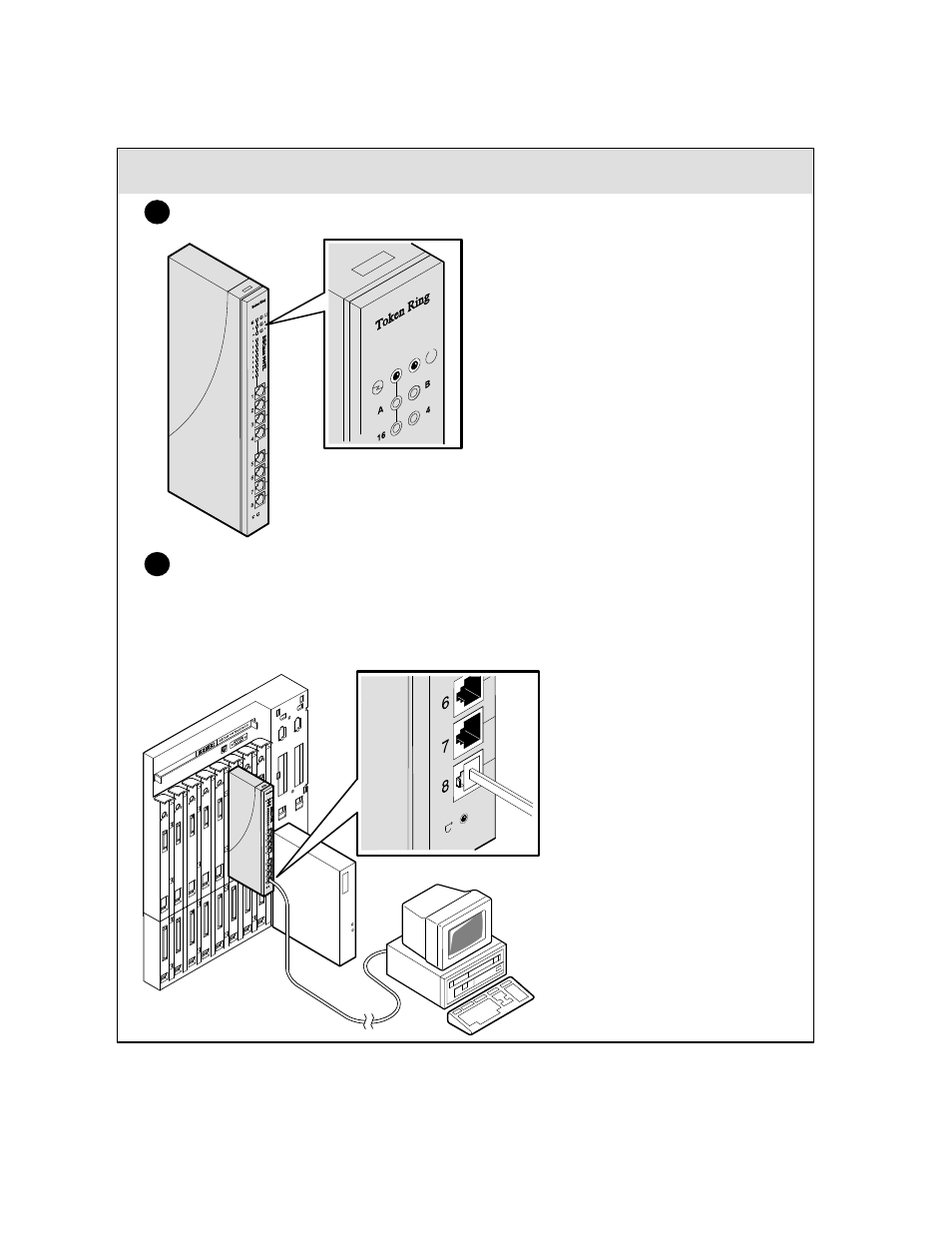

Connect station cables to any
available lobe connector on the
MAU. For 150-ohm applications,
you also need an impedence
matching transformer cable
(Digital part number BN26T-03).
Connect station cables.
4
PK–02570–IL
Installing a MAU in a DEChub 900 MultiSwitch (continued)
6
DECmau 900TL
Verify power.
3
With power on in the hub, verify that the
Power and Module OK LEDs are on.
LKG–8141-93I
Module installation for a
DEChub 900 MultiSwitch
is complete.
LKG–8140-93I
