PAGE 9
NAILER
FEMALE
QUICK
COUPLER
MALE
QUICK
CONNECTOR
OILER FILTER

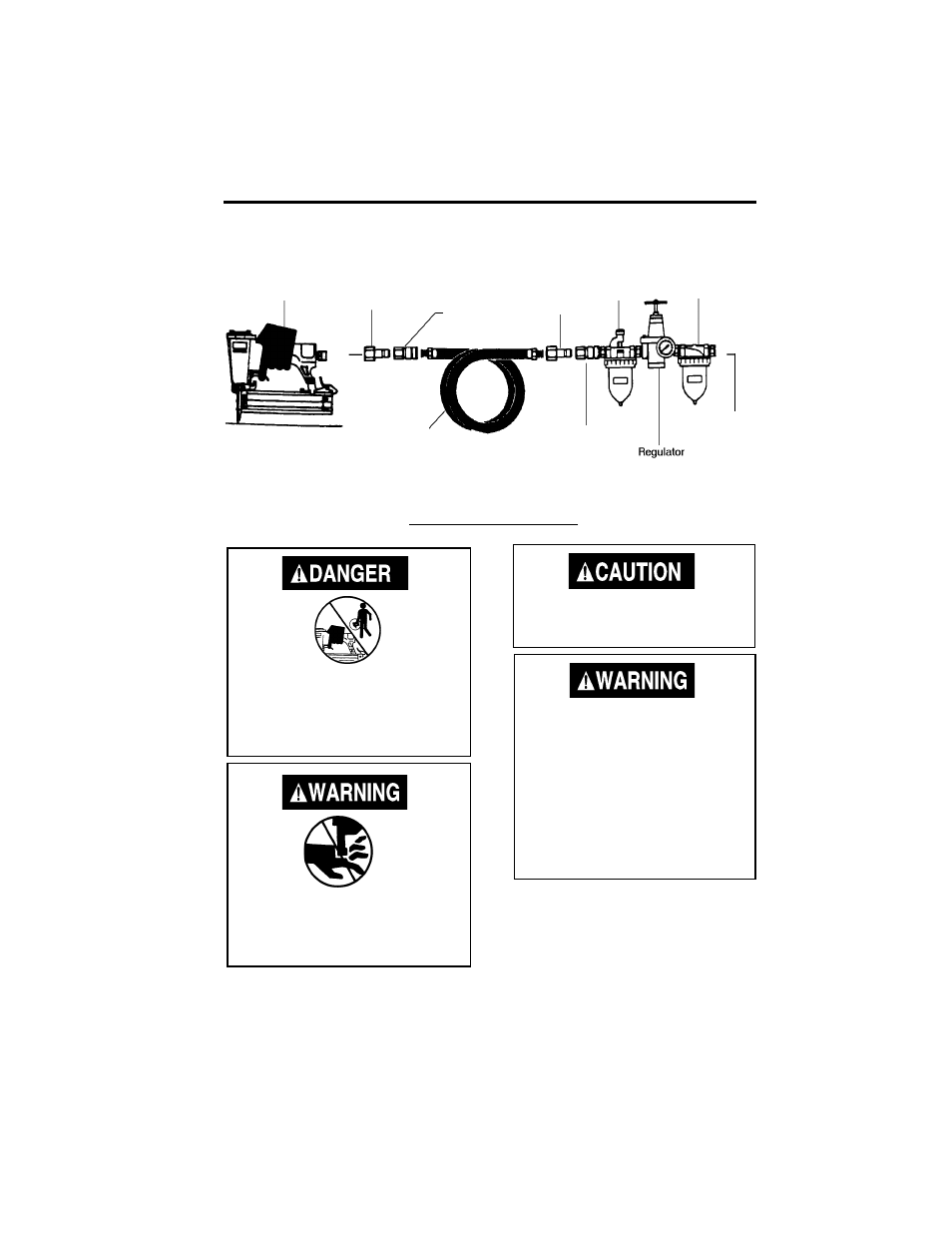

RECOMMENDED HOOK-UP
The following illustration shows the proper hook-up which will help
prolong the life of the Tool.
AIR
COMPRESSOR
AIR
HOSE
(3/8" I.D.)
FEMALE
QUICK
COUPLER
MALE
QUICK
CONNECTOR
(Supplied with Tool)
Never keep the trigger pulled on contact
trip tools when carrying or holding the
tool. Death or a serious puncture wound
could occur if the contact trip bumps
something or someone.
Do not hold the tool against the work
surface with extra force. Allow the tool
to drive the fastener.
Do not use the contact trip mechanism
as a means of discharging a fastener
because:
1. It could result in personal injury
2. It could result in an accidential
release of a fastener.
3. It may cause damage to the
mechanism.
4. It could result in improper place-
ment of fastener in work piece.
Keep your hands and body away from
the fastener discharge area of the tool.
Serious personal injury or property dam-
age could occur. CONTACT TRIP SAFETY
MECHANISM
Your Nailer/Stapler is a contact trip oper-
ated tool. When the operator depresses
the contact trip safety mechanism against
the work surface and then pulls the trigger,
a fastener will be driven.
CONTACT TRIP SAFETY MECHANISM
2X4 CONTRACTOR SERIES
