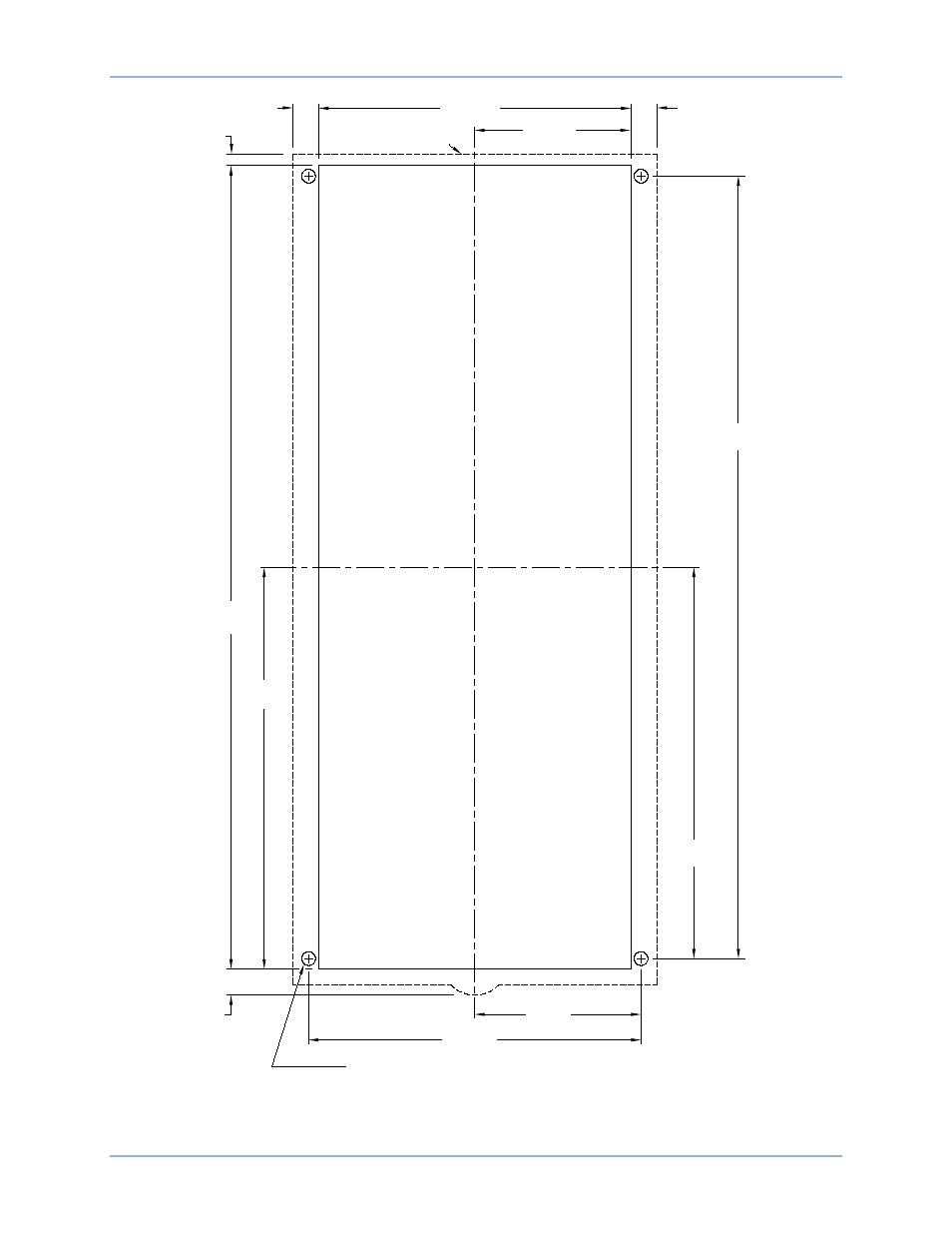

Figure 18. Panel Cutting/Drilling, Semi-Flush, M1 Case

3.03 (77)

6.06 (154)

0.25 (6) diameter, 4 places

CL

Cut-Out

0.575

(15)

14.63

(371.5)

0.552

(14)

5.69 (144.5)

Outer Edge of Cover

0.480

(12)

14.25

(362.1)

7.13

(181.0)

0.480

(12)

P0072-21

7.31

(185.7)

2.84 (72.1)
