10
ASSEMBLY

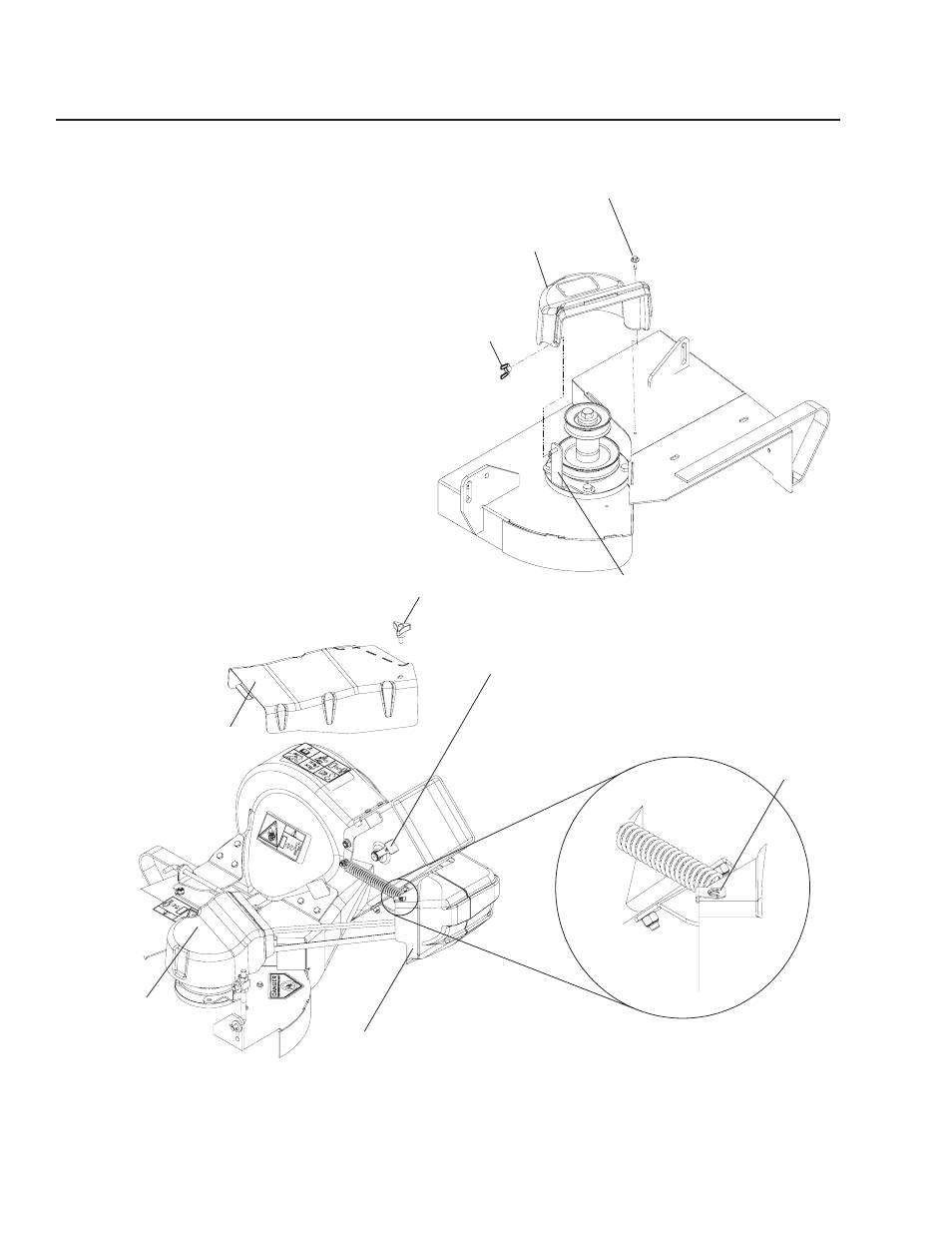

BELT COVER TAB
4 INSTALLING BELT COVERS
RETAINER
KNOB
OUTER PULLEY COVER
DECK BELT SHIELD
MIDDLE CHUTE LATCH
DECK BELT SHIELD
WING
NUT
TAP SCREW
BELT SHIELD STANDOFF
1. Place deck belt shield over spindle, aligning hole
with bolt on belt shield standoff.
2. Attach with wing nut to standoff and use tap
screw from kit to attach the other side of the belt
shield to the deck.
3. Place retainer on the outer pulley cover.
4. Align the tab end of the belt cover into the slot
on the deck belt shield and the other end over
the end of the outer pulley cover.
5. Secure with knob.
