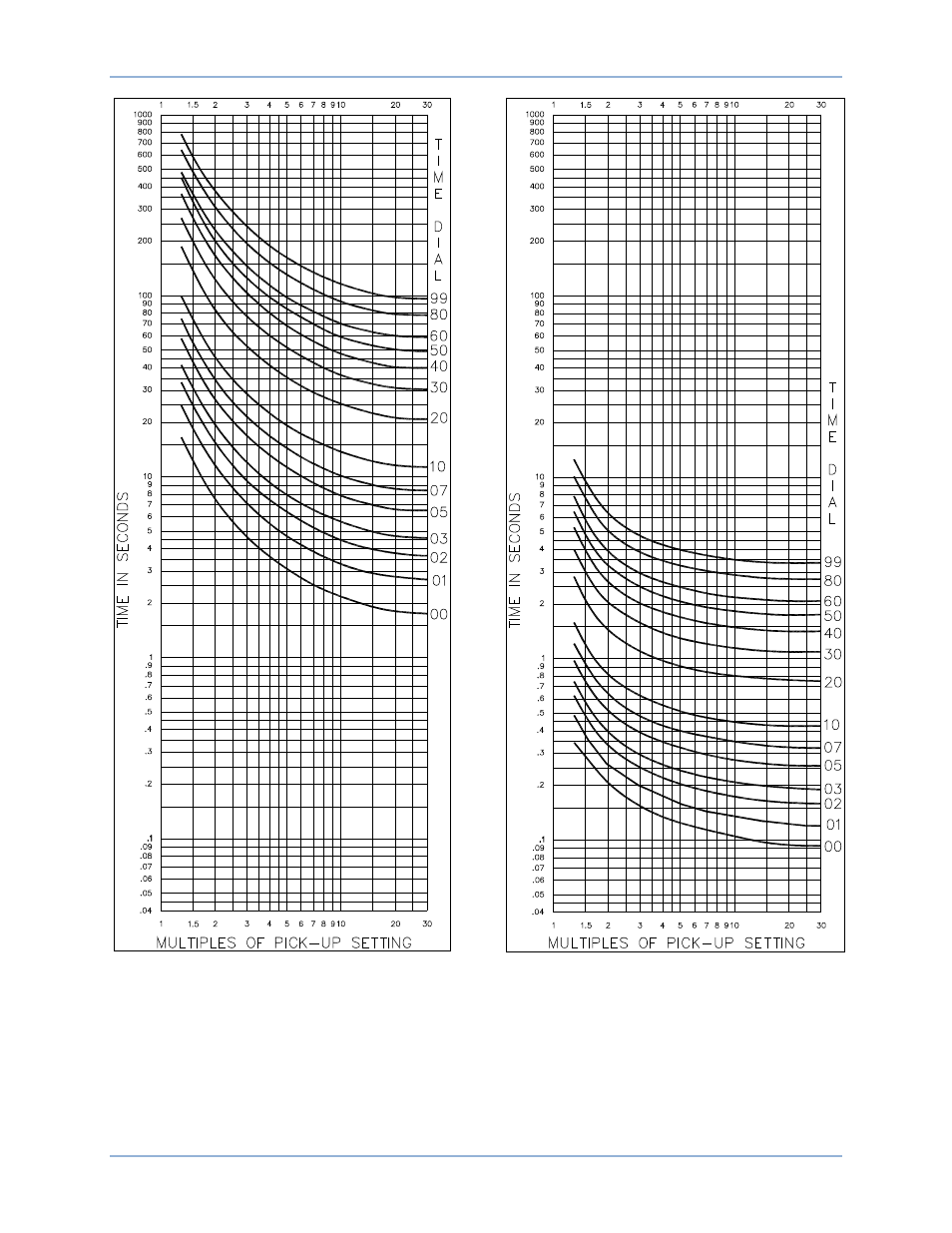

Figure 79. Timing Type B2, Long Inverse with
Integrated Algorithm and Extended Timing
Figure 80. Timing Type B3, Definite Time
with Integrated Algorithm
P
0
0
4
9
-4
2
P
0
0
4
9
-4
3
BE1-51/27C Time Overcurrent Characteristic Curves
